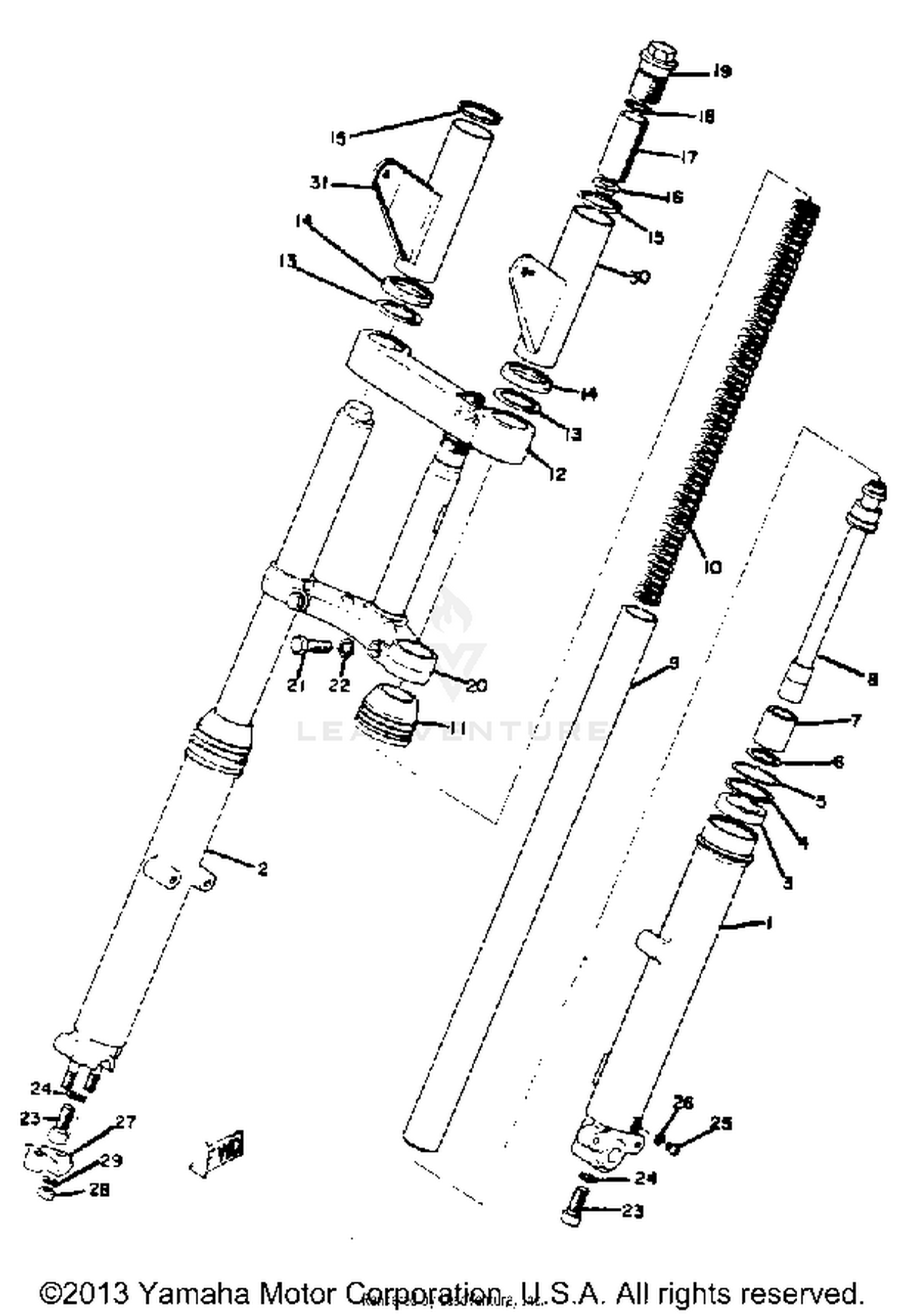

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
361-23101-50-00
|
$299.99 | ||
|
Unavailable |
|||
|
#
TUBE, OUTER 1
361-23126-50-00
|
$101.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 2
361-23136-50-00
|
$106.99 | ||
|
Unavailable |
|||
|
#3
OIL SEAL
278-23145-51-00
Superseded by 584-23145-50-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, OIL SEAL
214-23146-00-00
|
$7.48 | ||
|
Unavailable |
|||
|
#5
CLIP, OIL SEAL
214-23156-00-00
|
$6.68 | ||
|
Unavailable |
|||
|
#6
CIRCLIP, INNER
93450-30033-00
|
$5.49 | ||
|
Unavailable |
|||
|
#7
PISTON, FRONT FORK
278-23171-50-00
|
$9.28 | ||
|
Unavailable |
|||
|
#8
CYLINDER, FRTFRK
278-23170-50-00
|
$74.24 | ||
|
Unavailable |
|||
|
#9
TUBE, INNER 1
351-23124-50-00
|
$101.99 | ||
|
Unavailable |
|||
|
#10
SPRING, FRONT FORK
278-23141-50-00
|
$20.34 | ||
|
Unavailable |
|||
|
#11
SEAL, DUST
278-23144-50-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, OUTER 1
361-23122-51-00
|
$19.72 | ||
|
Unavailable |
|||
|
#13
GASKET (LAMP STAY)
291-23163-61-00
|
$7.99 | ||
|
Unavailable |
|||
|
#14
GUIDE, COVER LOWER
447-23116-52-00
|
$24.99 | ||
|
Unavailable |
|||
|
#15
GUIDE, COVER UPPER
2R8-23115-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#16
SEAT, SPRING UPPER
278-23142-50-00
|
$8.99 | ||
|
Unavailable |
|||
|
#17
SPACER
291-23118-60-00
|
$8.68 | ||
|
Unavailable |
|||
|
#18
GASKET
214-23114-00-00
|
$6.48 | ||
|
Unavailable |
|||
|
#19
BOLT, CAP
291-23111-60-00
|
$43.24 | ||
|
Unavailable |
|||
|
#20
UNDER BRACKET
361-23340-50-33
|
$102.99 | ||
|
Unavailable |
|||
|
#21
BOLT 1
278-23346-50-00
|
$3.96 | ||
|
Unavailable |
|||
|
#22
WASHER, SPRING
92990-10100-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET
509-23158-L0-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOLDER, AXLE
278-23167-50-00
|
$18.66 | ||
|
Unavailable |
|||
|
#28
NUT
95333-08600-00
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER, UPPER 1
361-23121-50-F2
|
$36.60 | ||
|
Unavailable |
|||
|
#
COVER, UPPER 1
361-23121-50-N3
|
$34.41 | ||
|
Unavailable |
|||
|
#31
COVER, UPPER 2
361-23131-50-F2
|
$36.60 | ||
|
Unavailable |
|||
|
#
COVER, UPPER 2
361-23131-50-N3
|
$16.25 | ||
|
Unavailable |
|||
