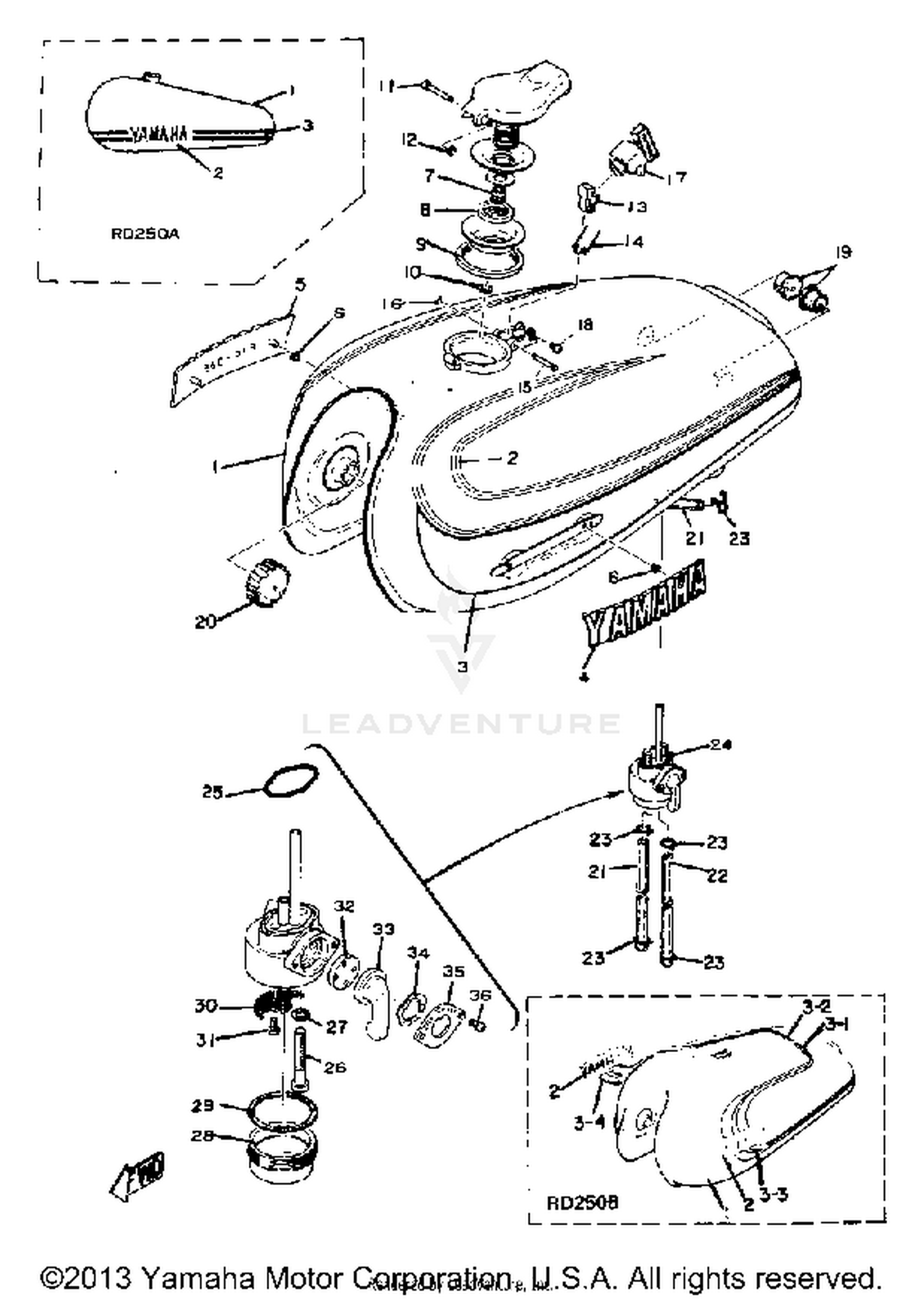

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAP ASSEMBLY
341-24653-00-00
|
$36.48 | ||
|
Unavailable |
|||
|
#
FUEL TANK
360-24110-01-X4
|
$215.99 | ||
|
Unavailable |
|||
|
#
FUEL TANK
360-24110-20-02
|
$203.99 | ||
|
Unavailable |
|||
|
#
FUEL TANK
360-24110-20-04
|
$227.99 | ||
|
Unavailable |
|||
|
#
GRAPHIC, FUEL TNK 7
361-24254-20-00
|
$12.52 | ||
|
Unavailable |
|||
|
#2
EMBLEM, YAMAHA
99224-00035-00
Superseded by 99244-00140-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#
GRAPHIC, FUEL TNK 8
361-24255-20-00
|
$7.49 | ||
|
Unavailable |
|||
|
#
GRAPHIC, FUEL TNK 2
360-24245-00-00
|
$19.08 | ||
|
Unavailable |
|||
|
#
EMBLEM, YAMAHA
322-24161-00-00
Superseded by 99221-00140-00
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#
GRAPHIC, FUEL TNK 1
360-24244-00-00
|
$13.78 | ||
|
Unavailable |
|||
|
#3
GRPHC, FUEL TANK 11
360-24258-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#
GRAPHIC, FUEL TNK 3
360-24246-00-00
|
$13.78 | ||
|
Unavailable |
|||
|
#
GRAPHIC, FUEL TNK 9
361-24256-20-00
|
$7.49 | ||
|
Unavailable |
|||
|
#
GRAPHIC, FUEL TNK 4
360-24247-00-00
|
$12.72 | ||
|
Unavailable |
|||
|
#4
EMBLEM 1
360-24161-01-00
|
$25.99 | ||
|
Unavailable |
|||
|
#
GRPHC, FUEL TANK 10
361-24257-20-00
|
$7.26 | ||
|
Unavailable |
|||
|
#5
EMBLEM 2
360-24162-01-00
|
$25.99 | ||
|
Unavailable |
|||
|
#6
NUT, SPRING
90183-03006-00
|
$7.49 | ||
|
Unavailable |
|||
|
#7
GASKET, CAP 2
308-24642-00-00
|
$8.06 | ||
|
Unavailable |
|||
|
#8
GASKET, CAP 1
308-24641-00-00
|
$6.44 | ||
|
Unavailable |
|||
|
#9
GASKET, CAP
341-24612-01-00
|
$12.49 | ||
|
Unavailable |
|||
|
#10
CIRCLIP
99009-06600-00
Superseded by 99001-06600-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, SPEC''L SHAPE (308-24623-0
90249-03087-00
|
$4.40 | ||
|
Unavailable |
|||
|
#12
CIRCLIP
93430-02001-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOOK
341-24628-00-00
|
$7.52 | ||
|
Unavailable |
|||
|
#14
SPRING, TORSION
90508-07235-00
|
$5.49 | ||
|
Unavailable |
|||
|
#15
PIN, SPEC''L SHAPE (308-24624-0
90249-03088-00
|
$3.65 | ||
|
Unavailable |
|||
|
#16
CIRCLIP
93430-02001-00
|
$7.99 | ||
|
Unavailable |
|||
|
#17
CAP ASSEMBLY
341-24602-01-00
|
$32.70 | ||
|
Unavailable |
|||
|
#18
SCREW, PAN HEAD
92503-04020-00
|
$1.00 | ||
|
Unavailable |
|||
|
#19
DAMPER, LOCATING 2
122-24182-01-00
|
$7.49 | ||
|
Unavailable |
|||
|
#20
DAMPER, LOCATING 1
278-24181-00-00
Superseded by 3TB-24181-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIPE 5
90445-09094-00
Superseded by 5RB-24315-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIPE 5
90445-09089-00
Superseded by 5RB-24315-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#23
CLIP
90467-08003-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
FUEL COCK ASSEMBLY 1
360-24500-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#25
GASKET
168-24512-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN HEAD
98580-06035-00
Superseded by 97885-06035-00
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#27
GASKET
90430-06013-00
Superseded by 90430-06218-00
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#28
CUP, FILTER
360-24521-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#29
GASKET
168-24522-00-00
|
$6.64 | ||
|
Unavailable |
|||
|
#30
NET, FILTER 2
168-24515-00-00
|
$6.26 | ||
|
Unavailable |
|||
|
#31
SCREW, PAN HEAD
98580-03008-00
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#32
GASKET
137-24523-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
LEVER, COCK
168-24524-00-00
|
$7.32 | ||
|
Unavailable |
|||
|
#34
WASHER, WAVE
132-24518-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
PLATE, LVR FITTING
132-24525-01-00
|
$3.30 | ||
|
Unavailable |
|||
|
#36
SCREW, PAN HEAD
98580-03008-00
|
$3.48 | ||
|
Unavailable |
|||
