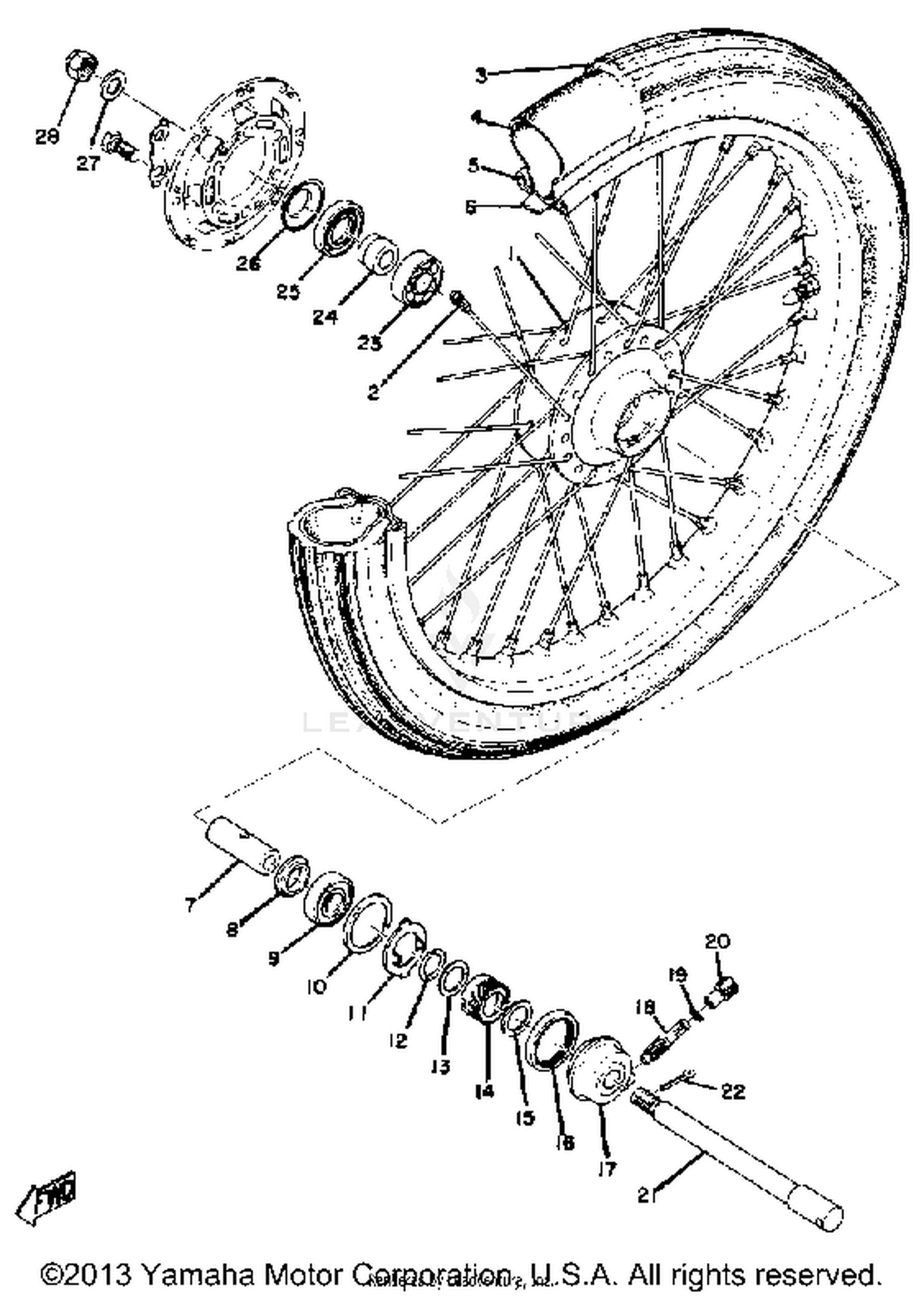

Front Wheel Rd250b Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
351-25111-00-00
|
$64.22 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, FRONT
351-25104-00-00
|
$118.99 | ||
|
Unavailable |
|||
|
#
SPOKE SET, OUTER 1
351-25197-90-00
|
$4.56 | ||
|
Unavailable |
|||
|
#
SPOKE SET, INNER 1
351-25196-90-00
|
$4.56 | ||
|
Unavailable |
|||
|
#3
YOKO 300S18 Y986
94130-18363-00
|
$50.99 | ||
|
Unavailable |
|||
|
#4
TUBE
94230-18084-00
Superseded by 94227-18195-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RIM 1.60X18
94416-18068-00
|
$38.68 | ||
|
Unavailable |
|||
|
#6
BAND, RIM (2.50-18)
94325-18043-00
Superseded by 94340-18086-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER
90560-17125-00
|
$9.99 | ||
|
Unavailable |
|||
|
#8
FLANGE, SPACER
146-25315-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93306-30309-00
Superseded by 93306-30317-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
RETAINER, CLUTCH
341-25846-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLUTCH, METER
341-25149-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
RING, STOP
341-25137-00-00
|
$2.50 | ||
|
Unavailable |
|||
|
#13
WASHER, PLATE (341-25147-00)
90201-25286-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, DRIVE
351-25135-00-00
|
$11.24 | ||
|
Unavailable |
|||
|
#15
WASHER, PLATE
90201-25490-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL
93105-45017-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR UNIT ASSY
341-25190-01-00
Superseded by 4TR-25190-20-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, METER
351-25138-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#19
SHIM, ROD
102-18416-00-00
|
$4.65 | ||
|
Unavailable |
|||
|
#20
BUSH
306-25136-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#21
AXLE, WHEEL
351-25181-10-00
|
$46.99 | ||
|
Unavailable |
|||
|
#22
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING (B6303)
93306-30302-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-17433-00
|
$16.49 | ||
|
Unavailable |
|||
|
#25
OIL SEAL
93102-28022-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER, HUB DUST
341-25118-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLAIN
92990-14200-00
|
$4.94 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
