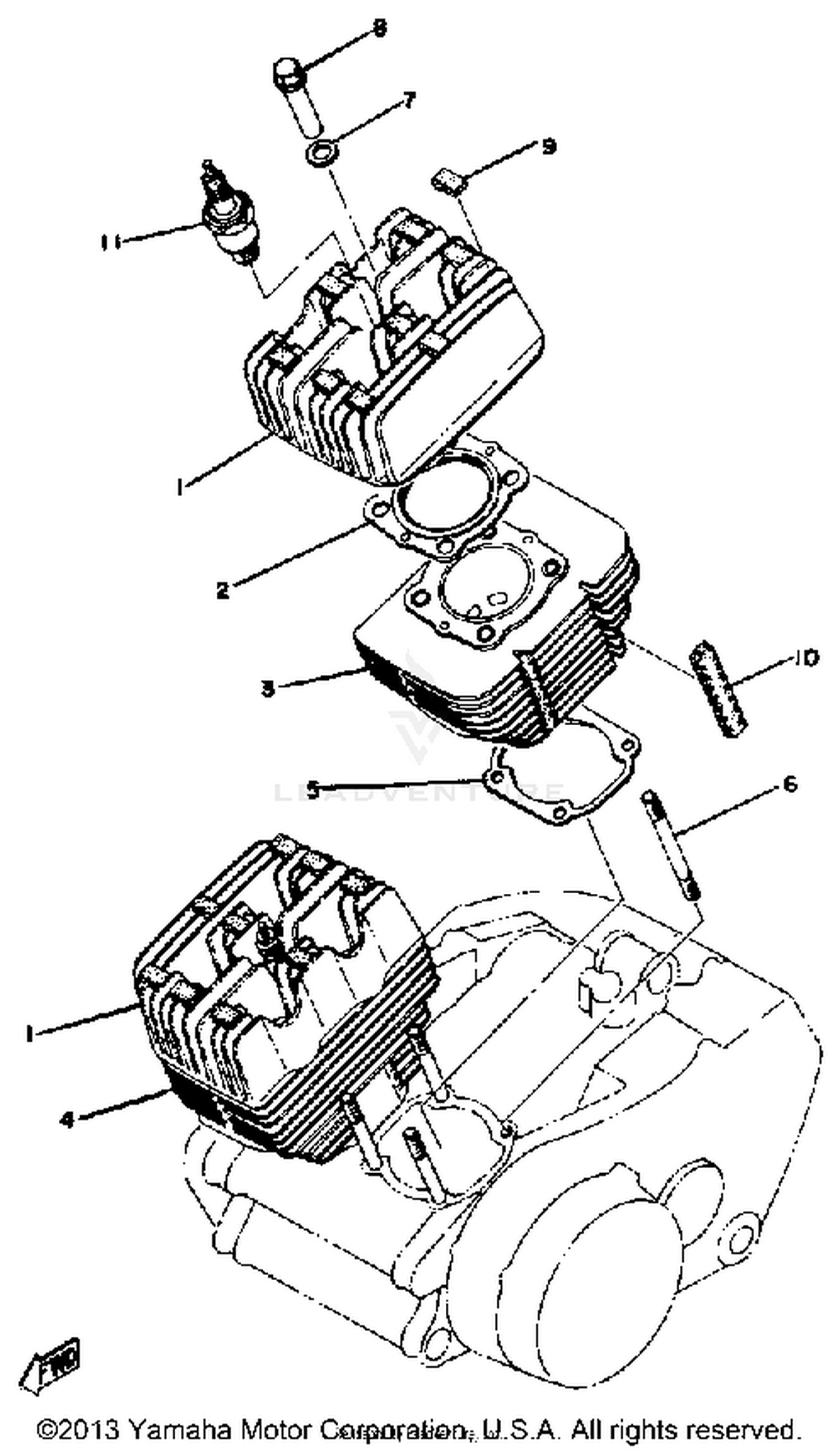

Cylinder Head - Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD, CYLINDER 1
1A1-11111-00-00
|
$176.99 | ||
|
Unavailable |
|||
|
#2
GASKET, CYLINDER HEAD 1
1A1-11181-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#3
CYLINDER 1
1A1-11311-00-00
|
$228.99 | ||
|
Unavailable |
|||
|
#4
CYLINDER 2
1A1-11321-00-00
|
$269.99 | ||
|
Unavailable |
|||
|
#5
GASKET,CYLINDER
278-11351-01-00
Superseded by 278-11351-11-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, STUD
90116-08232-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#
GSKT KIT RD400C/D
1A1-00000-20-00
|
$12.97 | ||
|
Unavailable |
|||
|
#7
WASHER, PLATE
90201-12362-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, SPEC''L SHAPE
90179-08026-00
|
$6.49 | ||
|
Unavailable |
|||
|
#9
ABSORBER 1
521-11161-01-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ABSORBER 2 (1A0-11162-01)
1A0-11162-02-00
|
$7.99 | ||
|
Unavailable |
|||
|
#11
BR8ES NGK SCREW TOP
NGK-B8ES0-00-00
Superseded by BR8-ES000-00-00
|
$3.49 | ||
|
Unavailable |
|||
