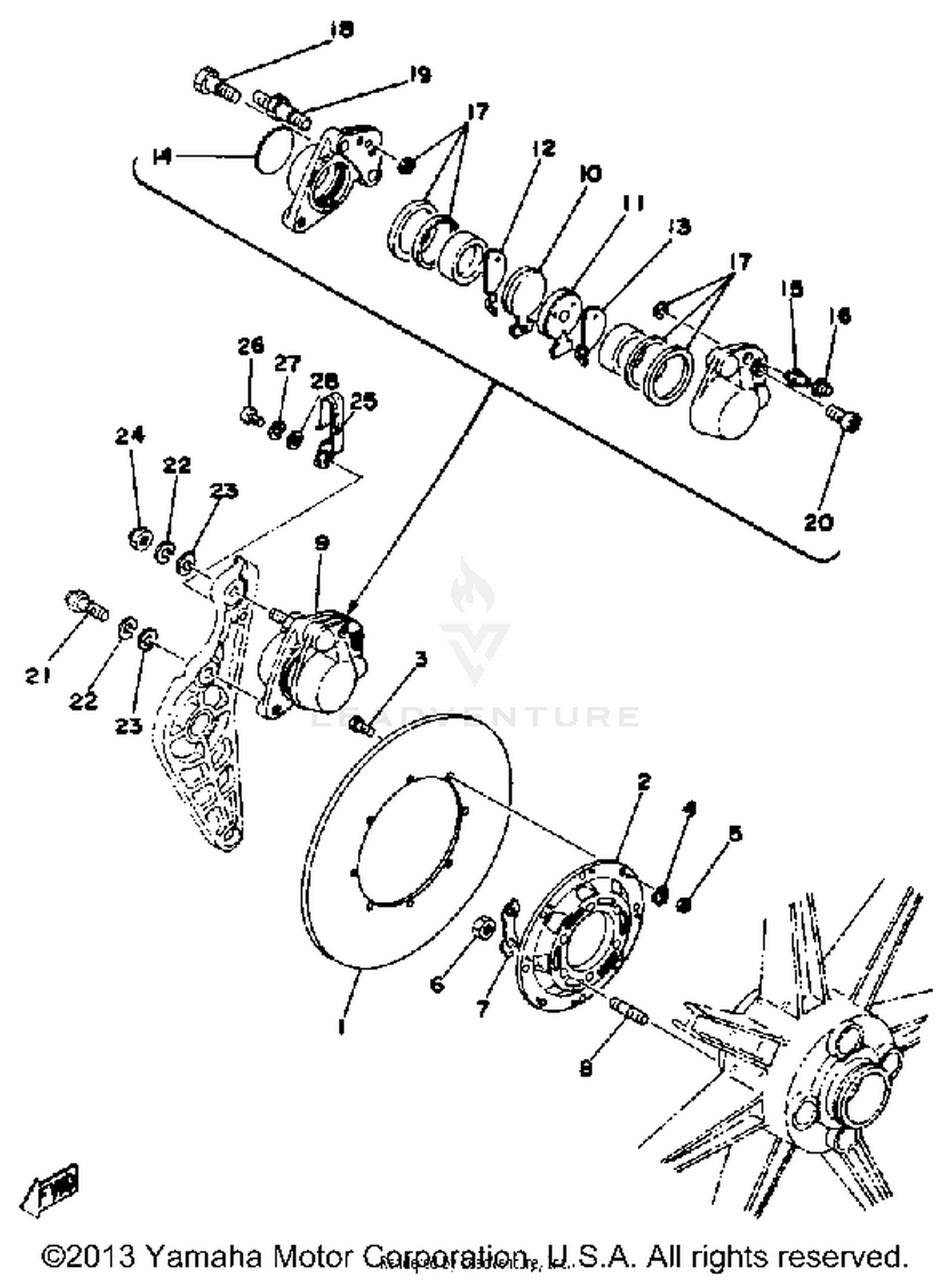

Rear Disc Brake - Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, BRAKE
351-25831-01-00
|
$138.99 | ||
|
Unavailable |
|||
|
#2
BRACKET, DISC
351-25832-00-00
|
$53.90 | ||
|
Unavailable |
|||
|
#3
BOLT
90109-06018-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, LOCK (306-25834-00)
90215-06106-00
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
90170-08158-00
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
341-25412-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, STUD
90116-08218-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BOLT, STUD
90116-08242-00
|
$1.49 | ||
|
Unavailable |
|||
|
#9
CALIPER ASSEMBLY
1A1-25810-51-00
|
$233.99 | ||
|
Unavailable |
|||
|
#10
BRAKE PAD KIT, FRNT
1A1-W0045-00-00
|
$53.99 | ||
|
Unavailable |
|||
|
#12
SHIM, CALIPER
409-25827-50-00
|
$7.52 | ||
|
Unavailable |
|||
|
#13
SHIM, CALIPER (306-25828-02)
409-25828-50-00
|
$8.49 | ||
|
Unavailable |
|||
|
#14
EMBLEM, CALIPER
306-25829-00-00
|
$7.52 | ||
|
Unavailable |
|||
|
#15
SCREW, BLEED
306-25824-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#16
CAP
306-25825-01-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CALIPER SEAL KIT (856-20000-5
856-W0047-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT 1
306-25821-01-00
|
$14.84 | ||
|
Unavailable |
|||
|
#19
BOLT 2
306-25822-01-00
|
$19.72 | ||
|
Unavailable |
|||
|
#20
BOLT 3
306-25826-01-00
|
$7.06 | ||
|
Unavailable |
|||
|
#21
BOLT
90109-10041-00
|
$2.80 | ||
|
Unavailable |
|||
|
#22
WASHER, SPRING
92990-10100-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
92990-10600-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, CROWN
90176-10013-00
Superseded by 90176-10073-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#
HOLDER, BRKE HOSE 1
1A1-25875-02-00
|
$4.15 | ||
|
Unavailable |
|||
|
#26
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLAIN
92990-06200-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
