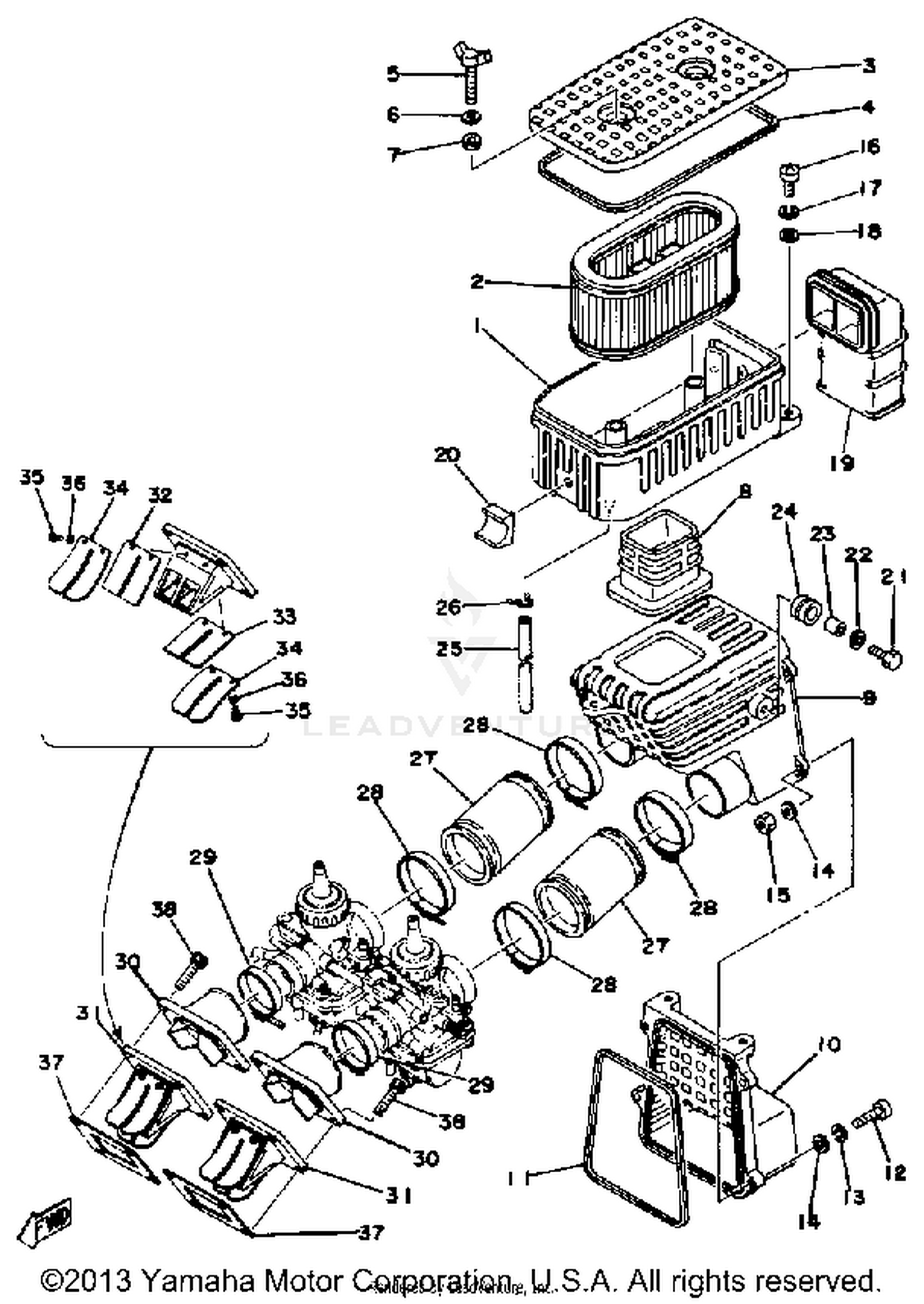

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CASE, AIR CLEANER 1
1A0-14411-00-00
|
$17.80 | ||
|
Unavailable |
|||
|
#2
ELEMENT, AIR CLNR
1A0-14451-01-00
|
$38.99 | ||
|
Unavailable |
|||
|
#3
CAP, CLEANER CASE 1
1A0-14412-01-00
|
$28.99 | ||
|
Unavailable |
|||
|
#4
SEAL
4L0-14457-01-00
Superseded by 51Y-14462-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, WING
90122-06002-00
Superseded by 90122-06010-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLAIN
92990-06200-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90202-05101-00
|
$1.54 | ||
|
Unavailable |
|||
|
#8
PIPE
2R9-14419-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#9
SILENCER, INTAKE 1
1A0-14431-00-00
|
$17.80 | ||
|
Unavailable |
|||
|
#10
SILENCER, INTAKE 2
1A0-14441-00-00
|
$11.46 | ||
|
Unavailable |
|||
|
#11
SEAL
4L0-14457-01-00
Superseded by 51Y-14462-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#12
SCREW, PAN HEAD
98503-05025-00
Superseded by 98580-05525-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
95380-05600-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN HEAD
98580-06018-00
Superseded by 97880-06018-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLAIN
92990-06200-00
|
$3.70 | ||
|
Unavailable |
|||
|
#19
DUCT
3J7-14437-00-00
|
$4.80 | ||
|
Unavailable |
|||
|
#20
GROMMET
1A0-14435-01-00
|
$1.98 | ||
|
Unavailable |
|||
|
#21
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-062A8-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR
90387-07390-00
Superseded by 90387-07020-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
GROMMET
90480-14023-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIPE 5
90445-09078-00
Superseded by 5RB-24315-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP
90467-08003-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
JOINT, AIR CLNR 1
1A0-14453-01-00
|
$22.99 | ||
|
Unavailable |
|||
|
#28
CLAMP, HOSE
90460-49058-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLAMP, HOSE
90460-43053-00
Superseded by 90460-43179-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
JOINT, CARBURETOR
345-13565-71-00
|
$172.99 | ||
|
Unavailable |
|||
|
#31
REED VALVE ASY
558-13610-00-00
Superseded by 345-13610-20-00
|
$228.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
REED, VALVE (401-13613-00)
2R9-13613-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#33
REED, VALVE
345-13613-70-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
STOPPER, REED VALVE
345-13616-70-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW, PAN HEAD
98580-03008-00
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, SPRING
92990-03100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
GASKET, VALVE SEAT
1A1-13621-01-00
Superseded by 87A-13621-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
