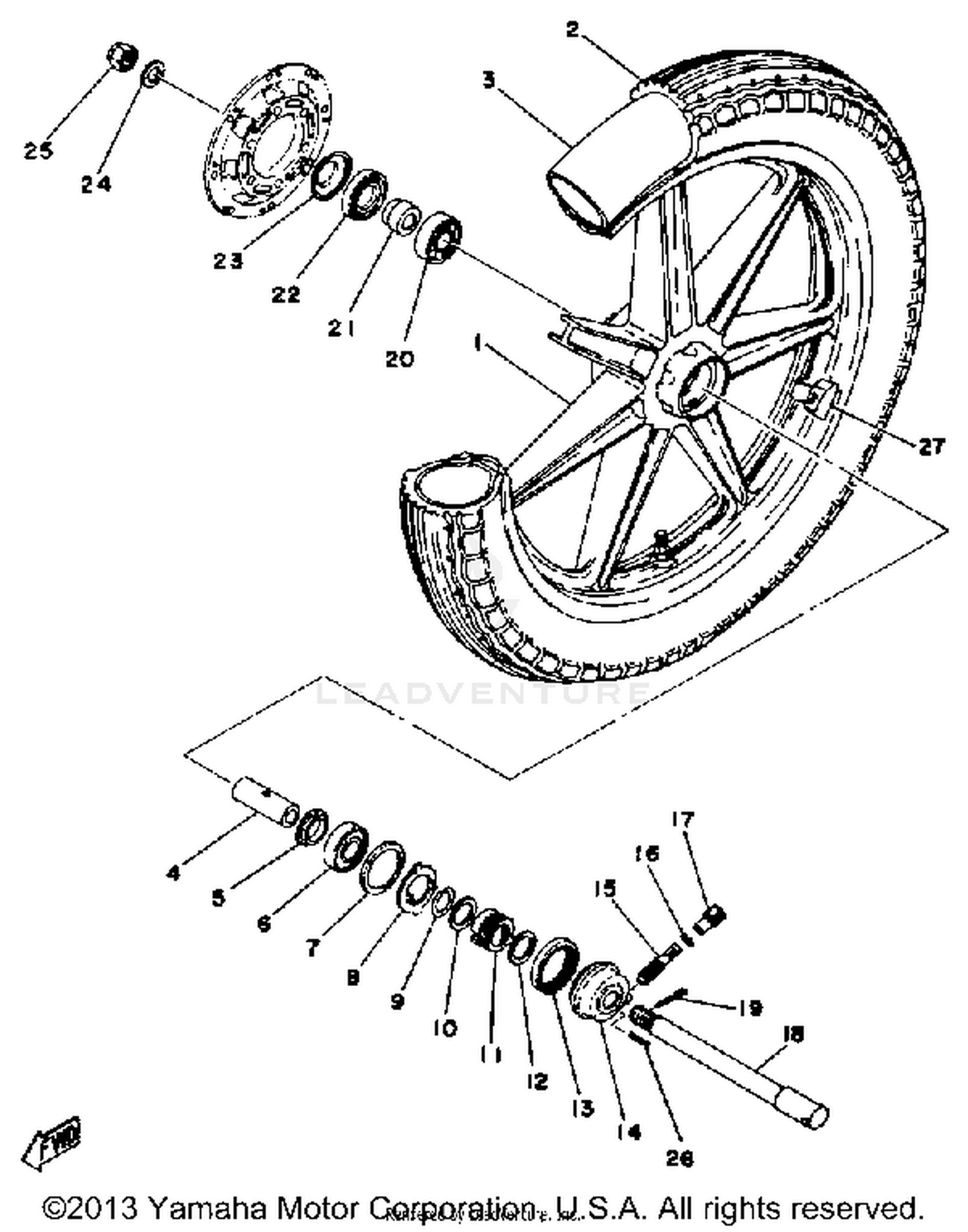

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, CAST FRONT
1A1-25168-00-00
|
$262.99 | ||
|
Unavailable |
|||
|
#2
325S18 Y984C 4PLY
94132-18348-00
|
$25.72 | ||
|
Unavailable |
|||
|
#3
TUBE
94230-18084-00
Superseded by 94227-18195-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER
90560-17125-00
|
$9.99 | ||
|
Unavailable |
|||
|
#5
FLANGE, SPACER
146-25315-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93306-30309-00
Superseded by 93306-30317-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
RETAINER, CLUTCH
341-25846-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLUTCH, METER
341-25149-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING, STOP
341-25137-00-00
|
$2.50 | ||
|
Unavailable |
|||
|
#10
WASHER, PLATE (341-25147-00)
90201-25286-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, DRIVE
341-25135-01-00
|
$56.99 | ||
|
Unavailable |
|||
|
#12
WASHER, PLATE
90201-25490-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL SEAL
93105-45017-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR UNIT ASSY
341-25190-01-00
Superseded by 4TR-25190-20-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, METER
306-25138-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#16
SHIM, ROD
102-18416-00-00
|
$4.65 | ||
|
Unavailable |
|||
|
#17
BUSH
306-25136-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#18
AXLE, WHEEL
351-25181-10-00
|
$46.99 | ||
|
Unavailable |
|||
|
#19
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING
93306-30309-00
Superseded by 93306-30317-00
|
$38.99 | ||
|
Unavailable |
|||
|
#21
COLLAR
90387-17433-00
|
$16.49 | ||
|
Unavailable |
|||
|
#22
OIL SEAL
93102-28022-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
COVER, HUB DUST
341-25118-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLAIN
92990-14200-00
|
$4.94 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, SPRING
91609-20014-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#27
BALANCER, WHEEL (10G)
1A1-25399-00-00
Superseded by 5MT-25398-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (10G)
1A1-25398-01-00
Superseded by 5MT-25398-00-00
|
$17.49 | ||
|
Unavailable |
|||
