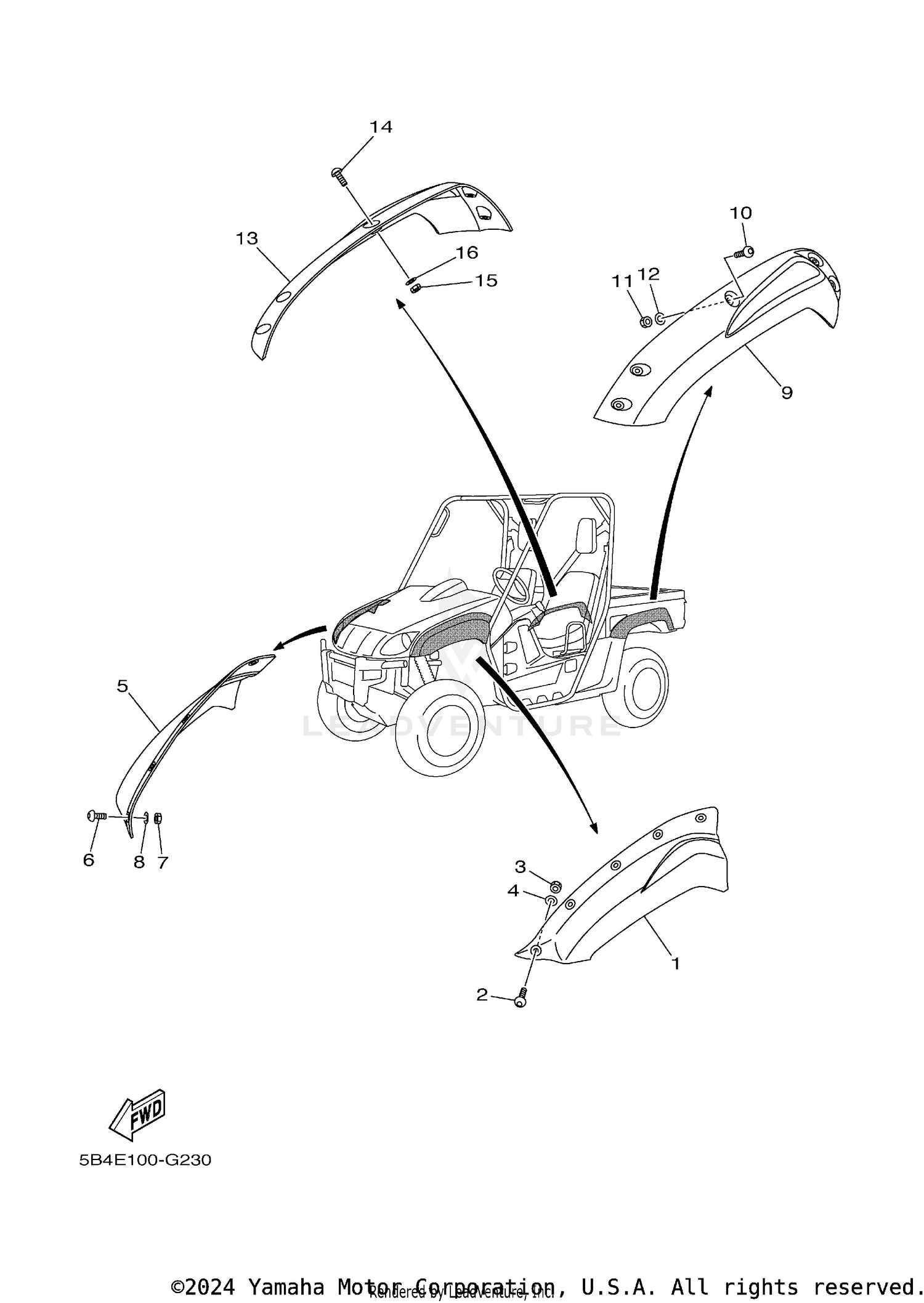

2009 Yamaha RHINO 700 FI AUTO 4X4 SPORT EDITION FENDER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, OVER
5B4-F1551-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, HEXAGON SOCKET HEAD
90110-06090-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, U
95602-06100-00
Superseded by 95617-06100-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-068M4-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
FENDER, OVER 2
5B4-F1555-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEXAGON SOCKET HEAD
90110-06090-00
|
$4.45 | ||
|
Unavailable |
|||
|
#7
NUT, U
95602-06100-00
Superseded by 95617-06100-00
|
$6.99 | ||
|
Unavailable |
|||
|
#8
WASHER, PLATE
90201-068M4-00
|
$1.95 | ||
|
Unavailable |
|||
|
#9
FENDER, OVER 3
5B4-F1559-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
90110-06090-00
|
$4.45 | ||
|
Unavailable |
|||
|
#11
NUT, U
95602-06100-00
Superseded by 95617-06100-00
|
$6.99 | ||
|
Unavailable |
|||
|
#12
WASHER, PLATE
90201-068M4-00
|
$1.95 | ||
|
Unavailable |
|||
|
#13
FENDER, OVER 4
5B4-F1560-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEXAGON SOCKET HEAD
90110-06090-00
|
$4.45 | ||
|
Unavailable |
|||
|
#15
NUT, U
95602-06100-00
Superseded by 95617-06100-00
|
$6.99 | ||
|
Unavailable |
|||
|
#16
WASHER, PLATE
90201-068M4-00
|
$1.95 | ||
|
Unavailable |
|||
