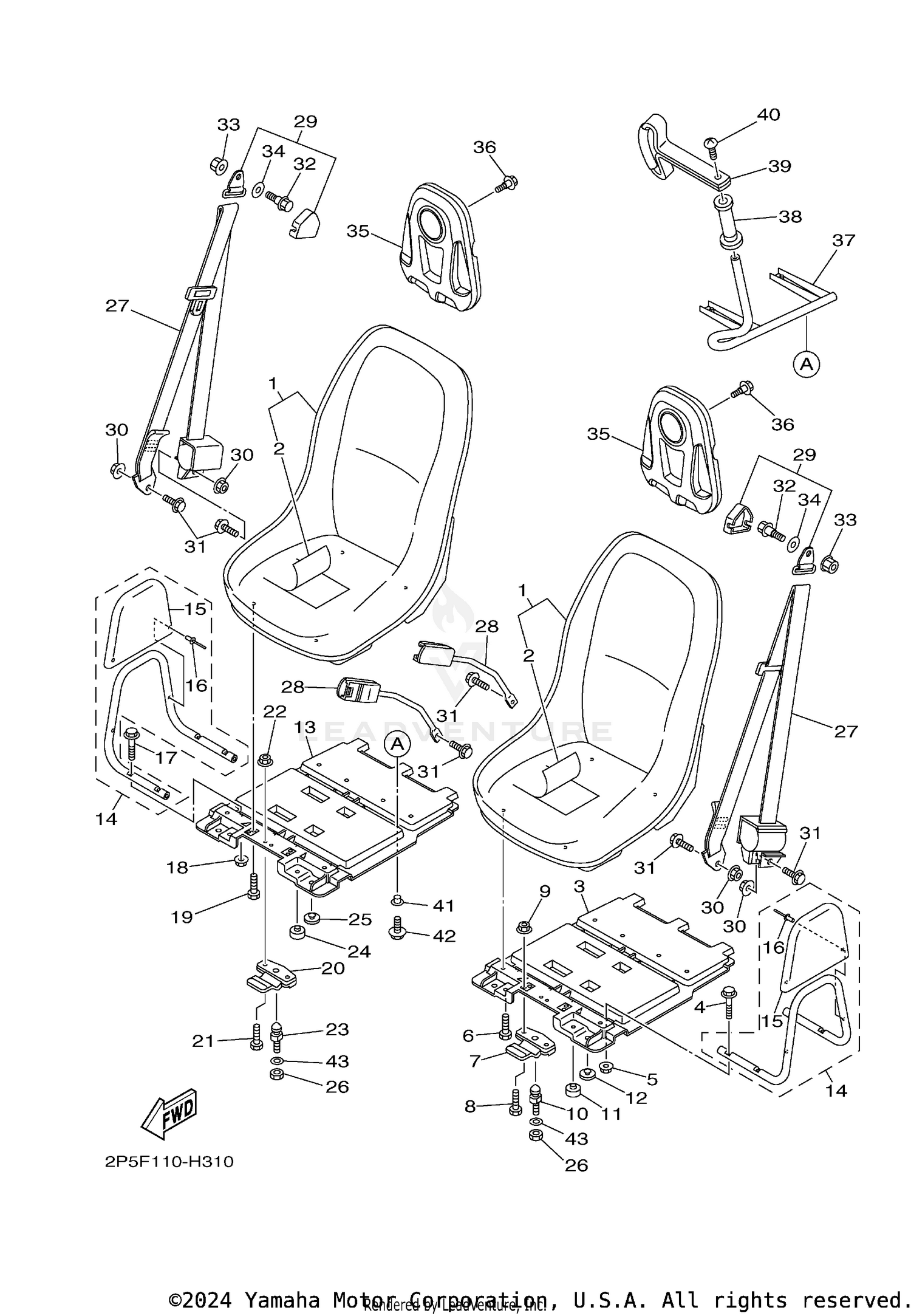

2009 Yamaha RHINO 700 FI AUTO 4X4 SPORT EDITION SEAT OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSY
5UG-F4710-20-00
|
$455.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAT COVER COMP.
5UG-F470F-20-00
|
$318.99 | ||
|
Unavailable |
|||
|
#3
BOTTOM PLATE COMP.
5UG-F470E-01-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95812-08030-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, SELF-LOCKING
95602-08200-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
95822-08020-00
Superseded by 95817-08020-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAT LOCK ASSY
F1B-U3850-02-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95822-06040-00
Superseded by 95817-06040-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, U FLANGE
95602-06200-00
Superseded by 95604-06200-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN
GH1-U3774-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER, SEAT
4XE-F4747-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PAD, BATTERY
371-82121-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOTTOM PLATE COMP.
5UG-F470E-01-00
|
$97.99 | ||
|
Unavailable |
|||
|
#14
ASSIST GRIP ASSY., 2
5B4-F470K-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER,2
5B4-F475X-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
RIVET, BLIND
90267-32806-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95812-08030-00
|
$3.55 | ||
|
Unavailable |
|||
|
#18
NUT, SELF-LOCKING
95602-08200-00
|
$2.99 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE
95822-08020-00
Superseded by 95817-08020-00
|
$7.99 | ||
|
Unavailable |
|||
|
#20
SEAT LOCK ASSY
F1B-U3850-02-00
|
$12.99 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE
95822-06040-00
Superseded by 95817-06040-00
|
$5.49 | ||
|
Unavailable |
|||
|
#22
NUT, U FLANGE
95602-06200-00
Superseded by 95604-06200-00
|
$6.99 | ||
|
Unavailable |
|||
|
#23
PIN
GH1-U3774-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#24
DAMPER, SEAT
4XE-F4747-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#25
PAD, BATTERY
371-82121-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#26
NUT, SELF-LOCKING
90185-10012-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SEAT BELT KIT
5UG-G6241-10-00
Superseded by 5UG-F47K0-09-00
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SEAT BELT KIT
5UG-G6242-10-00
Superseded by 5UG-F47K0-09-00
|
$219.99 | ||
|
Unavailable |
|||
|
#29
COVER
5UG-F4796-00-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, S/L FLANGE
95602-10200-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE
95812-10020-00
Superseded by 95817-10020-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, SPECIAL
5UG-F3394-00-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPEED NUT
5UG-F4735-01-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLATE
90201-11801-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
HEAD REST
5UG-F472L-50-00
|
$113.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT
90109-063F5-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
ASSIST, GRIP
5B4-F474A-00-00
|
$192.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
GRIP
5B4-F6241-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
HANDLE, SEAT
5B4-F4773-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
SCREW, BIND
98907-06020-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
COLLAR
90387-06210-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, FLANGE
90105-06831-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER, PLATE
90201-109U6-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
