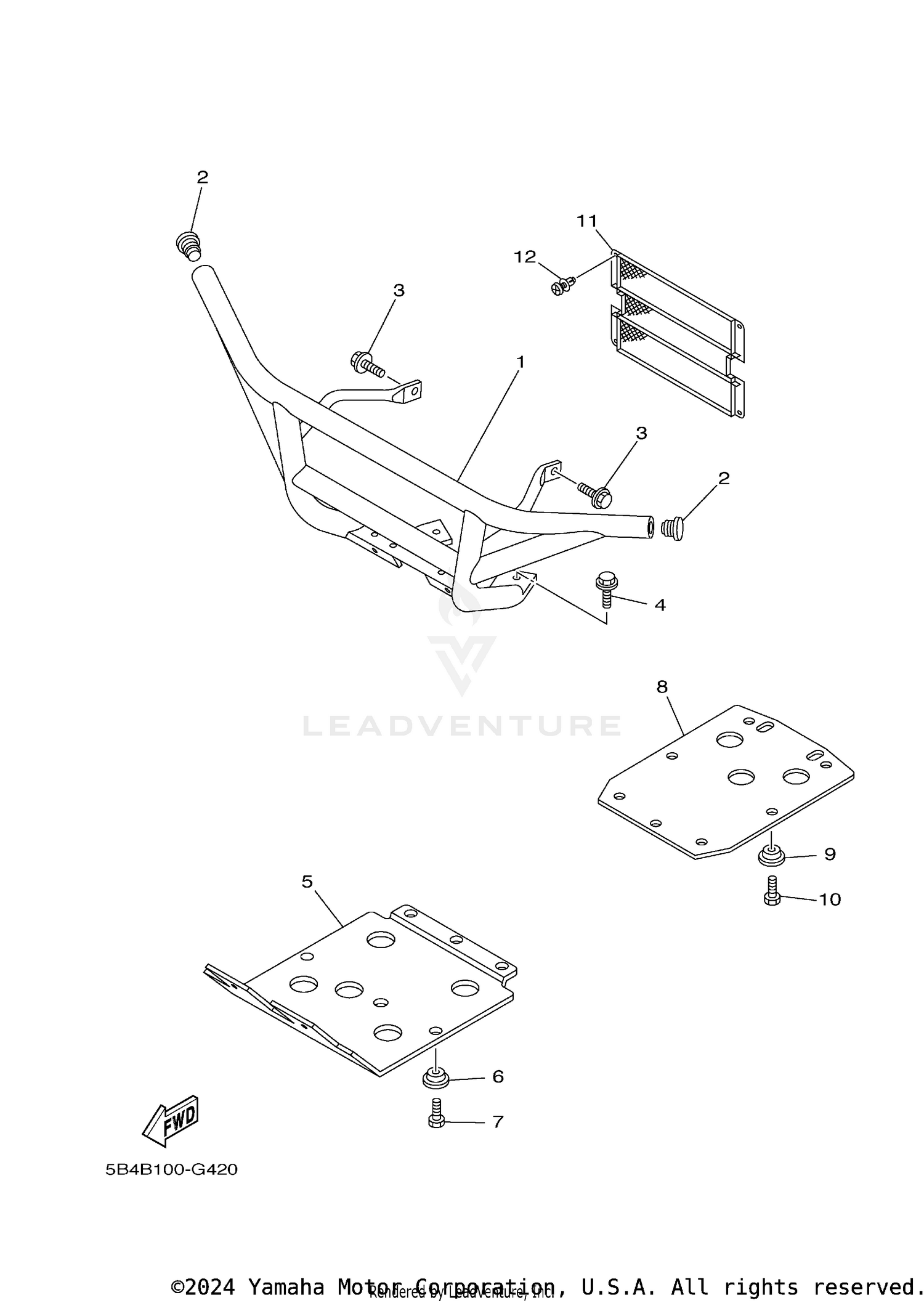

2009 Yamaha RHINO 700 FI AUTO 4X4 SPORT EDITION GUARD OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAR, CARRY FRONT
5UG-F845N-20-00
Superseded by 1RB-F845N-10-00
|
$420.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLUG
5UG-F2417-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
95812-10020-00
Superseded by 95817-10020-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95812-12025-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, UNDER
2P5-F8385-01-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER
5UG-F8329-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
90105-06832-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, UNDER 2
5UG-F8395-01-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER
5UG-F8329-01-00
|
$7.49 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE
90105-06832-00
|
$1.95 | ||
|
Unavailable |
|||
|
#11
LOUVER, 1
5UG-F2858-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
RIVET
5UG-F3483-00-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
