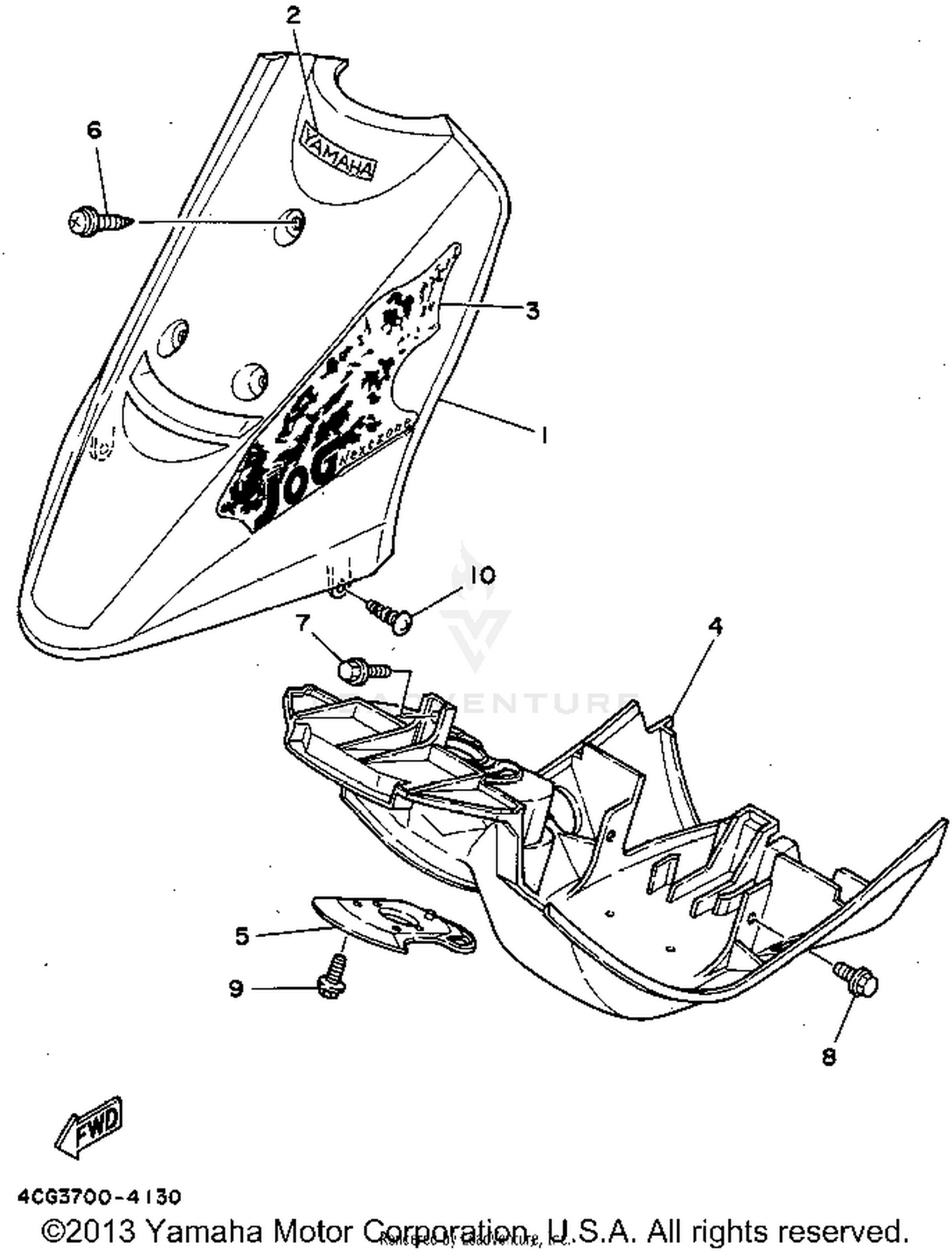

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
3KJ-21511-00-P1
|
$160.99 | ||
|
Unavailable |
|||
|
#
FENDER,FRONT
3KJ-21511-00-4B
Superseded by 3KJ-21511-00-PA
|
$160.99 | ||
|
Unavailable |
|||
|
#2
EMBLEM, YAMAHA
3KJ-21781-21-00
Superseded by 3WF-2153E-61-00
|
$4.26 | ||
|
Available to order. Add to View Price |
|||
|
#
EMBLEM, YAMAHA
3AA-21578-21-00
Superseded by 3WF-2153E-61-00
|
$4.26 | ||
|
Unavailable |
|||
|
#3
EMBLEM
4FB-21578-10-00
|
$56.99 | ||
|
Unavailable |
|||
|
#
EMBLEM
4FB-21578-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#4
FENDER, INNER
3KJ-21552-00-00
Superseded by 3KJ-21552-03-00
|
$42.99 | ||
|
Unavailable |
|||
|
#5
FENDER, INNER 2
27V-21553-03-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, WITH WASHER
90159-06178-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95816-06012-00
Superseded by 95817-06012-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95816-06012-00
Superseded by 95817-06012-00
|
$1.40 | ||
|
Unavailable |
|||
|
#9
BOLT, WITH WASHER
90119-06085-00
Superseded by 90119-06123-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, TRUSS HEAD TAPPING
90167-05041-00
Superseded by 97707-50012-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
