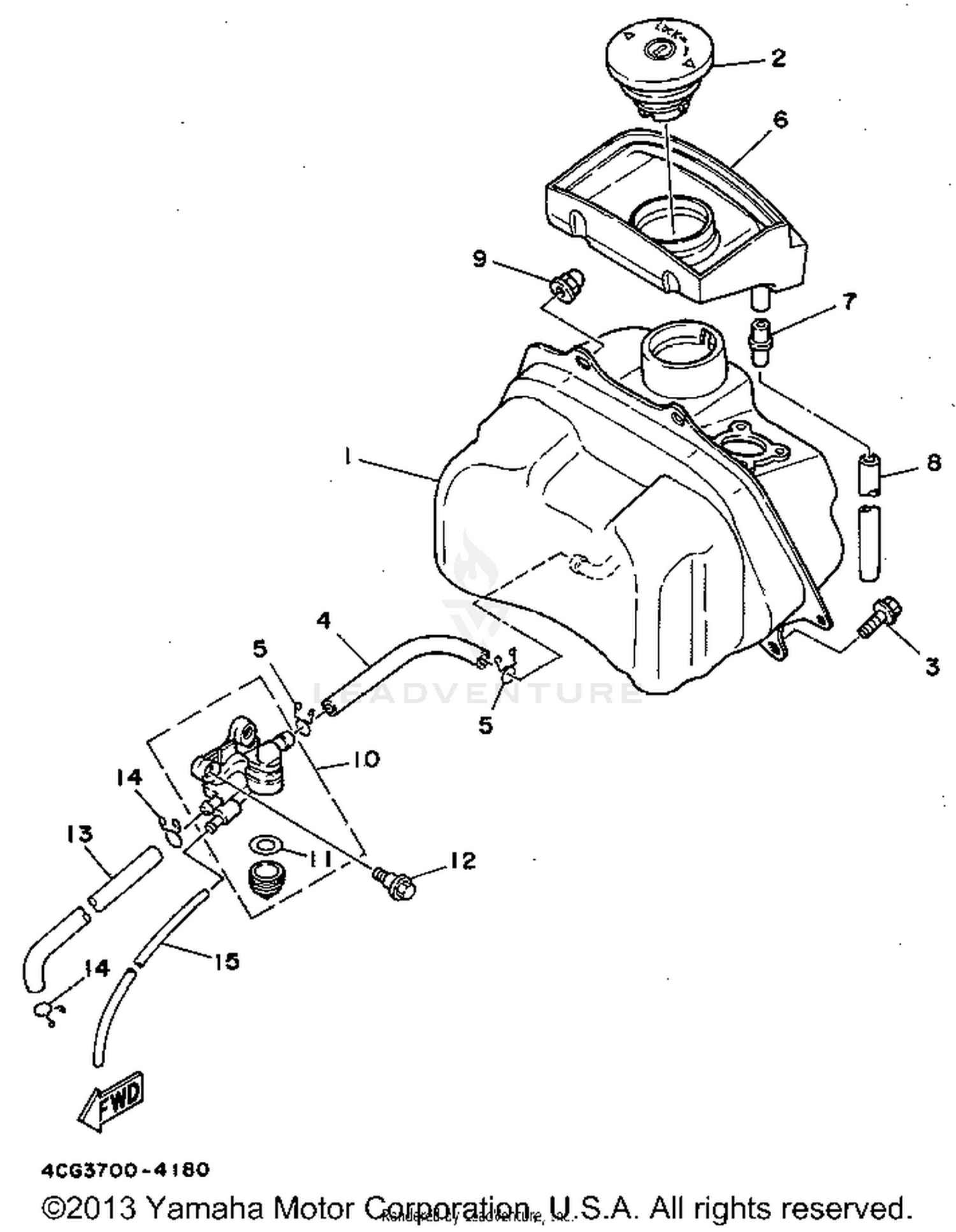

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
3KJ-24110-01-00
Superseded by 3KJ-24110-02-00
|
$210.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP ASSY
3KJ-24602-02-00
Superseded by 4JP-24602-21-00
|
$115.99 | ||
|
Unavailable |
|||
|
#3
BOLT, FLANGE
95816-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE (L210)
90445-111G1-00
Superseded by 90445-110F5-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP
90467-10129-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, FILLER
3KJ-2414A-01-00
Superseded by 3KJ-2414A-10-00
|
$17.99 | ||
|
Unavailable |
|||
|
#7
SPACER
90560-06366-00
|
$2.35 | ||
|
Unavailable |
|||
|
#8
TUBE, FLEXIBLE VINYL (91A-20070
91A20-07033-00
Superseded by 91A20-07039-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, CROWN
90176-06065-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
FUEL COCK ASSY (1)
3KJ-24500-01-00
Superseded by 3KJ-24500-02-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
4X8-24565-00-00
Superseded by 4X8-24565-10-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
90109-063F5-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIPE, FUEL 1
3KJ-24311-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE (L310)
90445-071G6-00
Superseded by 90445-072G8-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
