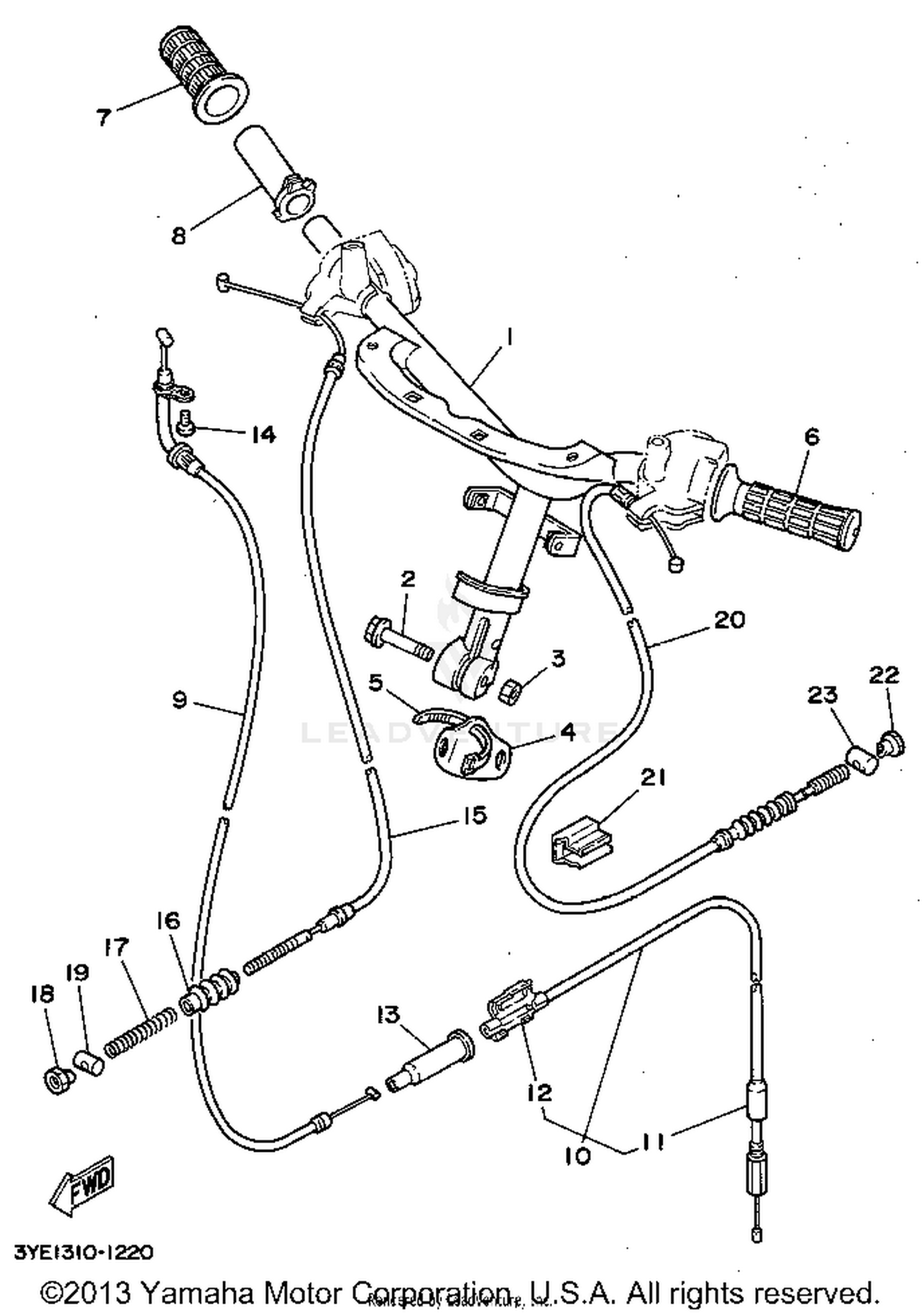

Steering Handle Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLE, COMP.
2VK-26110-00-00
|
$206.99 | ||
|
Unavailable |
|||
|
#2
BOLT, FLANGE
90105-10036-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, U FLANGE
95611-10200-00
Superseded by 95607-10200-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
BAND
2EK-26293-00-00
Superseded by 5AU-26293-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#5
BAND
12R-82591-00-00
Superseded by 1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
GRIP (L.H)
5G3-26241-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GRIP (R.H)
5G3-26242-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
TUBE, THROTTLE GUIDE
2GN-26243-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CABLE, THROTTLE 1
2EK-26311-01-00
Superseded by 2EK-26311-05-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CABLE,THROTTLE 2
3KJ-26312-00-00
Superseded by 3KJ-26312-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, RUBBER
304-26329-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CONNECTOR, CABLE
53L-26261-01-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP, RUBBER
1YU-26329-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN HEAD
98580-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CABLE, BRAKE
3SA-26341-00-00
Superseded by 3SA-26341-01-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOOT, CABLE
3KJ-26342-00-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, COMPRESSION
90501-10513-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
90179-06411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CABLE, BRAKE
3SA-26351-00-00
Superseded by 3SA-26351-01-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOLDER
3KJ-26393-00-00
Superseded by 3KJ-26393-01-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
90179-06411-00
|
$7.49 | ||
|
Unavailable |
|||
|
#23
PIN
90249-12008-00
|
$7.49 | ||
|
Unavailable |
|||
