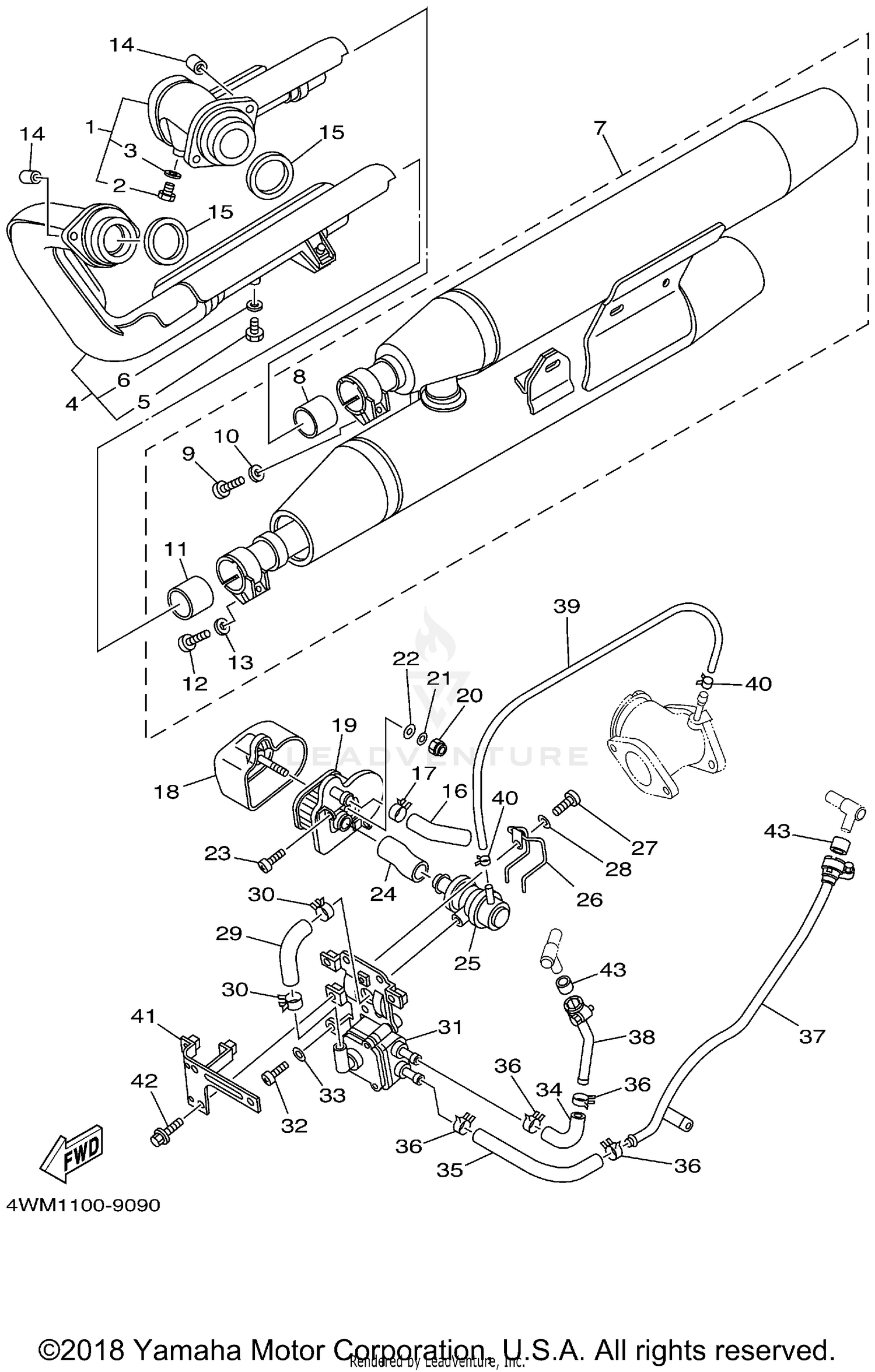

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSY 1
4WM-14610-00-00
|
$403.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, HEX.
97080-06008-00
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLAIN (646)
92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
EXHAUST PIPE ASSY 2
4WM-14620-00-00
|
$407.99 | ||
|
Unavailable |
|||
|
#5
BOLT, HEX.
97080-06008-00
|
$2.29 | ||
|
Unavailable |
|||
|
#6
WASHER, PLAIN (646)
92990-06600-00
|
$2.60 | ||
|
Unavailable |
|||
|
#7
MUFFLER ASSY 1
4WM-14703-01-00
Superseded by 4WM-14710-03-00
|
$1,499.99 | ||
|
Unavailable |
|||
|
#8
GASKET, SILENCER
3XW-14755-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
97024-08025-00
Superseded by 97013-08025-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
92904-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, SILENCER
3XW-14755-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#12
BOLT
97024-08025-00
Superseded by 97013-08025-00
|
$7.99 | ||
|
Unavailable |
|||
|
#13
WASHER, PLATE
92904-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Unavailable |
|||
|
#14
NUT
90179-08442-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, EXHAUST PIPE
3EG-14613-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE, BEND 5
4WM-14885-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP
90467-19065-00
Superseded by 90467-19051-00
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#18
CASE, AIR CLEANER
4WM-14857-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAP, CASE
4WM-14858-00-00
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, U
95607-05100-00
Superseded by 95617-05100-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER
92907-05200-00
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90202-05057-00
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW,PAN
98507-06012-00
Superseded by 98517-06012-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE, BEND 2
4WM-14882-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
AIR CUT VALVE ASS'Y
4WM-14840-00-00
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP
90462-20248-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN HEAD
98507-06010-00
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
92907-06600-00
|
$2.66 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOSE, BEND 3
4WM-14883-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLIP
90467-19065-00
Superseded by 90467-19051-00
|
$2.29 | ||
|
Unavailable |
|||
|
#31
REED VALVE ASSY
4WM-14808-00-00
|
$206.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, PAN HEAD
98507-06010-00
|
$3.48 | ||
|
Unavailable |
|||
|
#33
WASHER, PLATE
92907-06600-00
|
$2.66 | ||
|
Unavailable |
|||
|
#34
HOSE, BEND 4
4WM-14884-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
HOSE, BEND 6
4WM-14886-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLIP
90468-08104-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIPE 1
4WM-14871-00-00
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
PIPE 2
4WM-14872-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#39
HOSE (L685)
4WM-13542-00-00
Superseded by 90445-090G9-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLIP
90467-08092-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
BRACKET 2
4WM-14868-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, FLANGE
95027-06010-00
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#43
GASKET, MUFFLER
42H-14714-10-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
