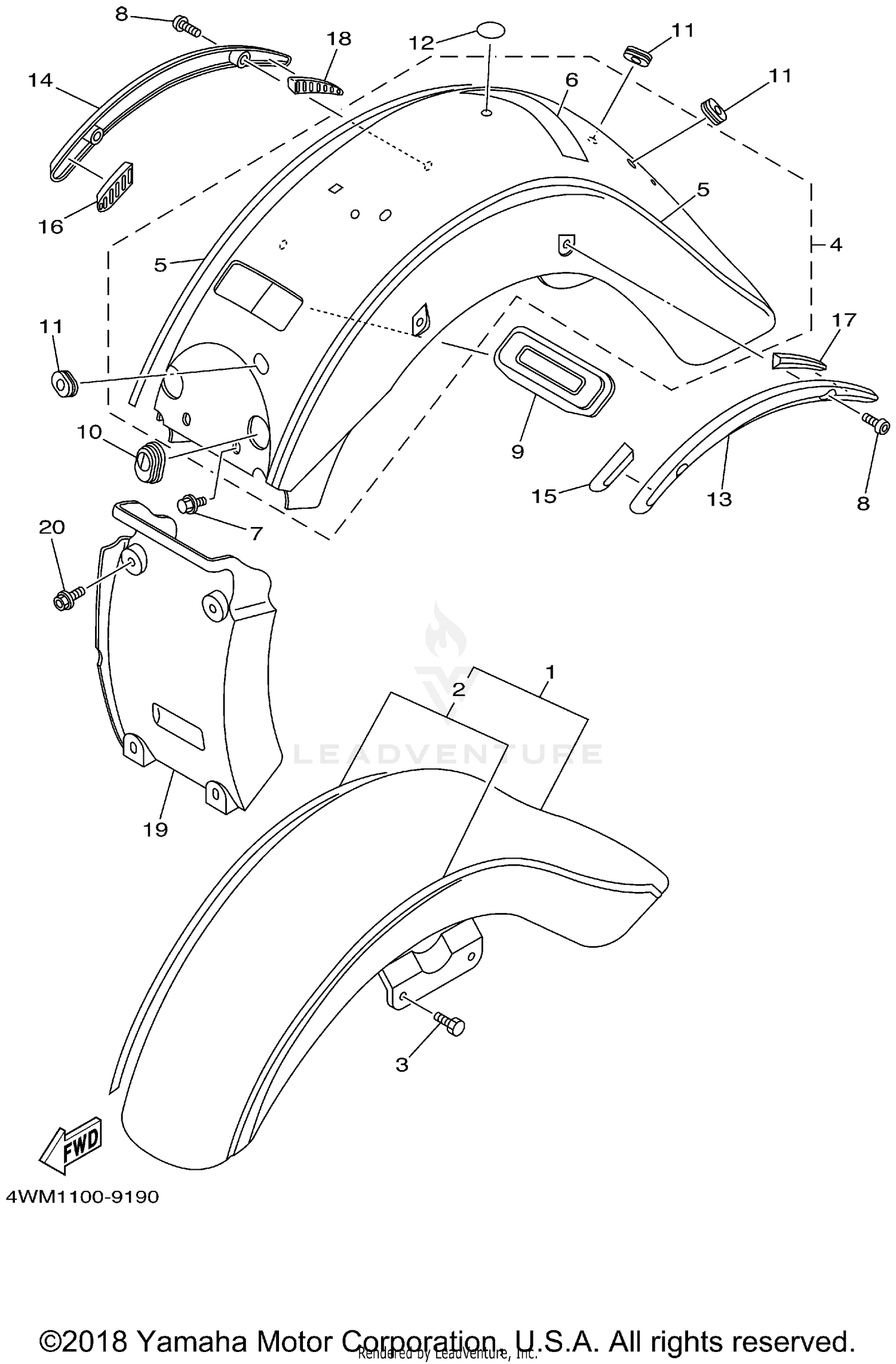

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FENDER ASSEMBLY
4WM-Y2150-00-33
|
$643.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
FRONT FENDER ASSEMBLY
4WM-Y2150-10-0X
|
$1,041.99 | ||
|
Unavailable |
|||
|
#1
FRONT FENDER ASSEMBLY
4WM-Y2150-20-1X
|
$897.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET, FRONT FENDER
4WM-21570-00-00
|
$159.19 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET, FRONT FENDER
4WM-21570-20-00
|
$238.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET, FRONT FENDER
4WM-21570-10-00
|
$222.99 | ||
|
Unavailable |
|||
|
#3
BOLT, HEXAGON SOCKET HEAD
91314-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
REAR FENDER C0MP.
4WM-Y2161-00-33
Superseded by 99999-03398-00
|
$1,155.99 | ||
|
Unavailable |
|||
|
#4
REAR FENDER COMP.
4WM-Y2161-20-1X
Superseded by 99999-03413-00
|
$1,247.99 | ||
|
Unavailable |
|||
|
#4
REAR FENDER COMP.
4WM-Y2161-10-0X
Superseded by 99999-03412-00
|
$1,050.99 | ||
|
Unavailable |
|||
|
#5
GRAPHIC SET, REAR FENDER
4WM-2165A-10-00
|
$222.99 | ||
|
Unavailable |
|||
|
#5
GRAPHIC SET, REAR FENDER
4WM-2165A-00-00
|
$197.99 | ||
|
Unavailable |
|||
|
#5
GRAPHIC SET, REAR FENDER
4WM-2165A-20-00
|
$209.99 | ||
|
Unavailable |
|||
|
#6
EMBLEM, YAMAHA
99236-00080-00
Superseded by 99246-00080-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
EMBLEM, YAMAHA
99237-00080-00
Superseded by 99247-00080-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, WITH WASHER
90119-06056-00
Superseded by 90119-06152-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, BUTTON HEAD
92014-08025-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER
4WM-21649-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER 1
4WM-21638-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET
90480-15061-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL 2
4NK-21735-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
STAY 1
4WM-2164F-00-00
|
$161.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
STAY 2
4WM-2164G-00-00
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER 1
4WM-21541-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER 2
4WM-21542-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER
4WM-2174X-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER
4WM-2174Y-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GUARD, MUD
4WM-21629-00-Y9
|
$218.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GUARD, MUD
4WM-21629-00-FW
|
$190.99 | ||
|
Unavailable |
|||
|
#19
GUARD, MUD
4WM-21629-00-33
|
$186.99 | ||
|
Unavailable |
|||
|
#20
BOLT, WITH WASHER
90119-06060-00
Superseded by 90119-06226-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
