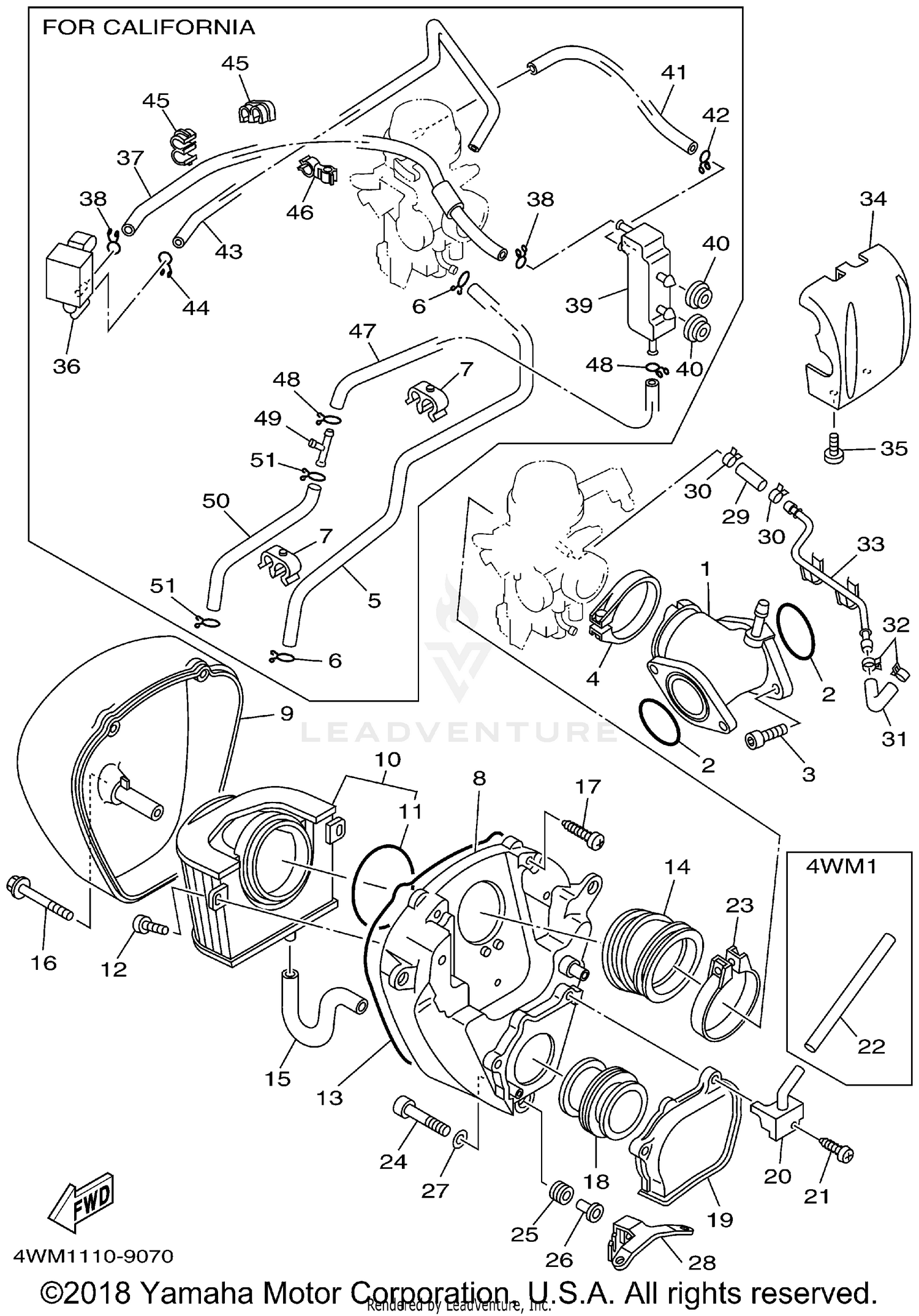

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, CARBURETOR 1
4WM-13586-00-00
Superseded by 4WM-13586-01-00
|
$147.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING
93210-505A4-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, HEX. SOCKET HEAD
91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE CLAMP ASSY
90450-58001-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE, SUCTION 1
4WM-14423-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#6
CLIP
90467-10041-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
90464-11201-00
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
CASE, AIR CLEANER
4WM-14411-00-00
Superseded by 4WM-14411-01-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CASE, AIR CLEANER 2
4WM-14421-00-00
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ELEMENT, AIR CLEANER
4WM-14451-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
93210-77040-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, BIND
98904-06014-00
Superseded by 98980-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL
4WM-14452-00-00
Superseded by 51Y-14462-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
JOINT, AIR CLEANER 1
4WM-14453-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIPE, DRAIN
4WM-1443E-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
90149-06331-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, TAPPING
97707-60540-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
DUCT
4WM-14437-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#19
COVER 1
4WM-14417-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
STAY
4WM-14413-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, TAPPING
97707-50525-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE (L210)
90445-110G7-00
Superseded by 90445-110F5-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE CLAMP ASSY
90450-67001-00
Superseded by 90450-67002-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, HEXAGON SOCKET HEAD
90110-06240-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
GROMMET
90480-14023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-07391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER
90209-06250-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#28
STAY 1
4WM-14498-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOSE (L30)
90445-146K8-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLIP
90467-13083-00
Superseded by 90467-13133-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOSE
4WM-14294-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLIP
90467-13083-00
Superseded by 90467-13133-00
|
$7.49 | ||
|
Unavailable |
|||
|
#33
PIPE, FUEL
4WM-14295-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
COVER, CONTROL RACK
4WM-13993-00-00
Superseded by 4WM-13993-01-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW, PAN HEAD
98504-05012-00
Superseded by 98580-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
VALVE, OUTER VENT CONTROL 2
4WM-14896-00-00
|
$98.03 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIPE 14
4WM-24325-01-00
|
$26.99 | ||
|
Unavailable |
|||
|
#38
CLIP
90467-10041-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Unavailable |
|||
|
#39
TANK, SURGE
4WM-1446E-00-00
|
$130.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
GROMMET
90480-13567-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#41
PIPE
4WM-14349-01-00
|
$32.99 | ||
|
Unavailable |
|||
|
#42
CLIP
90467-10041-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Unavailable |
|||
|
#43
PIPE 1
4WM-14348-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#44
CLIP
90467-10041-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Unavailable |
|||
|
#45
CLAMP
90464-12224-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#46
CLAMP
90464-11001-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#47
PIPE
4WM-14196-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#48
CLIP
90467-10041-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Unavailable |
|||
|
#49
WAY 3
90413-07007-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
PIPE
4WM-14193-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#51
CLIP
90467-10041-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Unavailable |
|||
