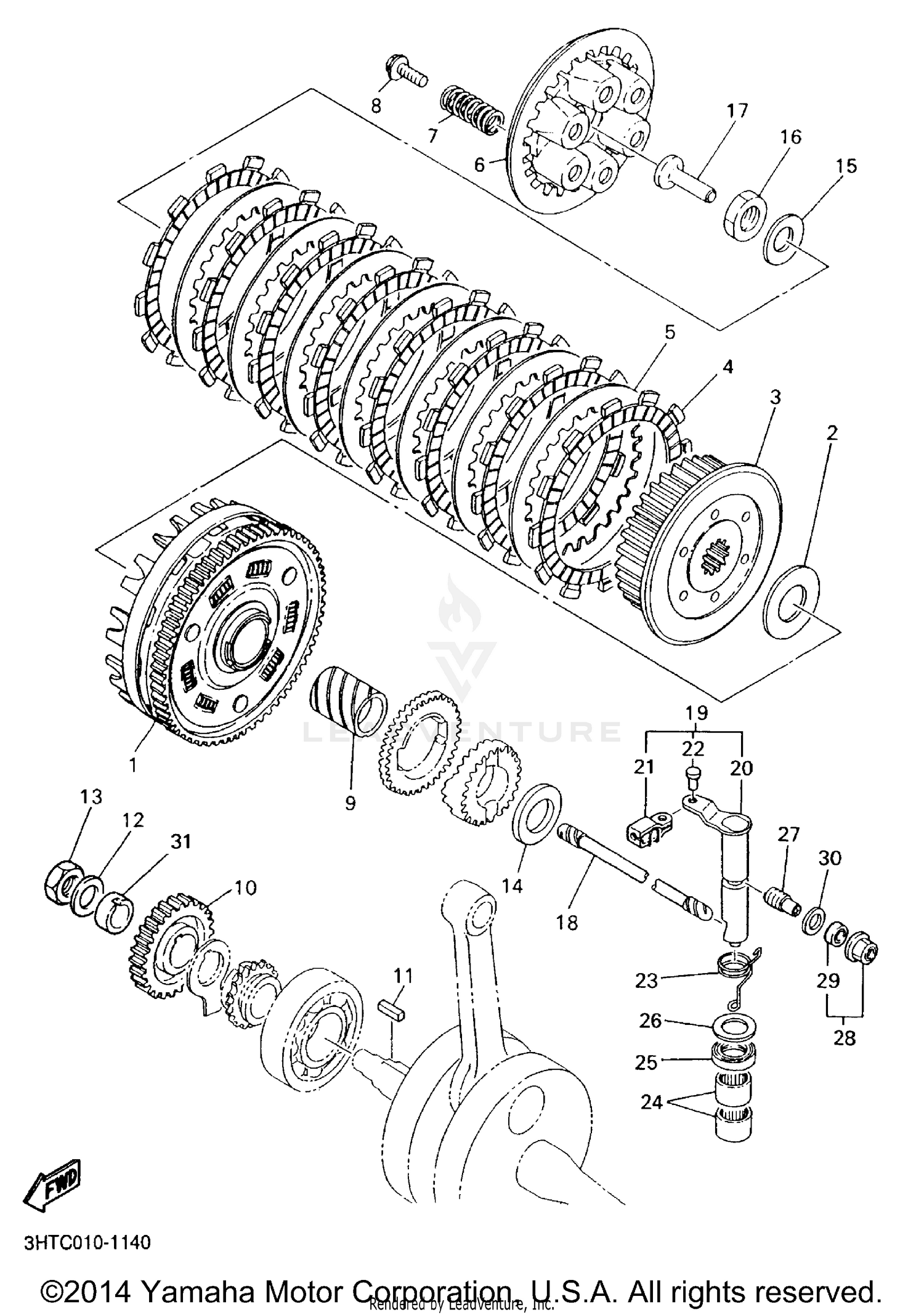

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PRIMARY DRIVEN GEAR COMP. (77T)
2J2-16150-00-00
|
$325.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, THRUST 2
170-16164-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOSS, CLUTCH
583-16371-00-00
|
$173.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, FRICTION
5Y1-16321-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, CLUTCH 2
360-16325-00-00
Superseded by 360-16325-10-00
|
$33.99 | ||
|
Unavailable |
|||
|
#6
PLATE, PRESSURE 1
498-16351-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, COMPRESSION
90501-234L3-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, WITH WASHER
90159-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER
90560-25153-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, PRIMARY DRIVE
3HT-16111-00-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
KEY, STRAIGHT
90282-07021-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, CONICAL SPRING
90208-16019-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
90170-16425-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, THRUST 1
363-16154-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, BELLEVILLE
214-16119-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
90170-18086-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROD, PUSH 1
174-16356-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
ROD, PUSH 2
583-16357-01-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
AXLE PUSH LEVER ASSY
583-16302-00-00
|
$161.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PUSH LEVER COMP.
583-16381-00-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
JOINT
214-16389-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN
90243-06016-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING, TORSION
90508-12279-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING
93315-11720-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL
93102-17357-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-17327-00
Superseded by 90201-18262-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, ADJUSTING
364-16343-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, ADJUSTING
583-16344-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
OIL SEAL
93104-07036-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
90201-12172-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR
90387-20644-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
