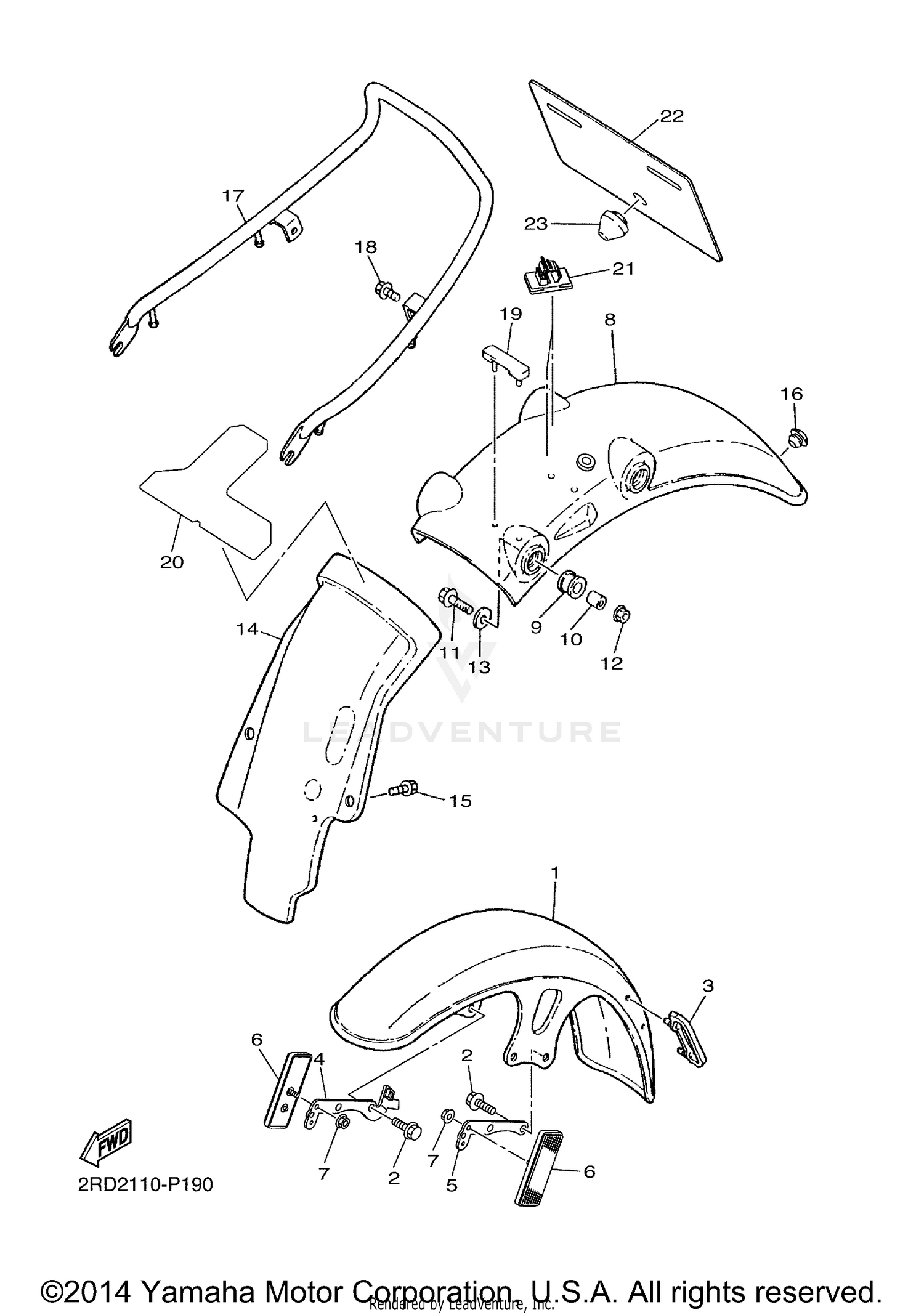

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FENDER COMP.
1JN-21510-20-93
|
$206.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT,FLANGE (JN5)
95807-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER, CABLE
3Y6-21518-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER, BRAKE HOSE
2RD-25887-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER, BRAKE HOSE 5
2RD-2588F-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
REFLECTOR ASSY
11H-85110-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, FLANGE
95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
REAR FENDER COMP.
2J2-21610-11-93
|
$283.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER 2
168-21639-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR
90387-08258-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95807-08035-00
Superseded by 95817-08035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT,FLANGE (JN5)
95707-08500-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER PLATE
90201-08766-00
Superseded by 90201-085E6-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUARD, MUD
2J2-21629-01-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, WITH WASHER
90119-06056-00
Superseded by 90119-06152-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG
90338-07043-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
STAY, REAR
3GW-21645-00-00
Superseded by 3GW-21645-01-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT,FLANGE (JN5)
95827-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Unavailable |
|||
|
#19
CLAMP, WIRE
3HT-21637-00-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAL
3HT-21669-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP
90464-62085-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE, NUMBER SUPPORT
2RD-28189-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
DAMPER
3HT-21649-00-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
