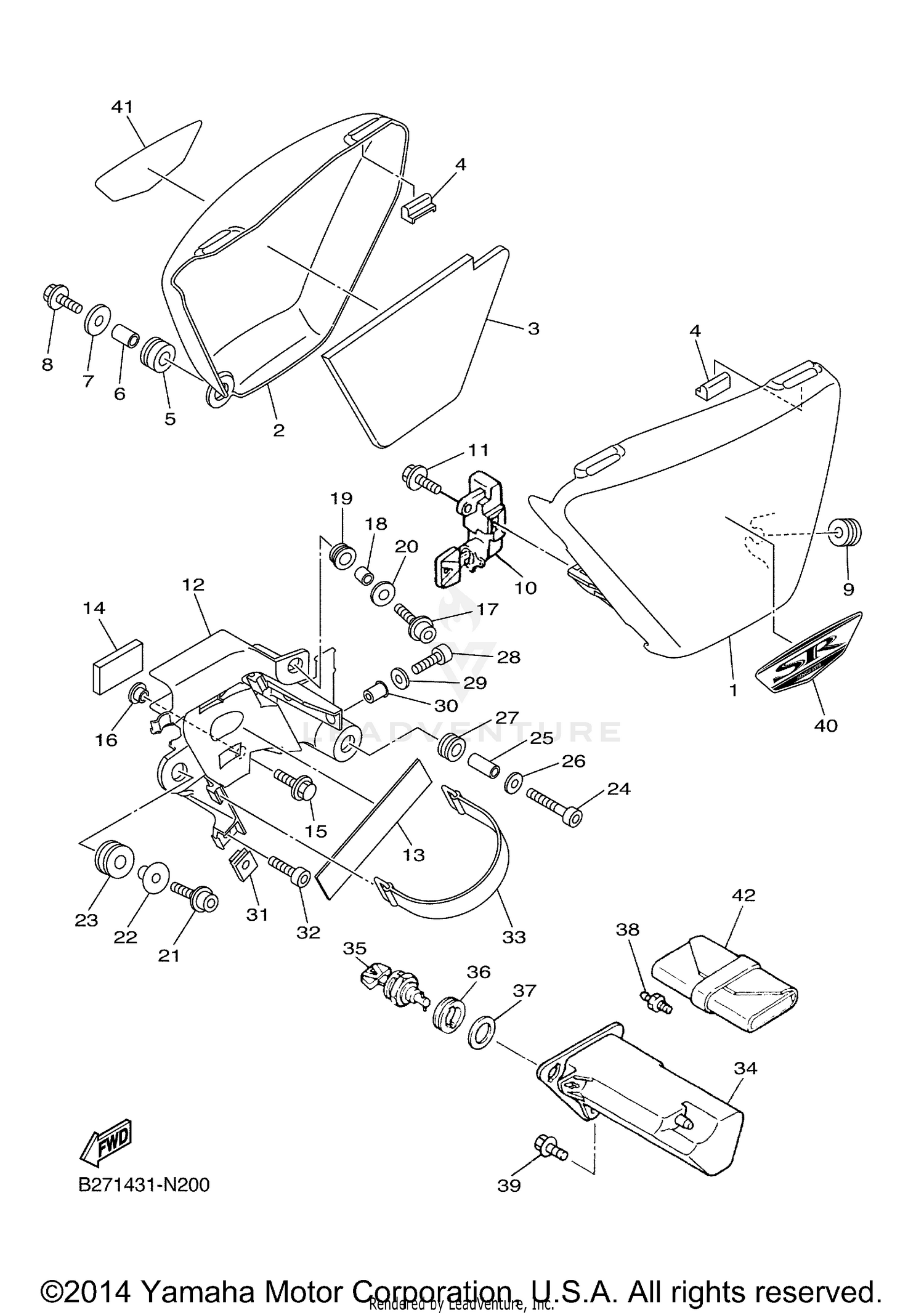

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
3HT-21711-00-33
Superseded by 3HT-21711-02-33
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER SIDE 2
3HT-21721-00-33
Superseded by 3HT-21721-01-33
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER
3HT-2174Y-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER
466-21717-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET
90480-14105-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, LEVER 1
90387-07393-00
Superseded by 36Y-83913-01-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER PLAIN
90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT,FLANGE
95807-06030-00
Superseded by 95817-06030-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
GROMMET
90480-12236-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
LOCK ASSY 2
4R8-21708-01-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95807-06014-00
Superseded by 95817-06014-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOX
3HT-2177A-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER, LOCATING 1
5PX-21778-00-00
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER
1TX-28371-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95822-06014-00
Superseded by 95817-06014-00
|
$5.99 | ||
|
Unavailable |
|||
|
#16
COLLAR
90387-06184-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEXAGON SOCKET HEAD
90110-06164-00
Superseded by 90110-06163-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
90387-063K3-00
Superseded by 90387-06113-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GROMMET
90480-12003-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-06104-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, HEXAGON SOCKET HEAD
90110-06164-00
Superseded by 90110-06163-00
|
$9.49 | ||
|
Unavailable |
|||
|
#22
COLLAR
90387-077M3-00
Superseded by 90387-06M52-00
|
$6.50 | ||
|
Available to order. Add to View Price |
|||
|
#23
GROMMET
90480-14452-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
91312-06035-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-06045-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-06104-00
|
$4.90 | ||
|
Unavailable |
|||
|
#27
GROMMET
90480-14003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
91312-05020-00
Superseded by 91317-05020-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
92902-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT
90179-05633-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, SPRING
90183-060A1-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT
91312-06016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BAND, BATTERY
133-82131-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOX
48U-21248-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
LOCK ASSY 2
5A8-21708-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
GROMMET
90480-24186-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, PLATE (T=1.0)
90201-225A4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
NIPPLE, GREASE
93700-06004-00
Superseded by 93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, WITH WASHER
90119-06044-00
Superseded by 90119-06242-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
EMBLEM 1
2RD-21781-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
EMBLEM 1
2RD-21781-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#42
TOOL KIT
3GW-28100-01-00
Superseded by 3GW-28100-02-00
|
$45.99 | ||
|
Unavailable |
|||
