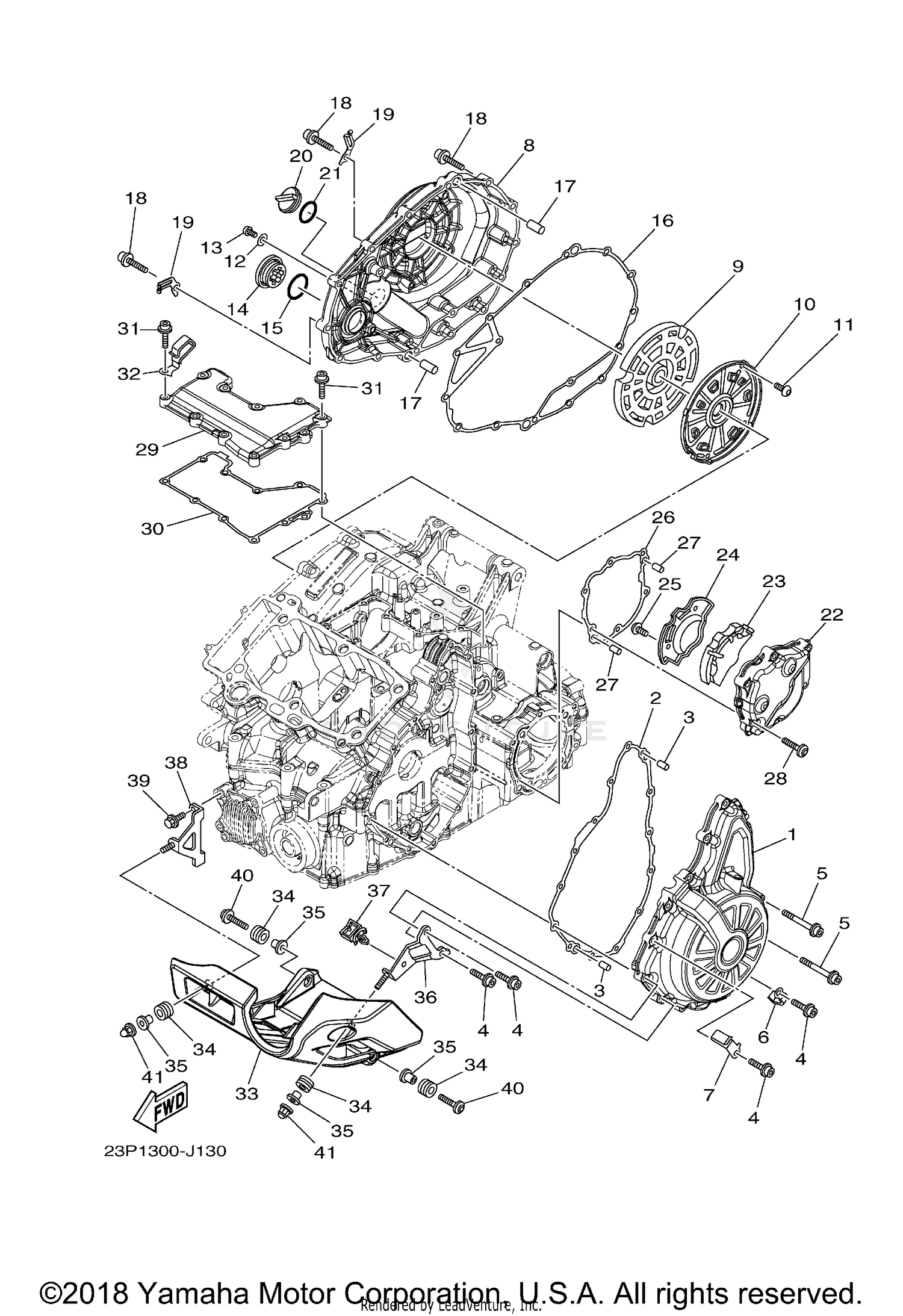

Crankcase Cover 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE 1
23P-15411-00-00
|
$213.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CRANKCASE COVER 1
23P-15451-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
99530-08012-00
|
$6.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, HEXAGON SOCKET HEAD
90110-06387-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HEXAGON SOCKET HEAD
90110-06375-00
Superseded by 90110-06337-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP
90462-08089-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET
23P-15199-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, CRANKCASE 2
23P-15421-00-00
Superseded by 23P-15421-01-00
|
$273.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER 1
23P-15316-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER
23P-15492-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
90149-06158-00
Superseded by 90149-06156-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
90430-08143-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEX. SOCKET BUTTON
90111-08075-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG, STRAIGHT SCREW
90340-32004-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
93210-32172-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET, CRANKCASE COVER 2
23P-15461-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, DOWEL
93610-20189-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEXAGON SOCKET HEAD
90110-06388-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP
90465-08062-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLUG, OIL LEVEL
3F9-15362-10-00
Superseded by BAT-15362-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#21
O-RING
93210-27370-00
Superseded by 93210-27778-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER, CRANKCASE 3
23P-15431-10-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
DAMPER 2
23P-15326-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, CAP 2
23P-15427-00-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW
90149-06158-00
Superseded by 90149-06156-00
|
$7.49 | ||
|
Unavailable |
|||
|
#26
GASKET, CRANKCASE COVER 3
23P-15462-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, DOWEL
99530-08012-00
|
$6.10 | ||
|
Unavailable |
|||
|
#28
SCREW
90149-06185-00
Superseded by 90149-06172-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#29
COVER, GENERATOR
23P-15415-00-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
GASKET 1
23P-15455-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, HEXAGON SOCKET HEAD
90110-06349-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLAMP
90462-08085-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
PROTECTOR
23P-15491-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
GROMMET
90480-12596-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
COLLAR
90387-06265-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
STAY 1
23P-15771-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLAMP
90464-23199-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#38
STAY 2
23P-15772-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, FLANGE
90105-06066-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
SCREW
90149-06328-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT, CROWN
90176-06047-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
