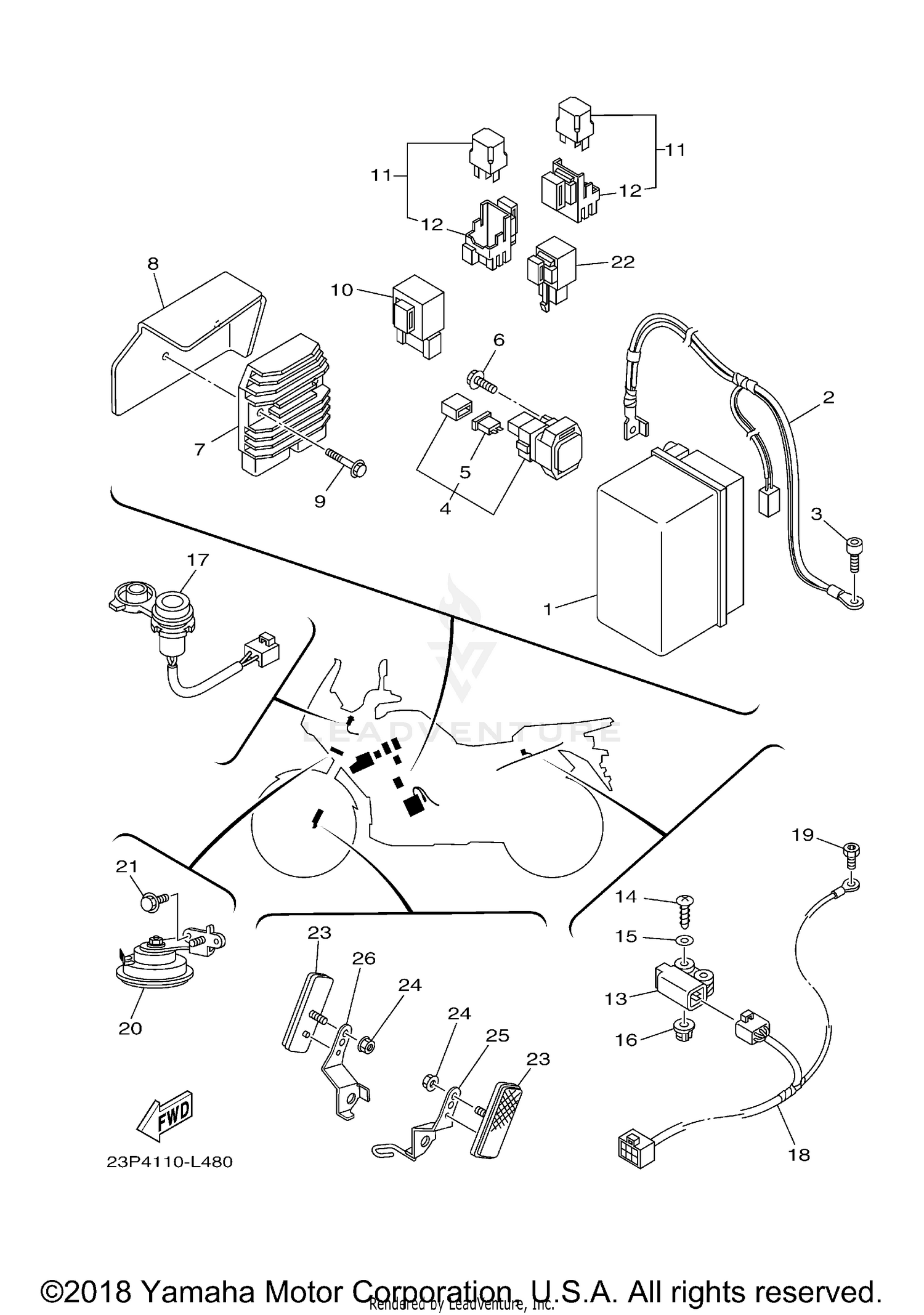

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
YTZ12S YUASA BATTER
23P-82100-00-00
Superseded by YTZ-12S00-00-00
|
$268.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WIRE, MINUS LEAD
23P-82116-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
91312-06012-00
Superseded by 91317-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
STARTER RELAY ASSY (RC19-018)
4YR-81940-02-00
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
FUSE (30A-BL)
1AE-82151-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
95022-06008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
RECTIFIER & REGULATOR ASSY
1D7-81960-01-00
|
$310.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, RECTIFIER FITTING
23P-81975-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT,FLANGE
95802-06030-00
Superseded by 95817-06030-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
RELAY ASSY (G8R-30Y-W4)
5VK-81950-40-00
Superseded by 5VK-81950-43-00
|
$62.99 | ||
|
Unavailable |
|||
|
#11
RELAY ASSY (5JJ-20)
5JJ-81950-20-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER, RELAY
5JJ-81952-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SENSOR, LEAN ANGLE
5VU-82576-01-00
Superseded by 5VU-82576-03-00
|
$93.99 | ||
|
Unavailable |
|||
|
#14
SCREW, TAPPING
97702-40025-00
|
$0.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-04030-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, ADJUSTING
4B4-84334-00-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#17
TERMINAL COMP.
23P-8254B-00-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WIRE, SUB LEAD
23P-82509-10-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, HEXAGON
90153-06044-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#20
HORN
23P-83371-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE
90105-06181-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
FLASHER RELAY ASSY
4MY-83350-01-00
Superseded by 4MY-83350-03-00
|
$49.99 | ||
|
Unavailable |
|||
|
#23
REFLECTOR ASSY
11H-85110-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, FLANGE
95702-05500-00
|
$0.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
BRACKET, REFLECTOR 1
23P-85112-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BRACKET, REFLECTOR 2
23P-85122-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
