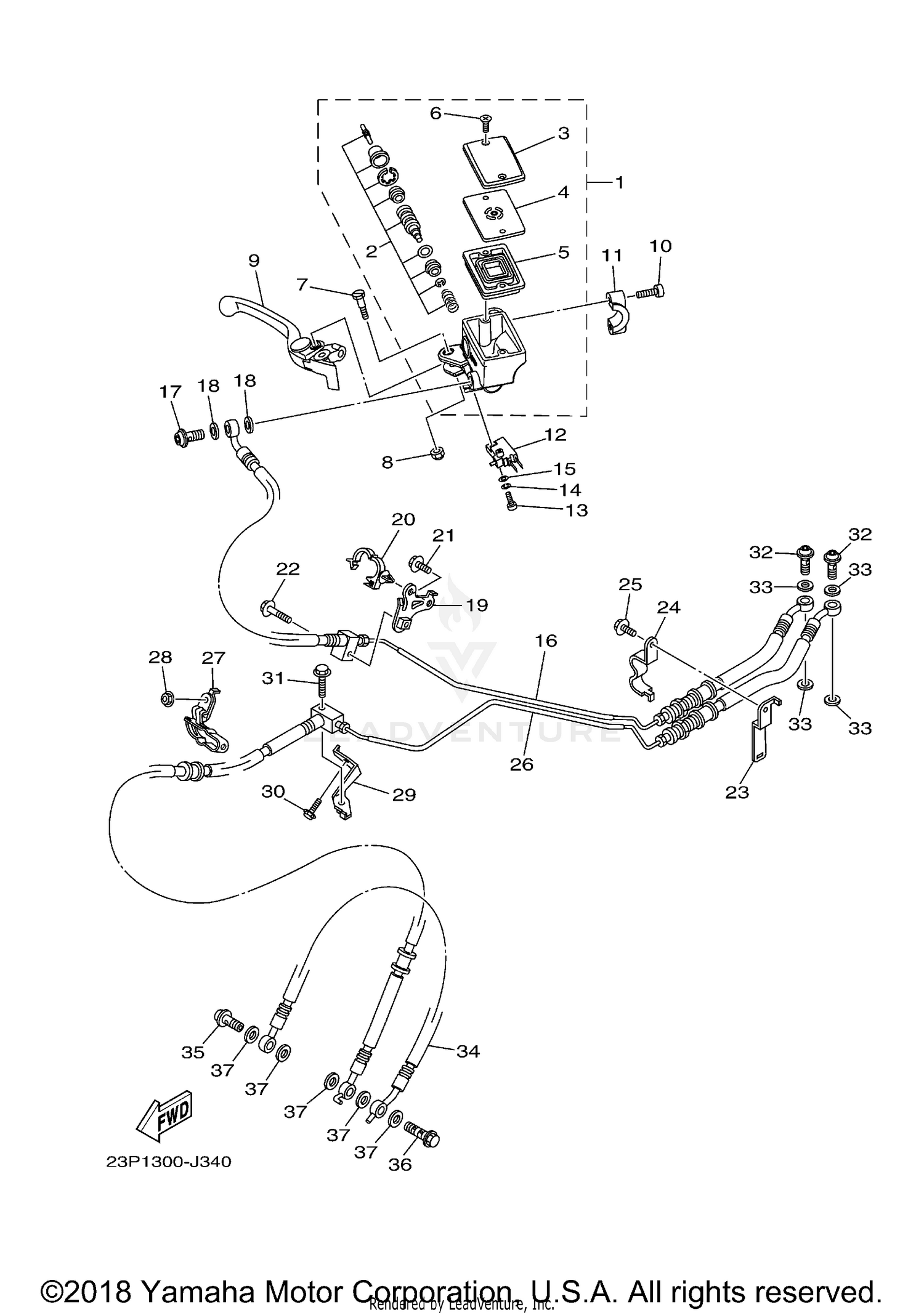

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB ASSY 2
23P-W2587-00-00
Superseded by 23P-2580A-00-00
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
2D1-W0041-00-00
Superseded by 2D1-25807-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP, RESERVOIR
5VS-25852-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSH, DIAPHRAGM
5VS-25855-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DIAPHRAGM, RESERVOIR
20S-25854-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
5VS-2589H-00-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, LEVER
23P-2589F-10-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, U
95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
LEVER 2
5VS-83922-00-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
5VS-26332-00-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, MASTER CYLINDER
5VS-25867-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
FRONT STOP SWITCH ASSY
4HM-83980-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW,PANHEAD
98502-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92902-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
92902-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE, BRAKE
23P-2584B-00-00
Superseded by 23P-2584B-01-00
|
$143.99 | ||
|
Unavailable |
|||
|
#17
BOLT, UNION
90401-10172-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET
90430-10005-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOLDER, BRAKE HOSE 6
23P-2588G-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP
90464-20010-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE
95022-06010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95022-06025-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOLDER 2
23P-2639F-00-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOLDER, 3
23P-26482-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, BUTTON HEAD
92012-06010-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOSE, BRAKE
23P-2584C-00-00
Superseded by 23P-2584C-01-00
|
$211.99 | ||
|
Unavailable |
|||
|
#27
HOLDER, BRAKE HOSE 5
23P-2588F-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, FLANGE
95702-06500-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOLDER
23P-26475-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE
95022-06016-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE
95022-06025-00
|
$3.40 | ||
|
Unavailable |
|||
|
#32
BOLT, UNION
90401-10172-00
|
$5.49 | ||
|
Unavailable |
|||
|
#33
GASKET
90430-10005-00
|
$8.49 | ||
|
Unavailable |
|||
|
#34
HOSE, BRAKE 1
23P-25872-00-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, UNION
90401-10172-00
|
$5.49 | ||
|
Unavailable |
|||
|
#36
BOLT, UNION
90401-10038-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
GASKET
90430-10005-00
|
$8.49 | ||
|
Unavailable |
|||
