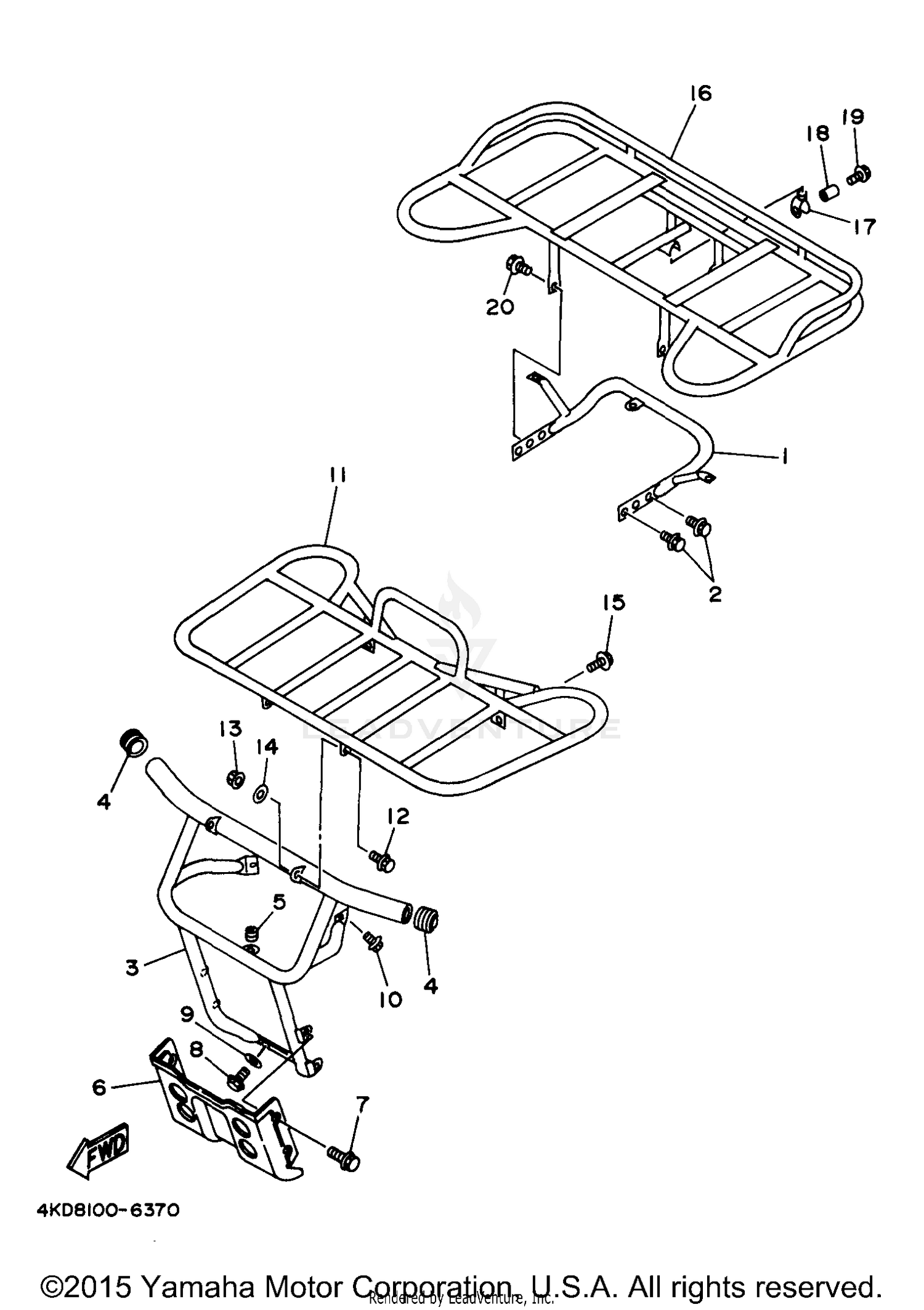

Guard 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAR, CARRY REAR
4BD-2845R-20-00
|
$160.99 | ||
|
Unavailable |
|||
|
#2
BOLT,FLANGE (JN5)
95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BAR, CARRY FRONT
4KD-2845N-20-00
Superseded by 4KD-2845N-10-00
|
$442.99 | ||
|
Unavailable |
|||
|
#4
DAMPER 1
2HR-28415-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET
90480-17507-00
|
$6.99 | ||
|
Unavailable |
|||
|
#6
COVER 1
4BD-2842M-00-00
|
$130.55 | ||
|
Unavailable |
|||
|
#7
BOLT,FLANGE
95817-06010-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT,FLANGE (JN5)
95817-08016-00
|
$5.49 | ||
|
Unavailable |
|||
|
#9
WASHER, PLATE
90201-08326-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CARRIER (FRONT)
4BD-F4841-U0-00
Superseded by 4BD-24841-01-00
|
$239.99 | ||
|
Unavailable |
|||
|
#12
BOLT, FLANGE
95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, FLANGE
95707-06500-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-065F3-00
Superseded by 90201-06020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT,FLANGE (JN5)
95817-08016-00
|
$5.49 | ||
|
Unavailable |
|||
|
#16
CARRIER, REAR
4BD-F4842-U0-00
Superseded by 4BD-24842-00-00
|
$294.99 | ||
|
Unavailable |
|||
|
#17
BAND
24W-2483H-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPACER
90560-06243-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95817-06035-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
95827-08020-00
Superseded by 95817-08020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
