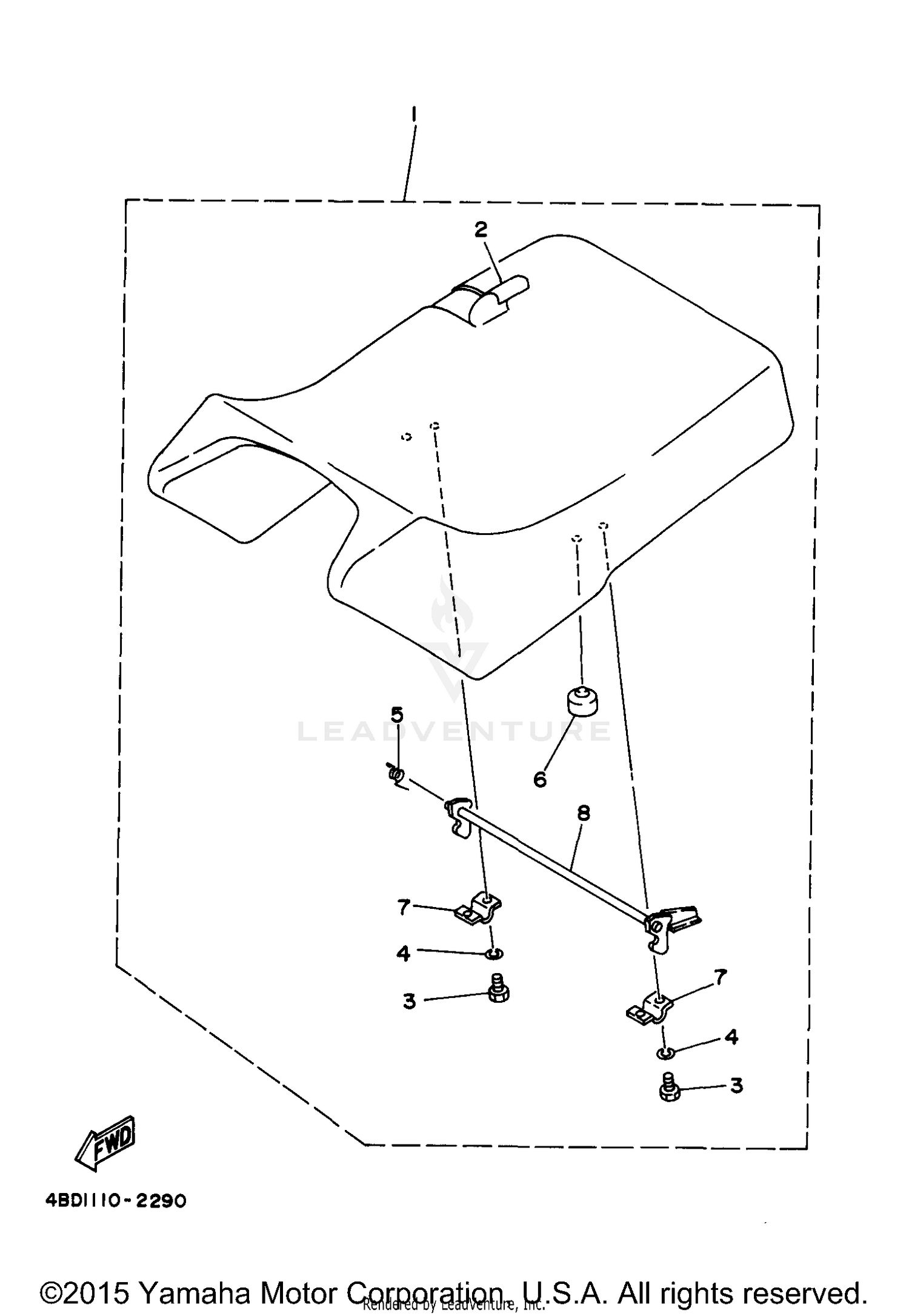

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSEMBLY
4BD-24710-40-00
|
$280.99 | ||
|
Unavailable |
|||
|
#2
COVER, SEAT
4BD-24731-40-00
|
$164.99 | ||
|
Unavailable |
|||
|
#3
BOLT
97007-06016-00
Superseded by 97017-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, TORSION
90508-23567-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
STOPPER, MAIN STAND
371-27114-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, SEAT LEVER
59V-24775-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER, SEAT
4BD-24776-01-00
|
$30.99 | ||
|
Unavailable |
|||
