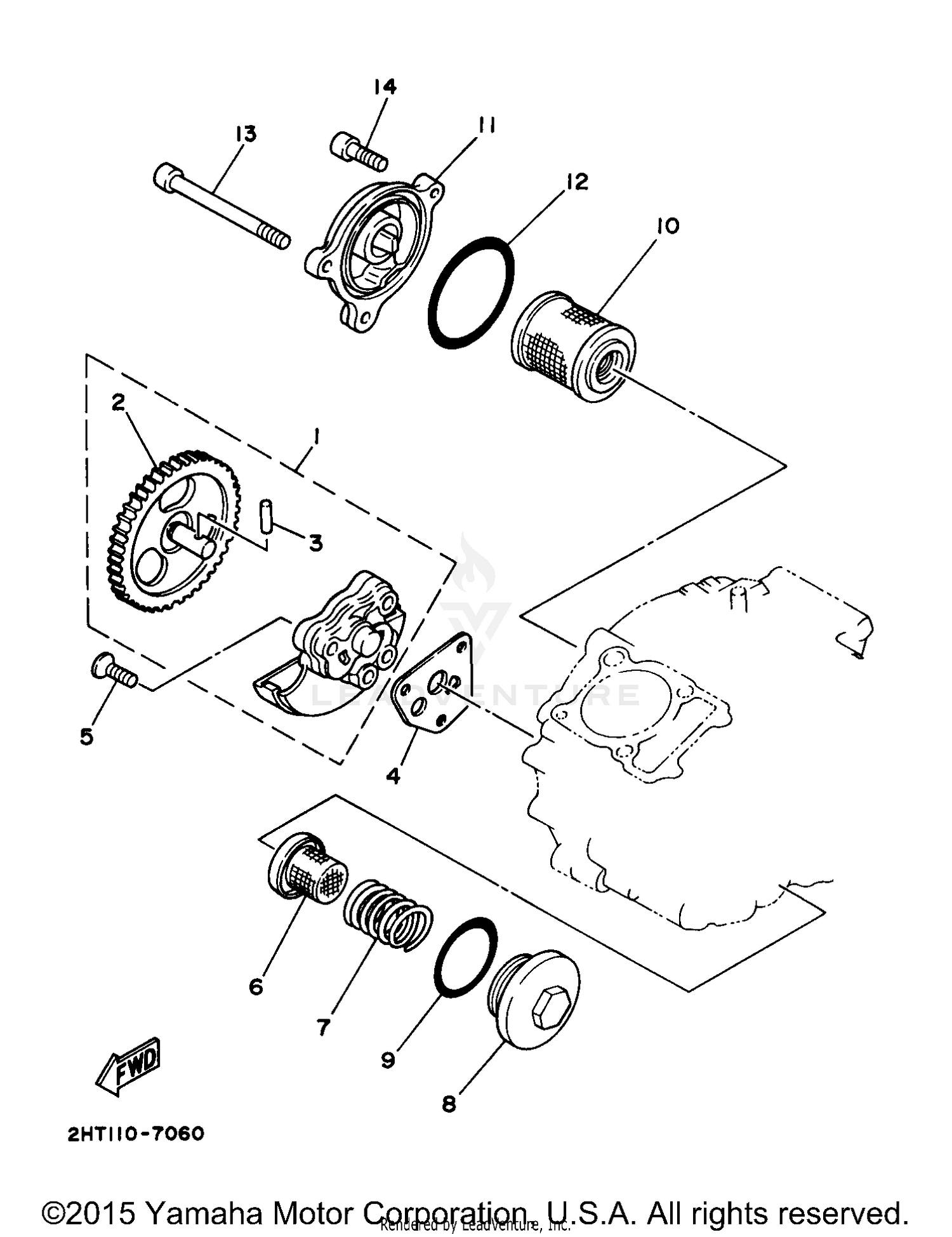

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL PUMP ASSY
2HT-13300-00-00
|
$233.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, PUMP DRIVEN 2 (41T)
21V-13326-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#3
PIN, PLUNGER
93603-12030-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, PUMP COVER
4BE-13329-00-00
Superseded by 3GD-13329-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, FLAT HEAD
98707-06030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
STRAINER, OIL
51Y-13411-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, COMPRESSION
90501-18576-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG, DRAIN
5H0-15351-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
93210-35389-00
Superseded by 93210-347A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
ELEMENT ASSY, OIL CLEANER
5H0-13440-09-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, OIL ELEMENT
5XG-E3447-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#12
O-RING
93210-54175-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
91317-06115-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
