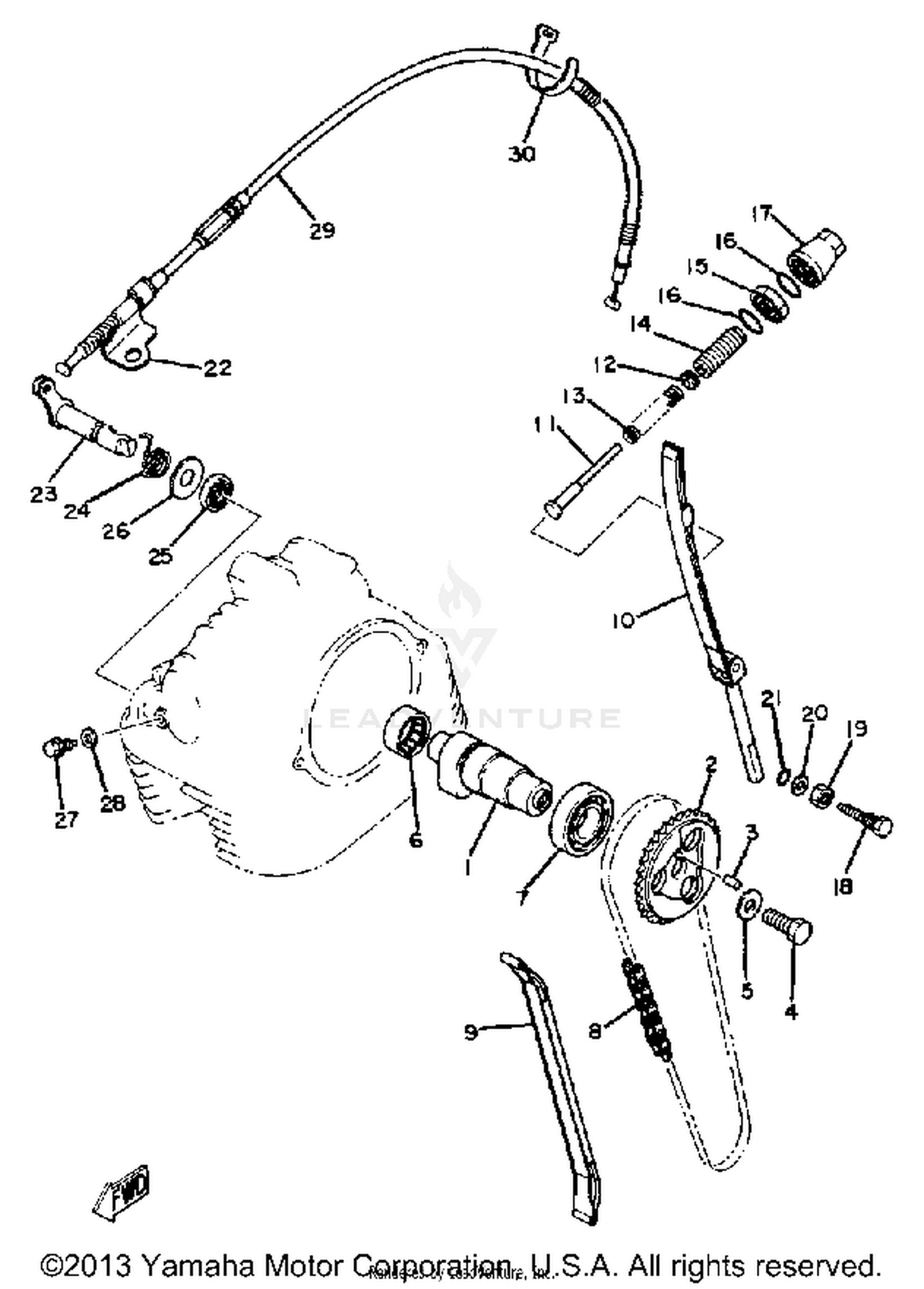

Camshaft -chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT ASSEMBLY 1
99999-01446-00
|
$211.99 | ||
|
Unavailable |
|||
|
#2
SPROCKET, CAM CHAIN
3Y1-12176-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
93604-10011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
90101-10303-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-10774-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93315-32516-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
93306-00501-00
Superseded by 93306-00519-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CHAIN (BF05M 90L)
94500-02090-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE, STOPPER 1
3Y1-12231-01-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUIDE, STOPPER 2
3Y1-12241-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROD, CHN TENSIONER
3Y1-12217-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER
3Y1-12232-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, COMPRESSION
90501-10587-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
90149-14182-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
90179-14298-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
93210-16629-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CASE, CHAIN TENSIONER
3Y1-12212-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
90109-06555-00
|
$1.98 | ||
|
Unavailable |
|||
|
#19
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
93210-06632-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRACKET, DCOMP
3Y1-12283-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#23
CAM, DCOMP
3Y1-12288-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#24
SPRING, TORSION
90508-16428-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL (SD 12-22-5 HS)
93102-12321-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-12588-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
90109-06418-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
CABLE, DCOMP
3Y1-12292-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
