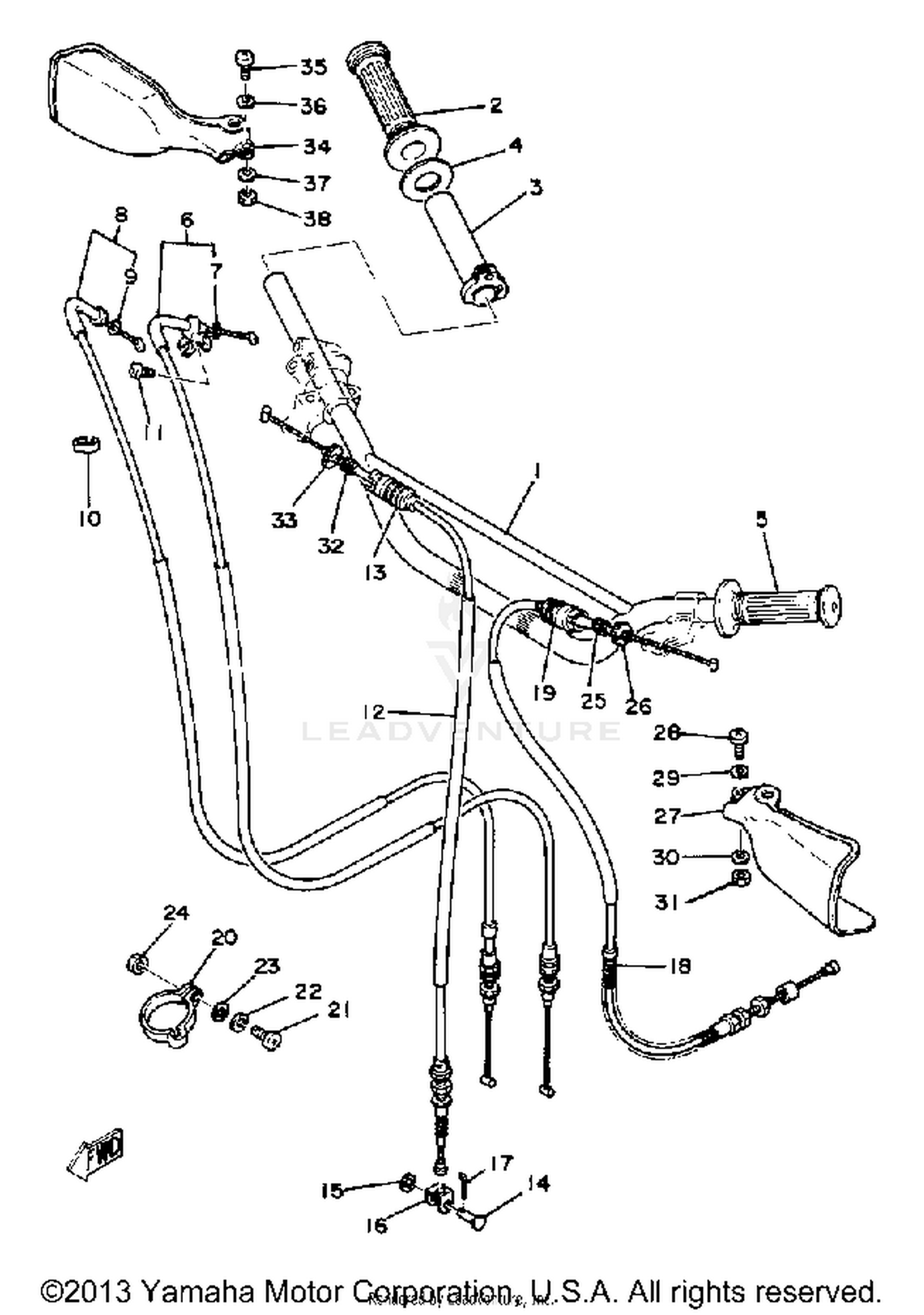

Handlebar-cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
2A8-26111-00-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GRIP RH (R.H.)
1A0-26242-01-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE, THROTTLE GUIDE
3Y1-26243-01-00
Superseded by 1RF-26243-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
RING, LEAF
3Y1-26249-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GRIP LH (L.H.)
1E6-26241-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CABLE, THROTTLE 1
3Y1-26311-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
93210-08408-00
|
$2.45 | ||
|
Unavailable |
|||
|
#8
CABLE, THROTTLE 2 (3Y1-26312-00
53R-26312-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP
90468-15009-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP
90468-15009-00
|
$6.49 | ||
|
Unavailable |
|||
|
#11
SCREW, PAN HEAD
98506-05008-00
Superseded by 98507-05008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
CABLE, BRAKE
3Y0-26341-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#13
BOOT, CABLE
1E6-26342-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, CLEVIS
90240-08013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
JOINT, CABLE
156-26347-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CABLE, CLUTCH
3Y0-26335-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOOT, CABLE
1E6-26342-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#20
BAND
3Y1-26397-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#21
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#27
GUARD, BRUSH 1
3Y0-26141-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#28
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$9.49 | ||
|
Unavailable |
|||
|
#33
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$4.75 | ||
|
Unavailable |
|||
|
#34
GUARD, BRUSH 2
3Y0-26142-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#35
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Unavailable |
|||
|
#36
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Unavailable |
|||
|
#37
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Unavailable |
|||
|
#38
NUT
95380-06700-00
|
$7.49 | ||
|
Unavailable |
|||
