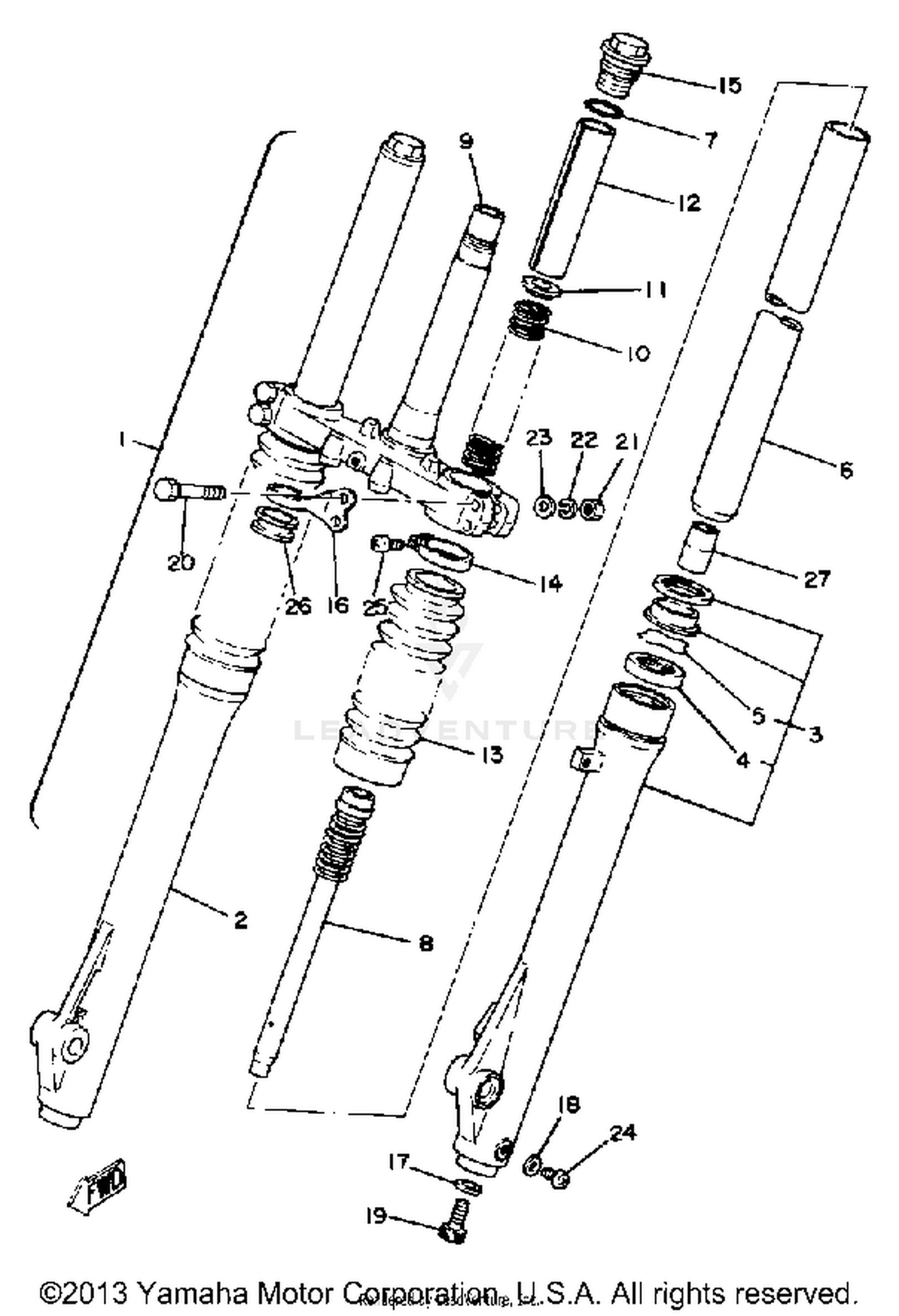

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
3Y0-23100-00-00
|
$186.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 2
3Y0-23136-00-38
|
$116.99 | ||
|
Unavailable |
|||
|
#3
TUBE, OUTER 1
3Y0-23126-00-38
|
$85.99 | ||
|
Unavailable |
|||
|
#4
OIL SEAL
48Y-23145-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, SNAP
4A1-23156-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
INNER TUBE 1
3Y0-23110-00-00
|
$147.99 | ||
|
Unavailable |
|||
|
#7
GASKET
1W1-23114-L0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CYLINDER, FRTFRK
3Y0-23170-00-00
|
$26.22 | ||
|
Unavailable |
|||
|
#9
UNDER BRACKET
3Y0-23340-00-00
|
|||
|
Unavailable |
|||
|
#10
SPRING, FRONT FORK
3Y0-23141-00-00
|
$12.72 | ||
|
Unavailable |
|||
|
#11
SEAT, SPRING UPPER
1W1-23142-L0-00
|
$13.49 | ||
|
Unavailable |
|||
|
#12
SPACER
1W1-23118-L0-00
|
$3.16 | ||
|
Unavailable |
|||
|
#13
BOOT, FRONT FORK
2X3-23191-M0-00
|
$42.16 | ||
|
Unavailable |
|||
|
#14
BAND, BOOT
341-92090-60-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, CAP
2X7-23111-00-00
|
$17.16 | ||
|
Unavailable |
|||
|
#16
HOLDER, CABLE 1
3Y0-23318-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#17
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
90101-08340-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, BOOT BAND
509-23194-L0-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#26
GUIDE, CABLE
1W1-23389-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPINDLE, TAPER
39K-23173-00-00
|
$24.99 | ||
|
Unavailable |
|||
