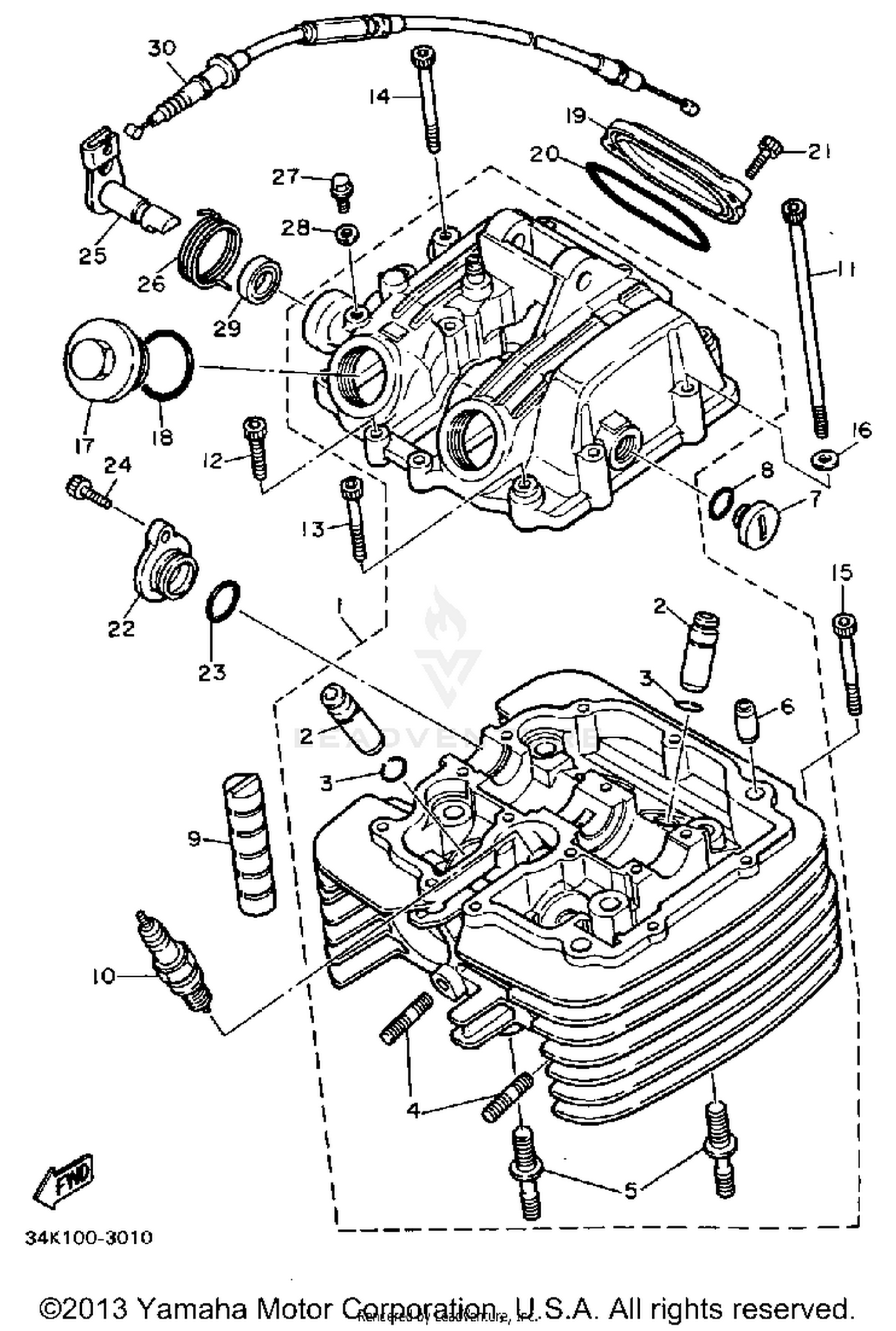

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSEMBLY
34K-11101-03-00
|
$854.99 | ||
|
Unavailable |
|||
|
#2
GUIDE, VALVE 1
4H7-11133-10-00
Superseded by 4H7-11133-11-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP
93440-12052-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, STUD
90116-06475-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, STUD
90116-10378-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, DOWEL
99510-10114-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG, STRAIGHT SCREW
90340-14079-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
93210-14369-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
ABSORBER 3
583-11127-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
D7EA NGK SPLUG 10P
NGK-D7EA0-00-00
Superseded by D7E-A0000-00-00
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
91316-06125-00
Superseded by 91317-06125-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
91316-06040-00
Superseded by 91317-06040-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
91316-06055-00
Superseded by 91317-06055-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
91316-06050-00
Superseded by 91317-06050-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLUG, VIEWER
1H2-11186-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING
93210-32172-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, CYLINDER HEAD SIDE 3
5Y1-11187-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
93210-62446-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
91316-06018-00
Superseded by 91317-06018-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP,TENSIONER CASE
34K-12215-01-00
Superseded by 99999-03124-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING
93210-19522-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
91316-06020-00
Superseded by 91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CAM, DCOMP
5Y1-12288-00-00
Superseded by 1JK-12288-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRING, TORSION
90508-18551-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
90109-06418-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
OIL SEAL (SD 12-22-5 HS)
93102-12321-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
CABLE, DCOMP
5Y1-12292-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
