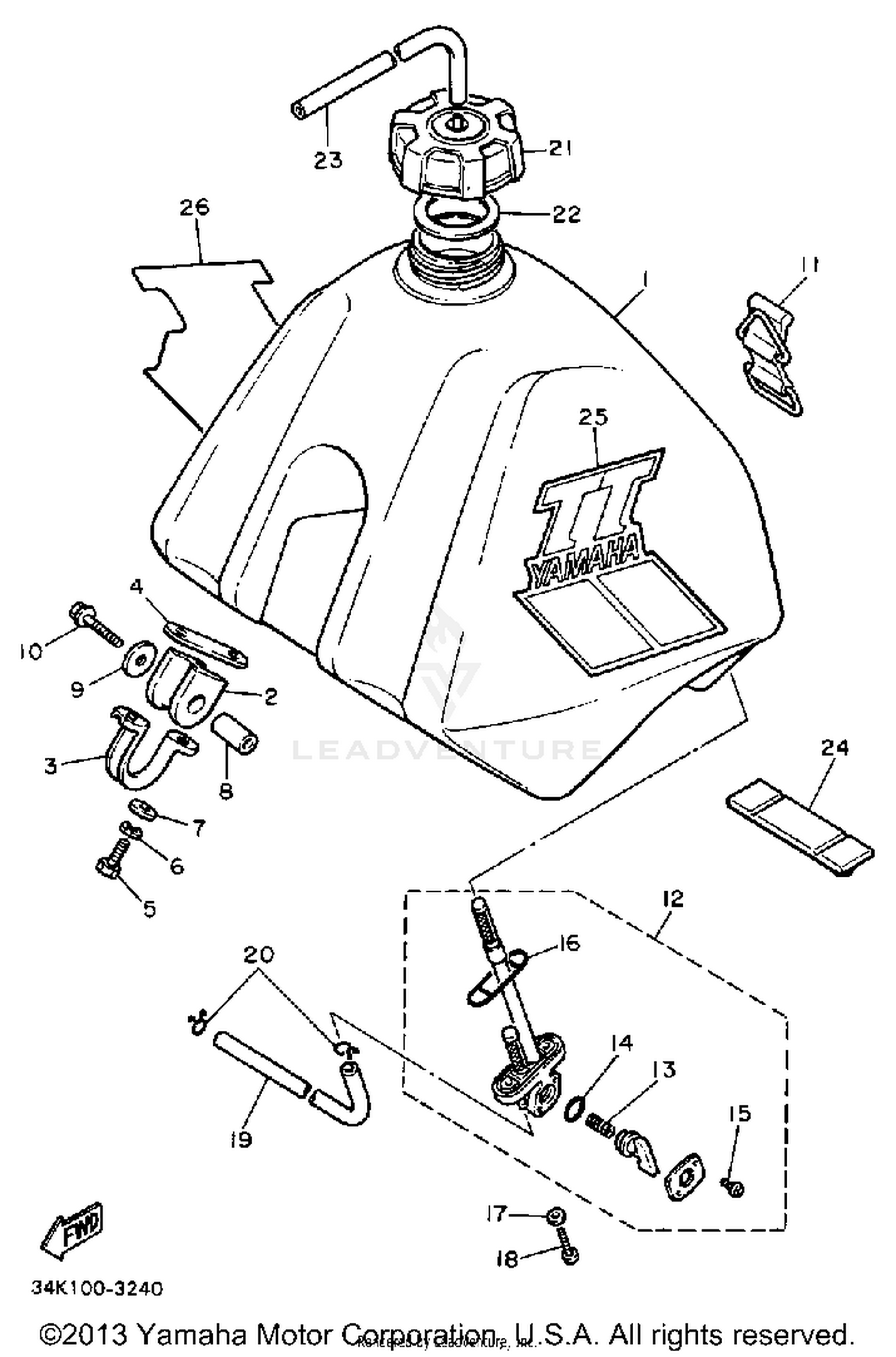

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
34K-24110-01-00
|
$668.99 | ||
|
Unavailable |
|||
|
#2
DAMPER, LOCATING 2
1W1-24182-01-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER, DAMPER
1W1-24144-01-00
|
$16.49 | ||
|
Unavailable |
|||
|
#4
PLATE
34K-2413X-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#5
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, LEVER 1
90387-07393-00
Superseded by 36Y-83913-01-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-06407-00
Superseded by 90201-06747-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, WITH WASHER
90119-06022-00
|
$2.15 | ||
|
Unavailable |
|||
|
#11
BAND, TANK FITTING 1
59V-24173-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
FUEL COCK ASSY 1
34K-24500-01-00
Superseded by 34K-24500-02-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING
357-24529-10-00
|
$2.37 | ||
|
Unavailable |
|||
|
#14
SEAL, COCK
4X8-24534-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD
98580-06008-00
Superseded by 97885-06008-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
4X8-24512-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE (L110)
90445-10456-00
Superseded by 90445-10752-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#21
CAP ASSY
1UY-24610-00-00
Superseded by 5MV-24610-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET, CAP
3R9-24612-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#23
PIPE 5
90445-09777-00
Superseded by 5RB-24315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
DAMPER, LOCATING 1
34K-24181-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#25
EMBLEM 3
34K-24163-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#
EMBLEM 3
34K-24163-10-00
|
$19.49 | ||
|
Unavailable |
|||
|
#26
EMBLEM 4
34K-24164-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#
EMBLEM 4
34K-24164-10-00
|
$29.99 | ||
|
Unavailable |
|||
