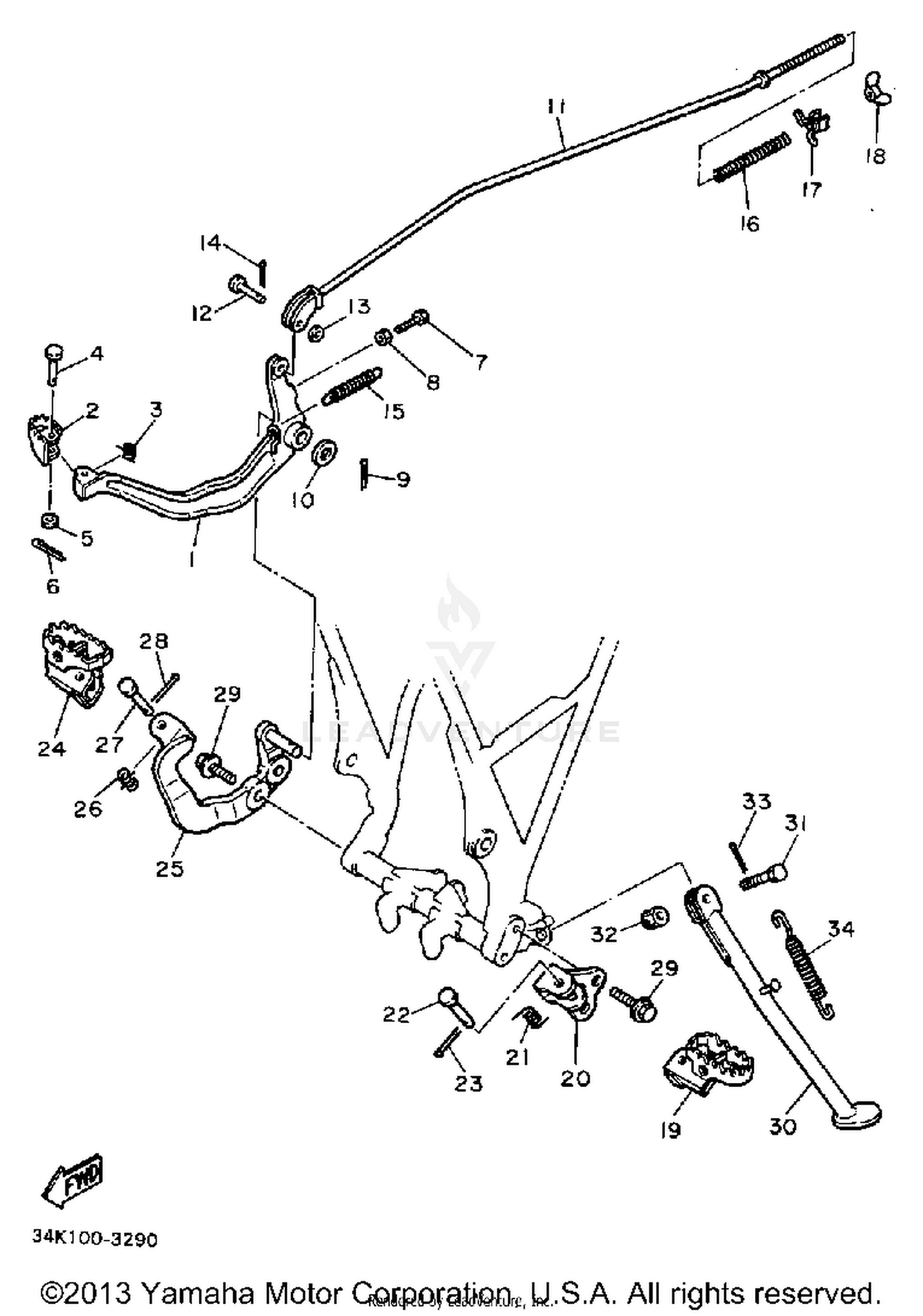

Stand-footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
36A-27211-01-90
|
$40.99 | ||
|
Unavailable |
|||
|
#2
PEDAL, BRAKE
3R8-27242-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#3
SPRING, TORSION
90508-14429-00
|
$4.50 | ||
|
Unavailable |
|||
|
#4
PIN, CLEVIS
91701-06028-00
Superseded by 91702-06028-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
90101-06288-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, COTTER
91401-30020-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-14411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROD, BRAKE
34K-27231-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#12
PIN, CLEVIS
90240-06103-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Unavailable |
|||
|
#15
SPRING, TENSION
90506-18305-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, COMPRESSION
90501-10245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAT, SPRING
1W2-27239-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#18
NUT
90179-06411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
FOOTREST 1
23X-27411-02-00
Superseded by 23X-27411-03-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET, FOOTREST 1
34K-27412-00-R4
|
$33.99 | ||
|
Unavailable |
|||
|
#21
UNAVAILABLE IN PRICE BOOK
90508-20483-00
|
|||
|
Unavailable |
|||
|
#22
PIN, CLEVIS
90240-10101-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
UNAVAILABLE IN PRICE BOOK
34K-27412-00-00
|
|||
|
Unavailable |
|||
|
#25
BRACKET, FOOTREST 2
34K-27422-00-R4
|
$87.99 | ||
|
Unavailable |
|||
|
#26
SPRING, TORSION
90508-20583-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, CLEVIS
90240-10101-00
|
$11.49 | ||
|
Unavailable |
|||
|
#28
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE
95811-10025-00
Superseded by 95817-10025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
STAND, SIDE
26A-27311-02-33
|
$35.99 | ||
|
Unavailable |
|||
|
#31
BOLT, WITH HOLE
90102-10051-00
|
$7.99 | ||
|
Unavailable |
|||
|
#32
NUT, CASTLE
95303-10900-00
Superseded by 95307-10900-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIN, COTTER
91490-20025-00
|
$1.99 | ||
|
Unavailable |
|||
|
#34
SPRING, TENSION
90507-29008-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
