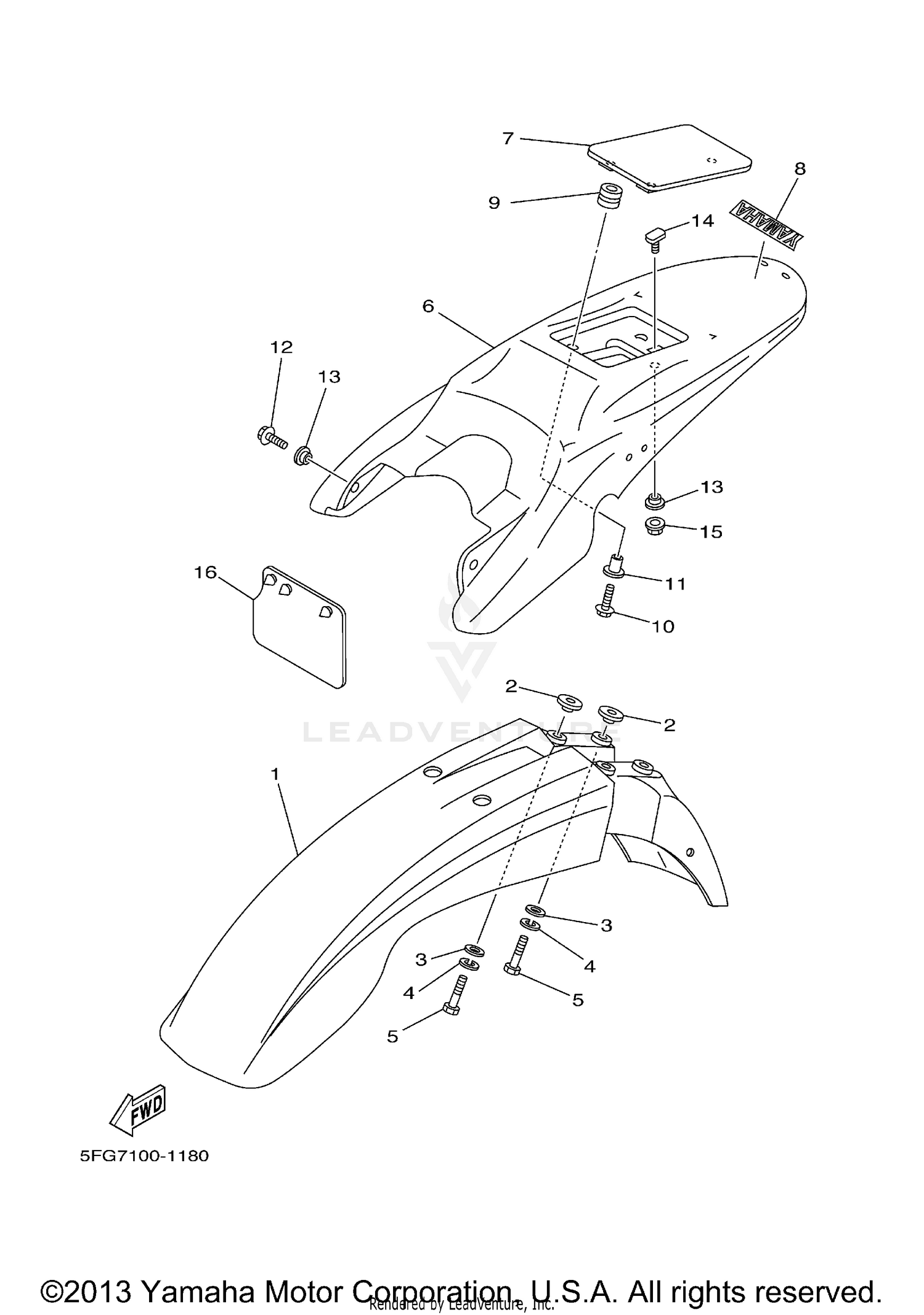

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FENDER COMP.
5FG-F1501-00-00
Superseded by 5FG-F1501-01-00
|
$100.99 | ||
|
Unavailable |
|||
|
#2
COLLAR
90387-06681-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-06W10-00
Superseded by 90201-062A8-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
9290M-06100-00
|
$0.25 | ||
|
Unavailable |
|||
|
#5
BOLT
9700M-06030-00
Superseded by 9702M-06030-00
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#6
FENDER, REAR
4VW-F1611-20-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE 1
5FG-F162G-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
EMBLEM, YAMAHA
99241-00080-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GROMMET
90480-14102-00
Superseded by 90480-14023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
9580M-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-06388-00
Superseded by 90387-06158-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95807-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-06W41-00
Superseded by 90387-06158-00
|
$7.49 | ||
|
Unavailable |
|||
|
#14
BOLT
90109-064A5-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, FLANGE
9570M-06500-00
Superseded by 95707-06500-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
FLAP
4AN-F1691-00-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
