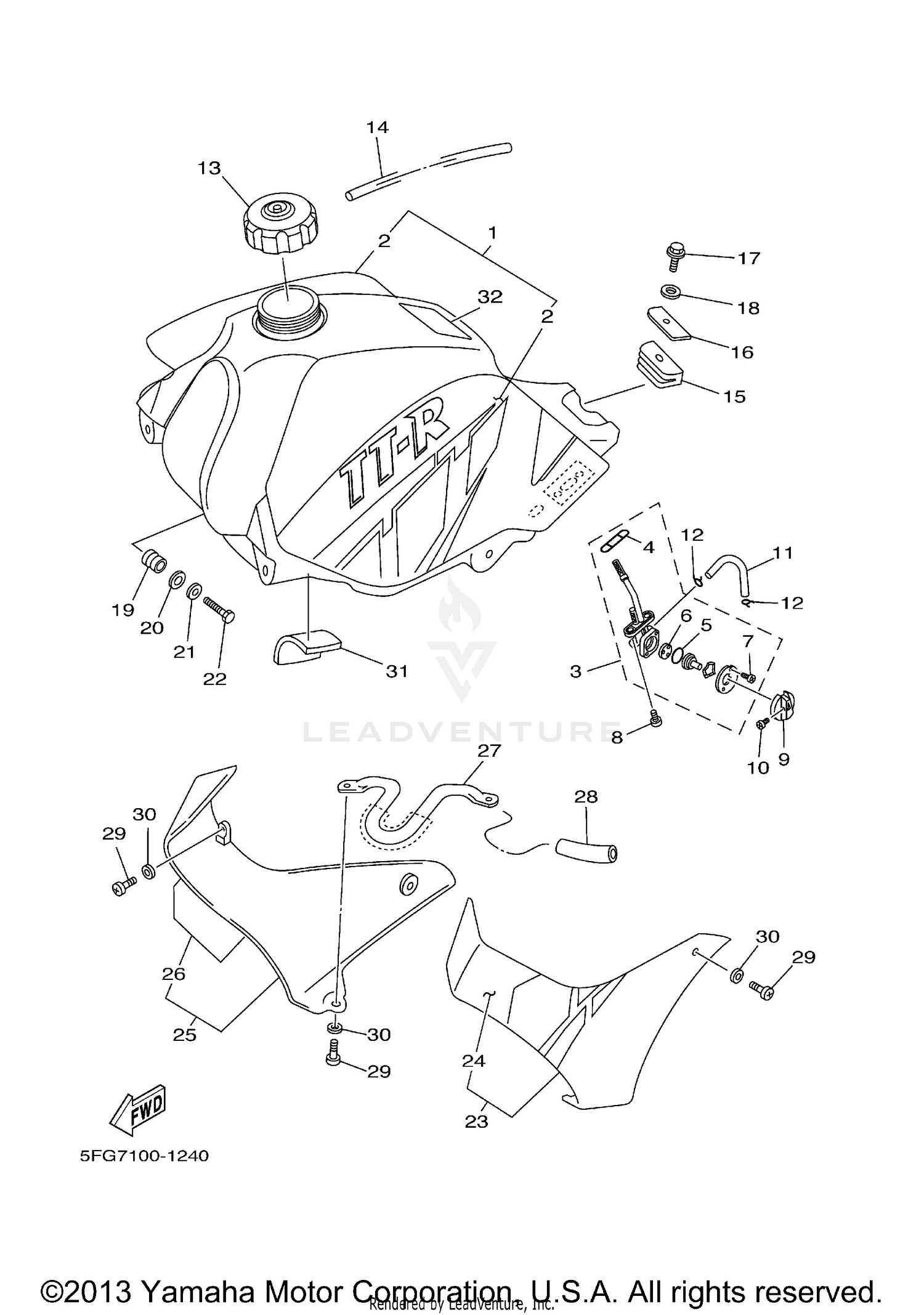

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK ASSY
5FG-F4100-20-00
|
$778.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET
5FG-F4240-20-00
|
$89.99 | ||
|
Unavailable |
|||
|
#3
FUEL COCK ASSY 1
3RW-24500-00-00
Superseded by 3RW-24500-01-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
4X8-24512-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAL, COCK
3AJ-24534-00-00
Superseded by 3AJ-24534-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
VALVE PACKING
3AJ-24523-00-00
Superseded by 3AC-24523-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
97801-03008-00
Superseded by 98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
LEVER, COCK
46X-24524-00-00
Superseded by 1YH-F4524-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
90157-03122-00
Superseded by 98517-03008-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE
90445-12W09-00
|
$0.10 | ||
|
Unavailable |
|||
|
#12
CLIP
90467-11W03-00
|
$0.05 | ||
|
Unavailable |
|||
|
#13
CAP ASY
5FG-F4610-00-00
Superseded by 5CH-F4610-00-00
|
$53.99 | ||
|
Unavailable |
|||
|
#14
HOSE
90445-09W01-00
|
$7.99 | ||
|
Unavailable |
|||
|
#15
DAMPER, LOCATING 2
4VW-F4182-00-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPECIAL
4VW-F4186-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#17
BOLT
97027-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER
9290M-06100-00
|
$0.25 | ||
|
Unavailable |
|||
|
#19
GROMMET
90480-15W02-00
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPECIAL
4LR-F4186-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#21
WASHER
9290M-06100-00
|
$0.25 | ||
|
Unavailable |
|||
|
#22
BOLT, HEX
97027-06035-00
Superseded by 97017-06035-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCOOP, AIR 1
5FG-F137A-20-00
Superseded by 4VW-F137W-30-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
GRAPHIC 3
5FG-F174G-20-00
|
$55.99 | ||
|
Unavailable |
|||
|
#25
SCOOP, AIR 2
5FG-F137B-20-00
Superseded by 4VW-F137X-30-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
GRAPHIC 4
5FG-F174H-20-00
|
$39.99 | ||
|
Unavailable |
|||
|
#27
BRACKET, COVER
4VW-F139T-00-00
|
$126.99 | ||
|
Unavailable |
|||
|
#28
DAMPER 2
4VW-F139U-01-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, BIND
9890M-06012-00
Superseded by 98907-06012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLAIN
9290M-06200-00
Superseded by 92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#31
DAMPER, PLATE 1
4VW-F414H-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#32
PLATE, EPA 3 (CALIFORNIA)
5FG-2179T-20-00
|
$4.45 | ||
|
Unavailable |
|||
