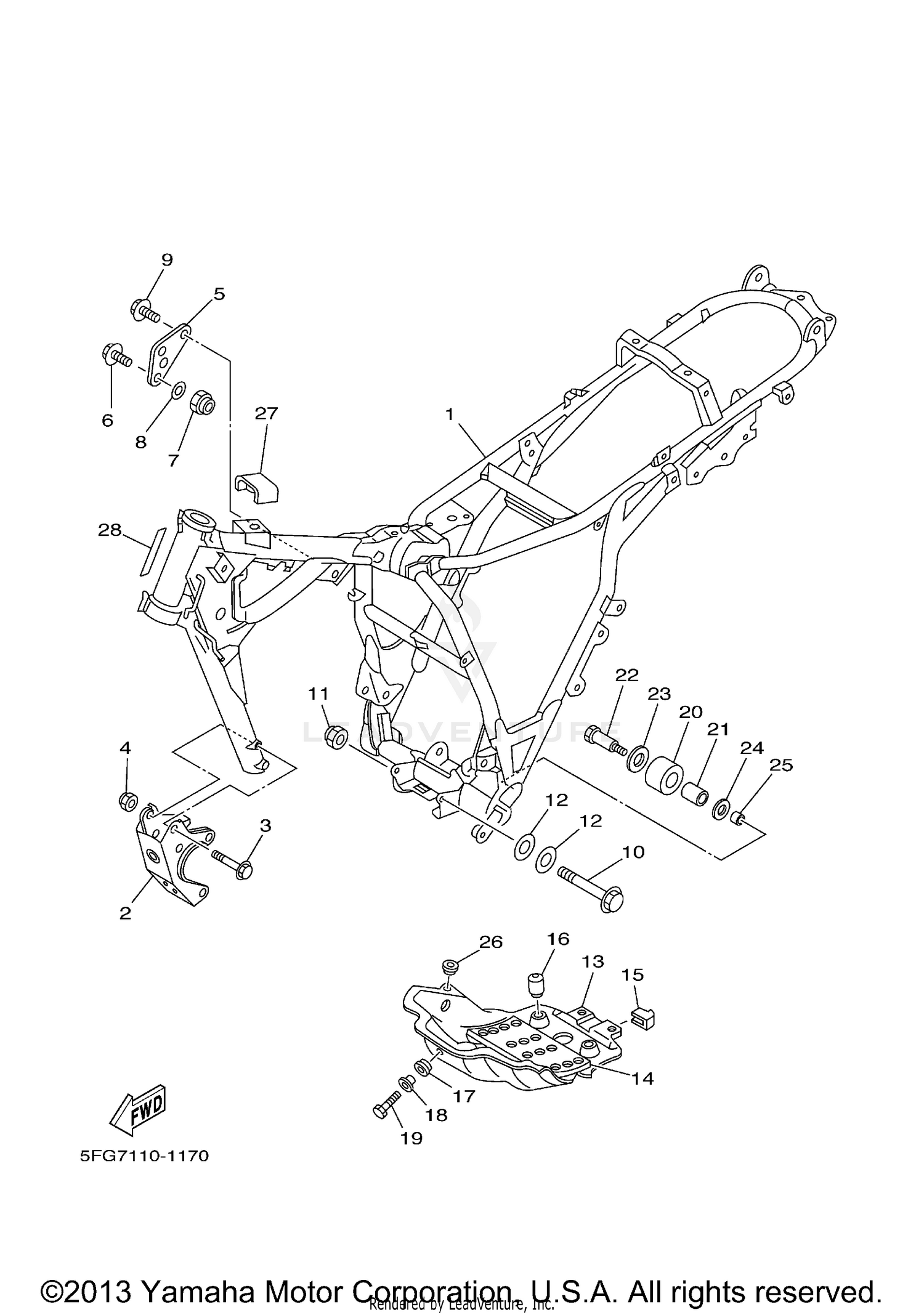

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
4VW-F1110-00-P0
|
$1,349.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
STAY, ENGINE 2
3RW-21316-01-P9
|
$61.99 | ||
|
Unavailable |
|||
|
#3
BOLT, FLANGE
95817-08065-00
Superseded by 90105-084A1-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, SELF-LOCKING
95607-08200-00
Superseded by 90185-08169-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAY, ENGINE 2
1KH-21315-01-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
95817-08050-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SELF-LOCKING
95607-08200-00
Superseded by 90185-08169-00
|
$7.49 | ||
|
Unavailable |
|||
|
#8
WASHER, PLATE
90201-08366-00
Superseded by 90201-094G1-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
90105-08408-00
Superseded by 90105-08066-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
90105-08024-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SELF-LOCKING
95607-08200-00
Superseded by 90185-08169-00
|
$7.49 | ||
|
Unavailable |
|||
|
#12
WASHER, PLATE
90201-08366-00
Superseded by 90201-094G1-00
|
$8.49 | ||
|
Unavailable |
|||
|
#13
PROTECTOR, ENGINE
4VW-21471-00-00
|
$208.99 | ||
|
Unavailable |
|||
|
#14
DAMPER, RUBBER 1
4VW-F1485-00-00
Superseded by 1KH-21485-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER, RUBBER 1
36X-21485-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER, RUBBER 1
34L-21485-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GROMMET
90480-14102-00
Superseded by 90480-14023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
90387-07391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
97027-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#20
TENSIONER
30X-22178-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BUSH
4V4-22184-00-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
90109-08705-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-13409-00
Superseded by 90201-133P2-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90201-08753-00
Superseded by 90201-081R9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-085E1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SEAL 1
2J5-21732-00-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#27
DAMPER, LOCATING 5
4LR-F4185-00-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLATE, EPA
5FG-2179X-00-00
|
$4.40 | ||
|
Unavailable |
|||
