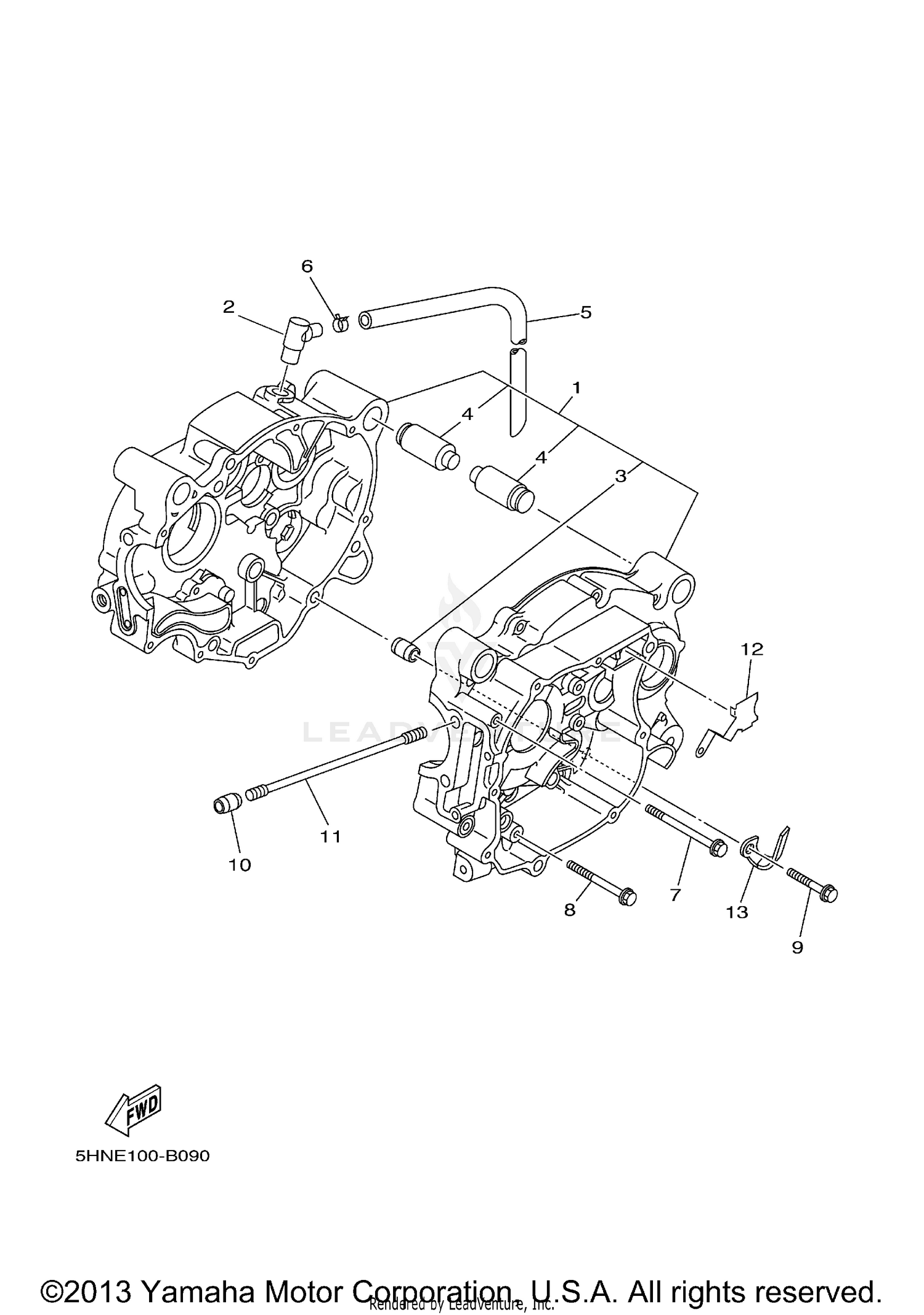

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY
5HN-15100-11-00
|
$546.71 | ||
|
Unavailable |
|||
|
#2
BREATHER
4GL-15371-01-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER, ENGINE MOUNT
4GL-15316-00-00
Superseded by 4S9-E5316-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE (L300)
90445-12002-00
|
$8.99 | ||
|
Unavailable |
|||
|
#6
CLIP
90467-13064-00
Superseded by 90467-13133-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
90105-064A6-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95027-06060-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
95027-06040-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL
99530-10114-00
|
$2.40 | ||
|
Unavailable |
|||
|
#11
BOLT, STUD
90116-08573-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE
5HN-15191-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#13
CLAMP
90465-06376-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
