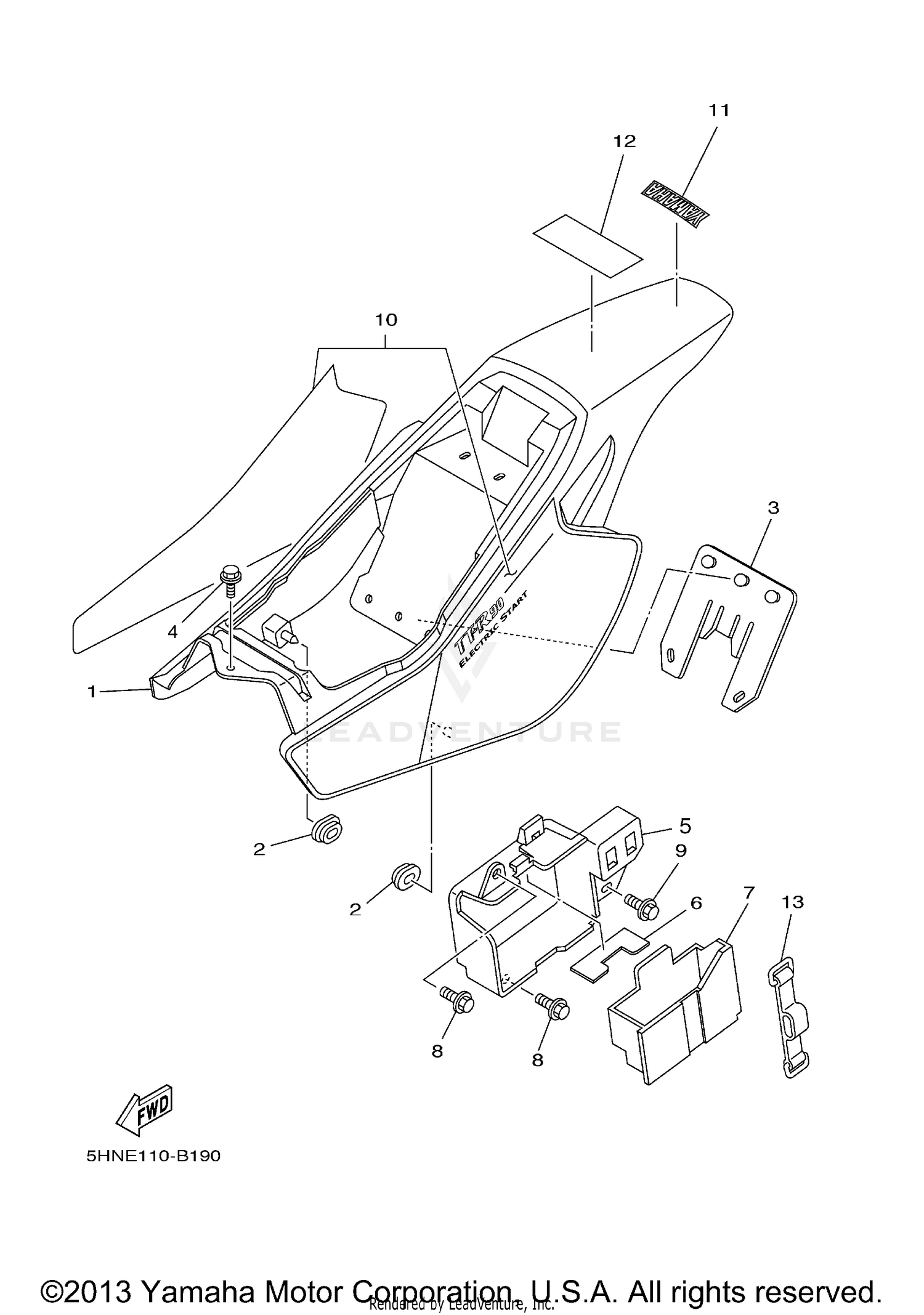

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
5HN-21711-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GROMMET
90480-01558-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLAP
4V0-21621-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#4
SCREW, WITH WASHER
90159-06078-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOX, BATTERY
5HN-2177G-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER
5HN-21746-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER
5HN-2172W-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, WITH WASHER
90119-06094-00
Superseded by 90119-06242-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, WITH WASHER
90119-06118-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GRAPHIC SET 1
5HN-2173L-30-00
|
$196.99 | ||
|
Unavailable |
|||
|
#11
EMBLEM YAMAHA
4ES-2153E-01-00
Superseded by 4ES-2153E-02-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, EPA 3 (CALIFORNIA)
5HN-2179T-30-00
|
$2.50 | ||
|
Unavailable |
|||
|
#13
BAND, BATTERY
34M-82131-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
