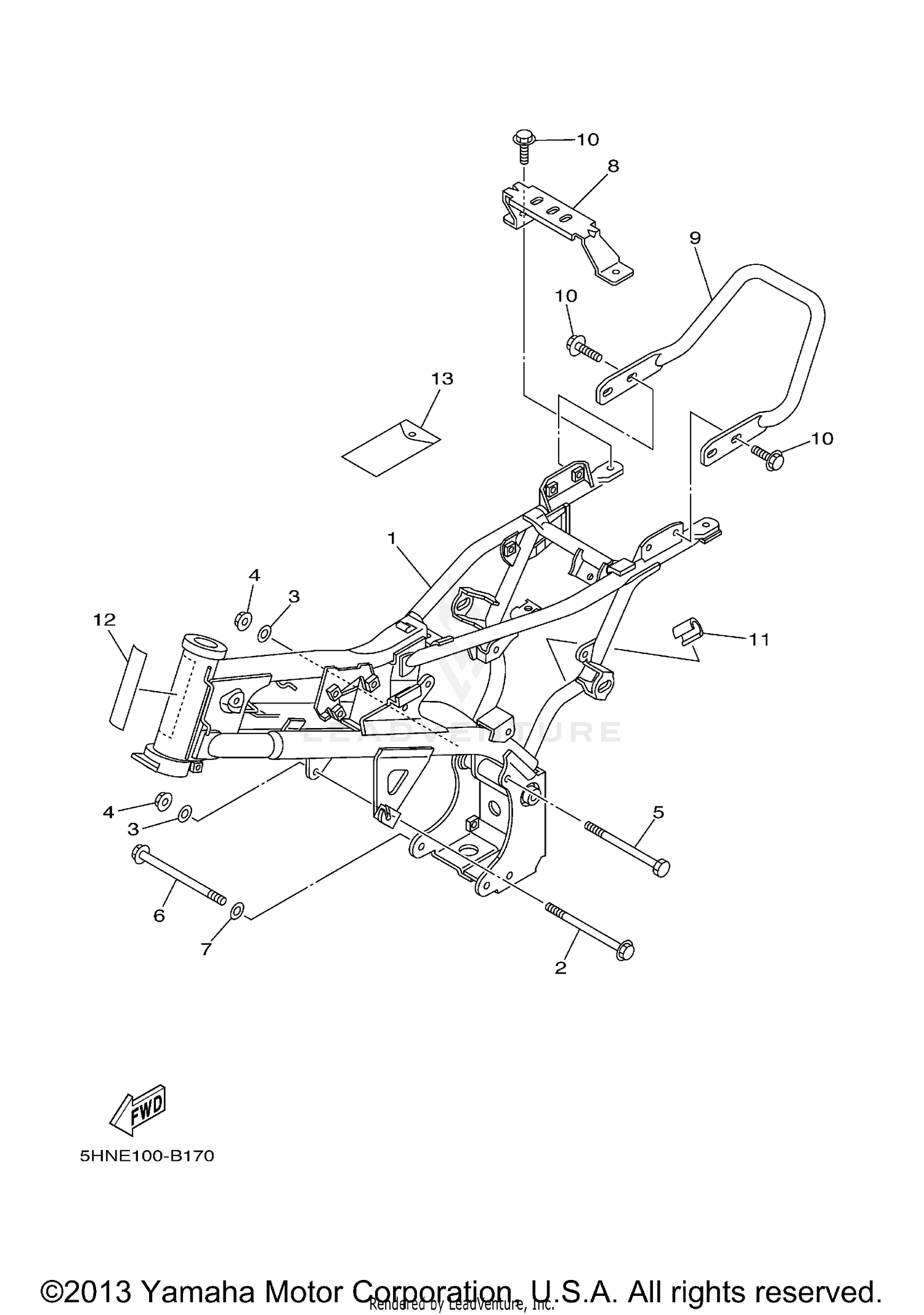

2003 Yamaha TT-R 90 FRAME OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
5HN-21110-10-00
|
$597.99 | ||
|
Unavailable |
|||
|
#2
BOLT, FLANGE
90105-08024-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER
92907-08200-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT,FLANGE (JN5)
95707-08500-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
90109-08386-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT,WASHER BASED
90105-10052-00
Superseded by 90109-101A0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLAIN
92907-10200-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, SEAT
5HN-21391-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
HANDLE, STANDING
5HN-2127A-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95817-06014-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER
5HN-2139X-00-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, EPA
5HN-2179X-00-00
|
$1.85 | ||
|
Unavailable |
|||
|
#13
TOOL KIT
5HN-28100-00-00
Superseded by 5HN-28100-01-00
|
$13.99 | ||
|
Unavailable |
|||
