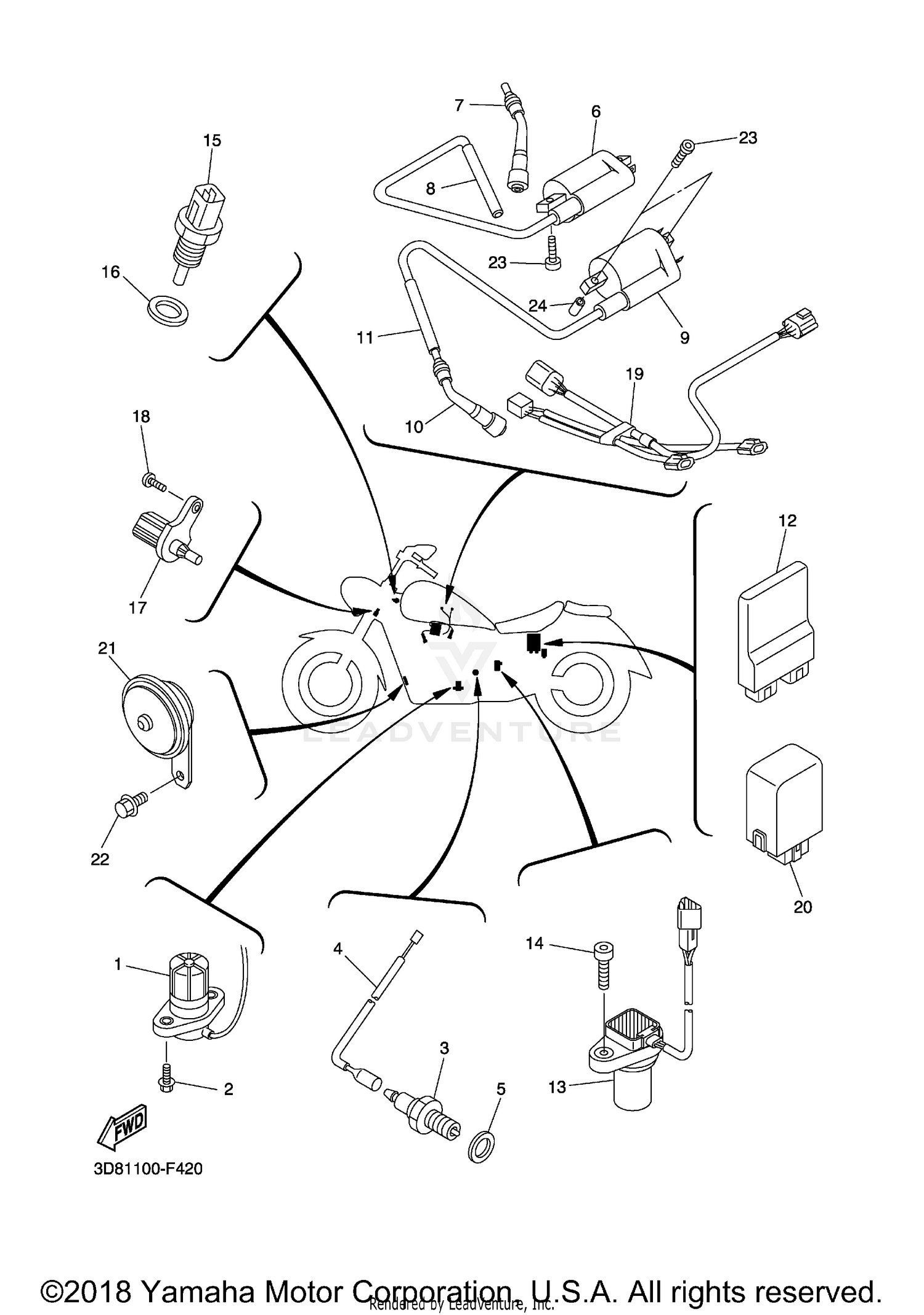

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL LEVEL GAUGE ASSY
3D8-85720-00-00
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE
95022-06016-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
NEUTRAL SWITCH ASSY
3GB-82540-01-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WIRE, SUB LEAD
3D8-82509-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET
90430-10148-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
IGNITION COIL ASSY
3D8-82310-00-00
Superseded by 3D8-82310-03-00
|
$55.99 | ||
|
Unavailable |
|||
|
#7
PLUG CAP ASSY
3D8-82370-00-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE
5RU-82353-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
IGNITION COIL ASSY
3D8-82310-10-00
Superseded by 3D8-82310-11-00
|
$50.99 | ||
|
Unavailable |
|||
|
#10
PLUG CAP ASSY
3D8-82370-00-00
|
$86.99 | ||
|
Unavailable |
|||
|
#11
HOSE
5RU-82353-00-00
|
$4.60 | ||
|
Unavailable |
|||
|
#12
ENGINE CONTROL UNIT ASSY
3D8-8591A-00-00
|
$594.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Sensor Speed
3D8-83755-00-00
Superseded by 3D8-83755-01-00
|
$127.99 | ||
|
Unavailable |
|||
|
#14
BOLT, HEXAGON SOCKET HEAD
91314-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
THERMOSENSOR ASSY
8CC-85790-01-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-12790-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SENSOR, AIR TEMPERATURE
5YU-85886-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
98502-05012-00
Superseded by 98517-05012-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
WIRE, SUB LEAD
3D8-82509-10-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
FLASHER RELAY ASSY
3D8-83350-00-00
Superseded by 3D8-83350-01-00
|
$103.99 | ||
|
Unavailable |
|||
|
#21
HORN
3D8-83371-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, WASHER BASED
90105-082A5-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEXAGON SOCKET HEAD
91380-06020-00
Superseded by 90110-06114-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE
90445-05003-00
Superseded by 90445-08029-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
