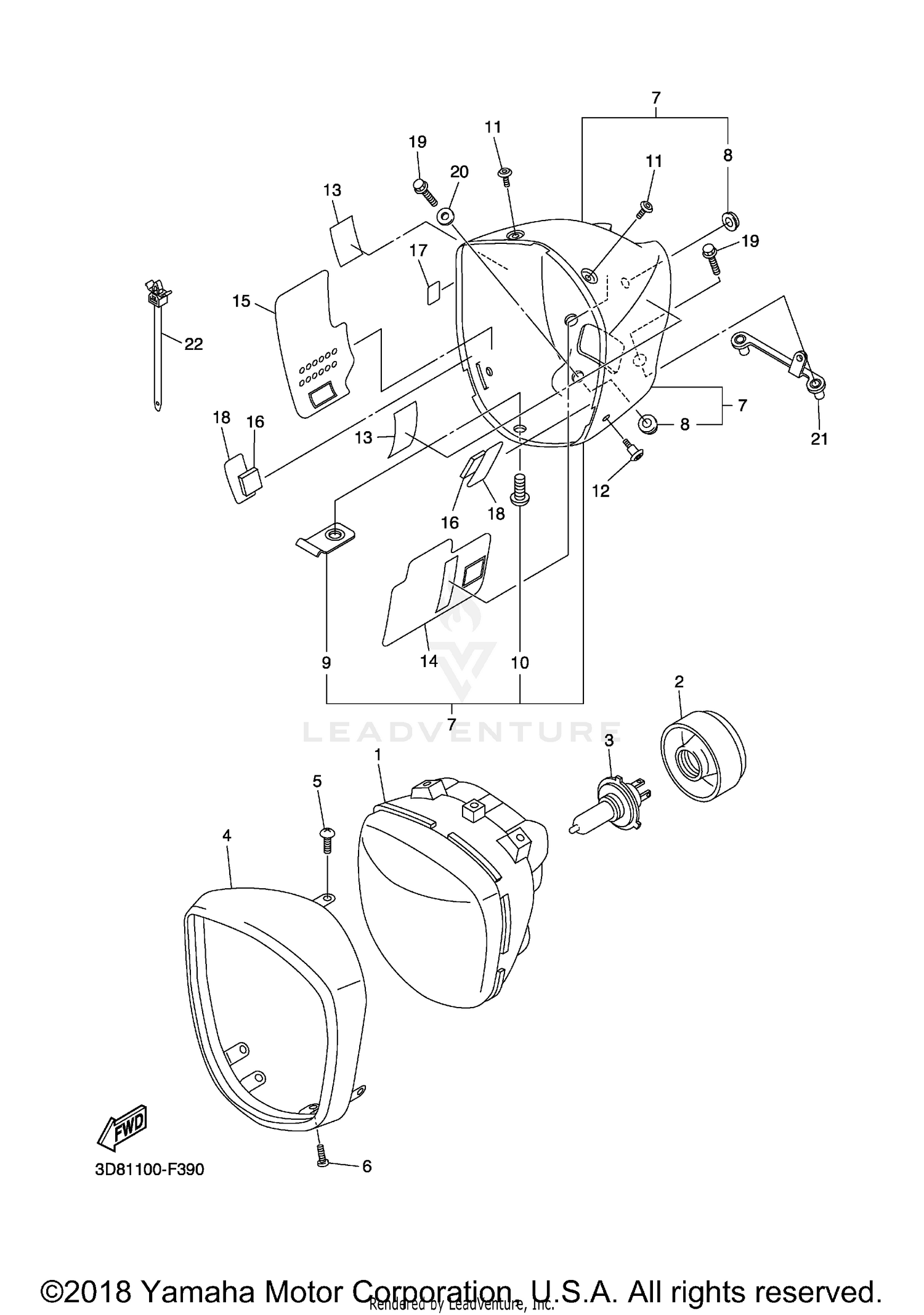

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LENS ASSY
3D8-84320-00-00
|
$388.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, SOCKET
5JW-84397-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BULB, HEADLIGHT (12V-60/55W)
5V2-84314-00-XX
Superseded by 8V0-84314-10-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
RIM, HEADLIGHT
3D8-84315-00-00
|
$150.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD
98502-05012-00
Superseded by 98517-05012-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, TAPPING
97702-40612-00
Superseded by 97780-40112-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#7
BODY ASSY
3D8-84330-00-P2
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BODY ASSY
3D8-84330-00-P3
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BODY ASSY
3D8-84330-00-P0
|
$145.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER, HEADLIGHT 1
42X-84366-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
STAY, 2
3D8-8431T-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#10
SCREW
3D8-84526-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEXAGON SOCKET HEAD
90111-05007-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEX. SOCKET BUTTON
90111-05020-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL 1
3SP-21732-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER, 1
3D8-8411T-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER, 2
3D8-8411U-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER, HEADLIGHT
3D8-84345-00-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#17
PROTECTOR
3MA-27491-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL 1
3D8-21575-00-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95022-06025-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-06175-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOLDER
3D8-84387-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP
90464-12036-00
Superseded by 90464-10112-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
