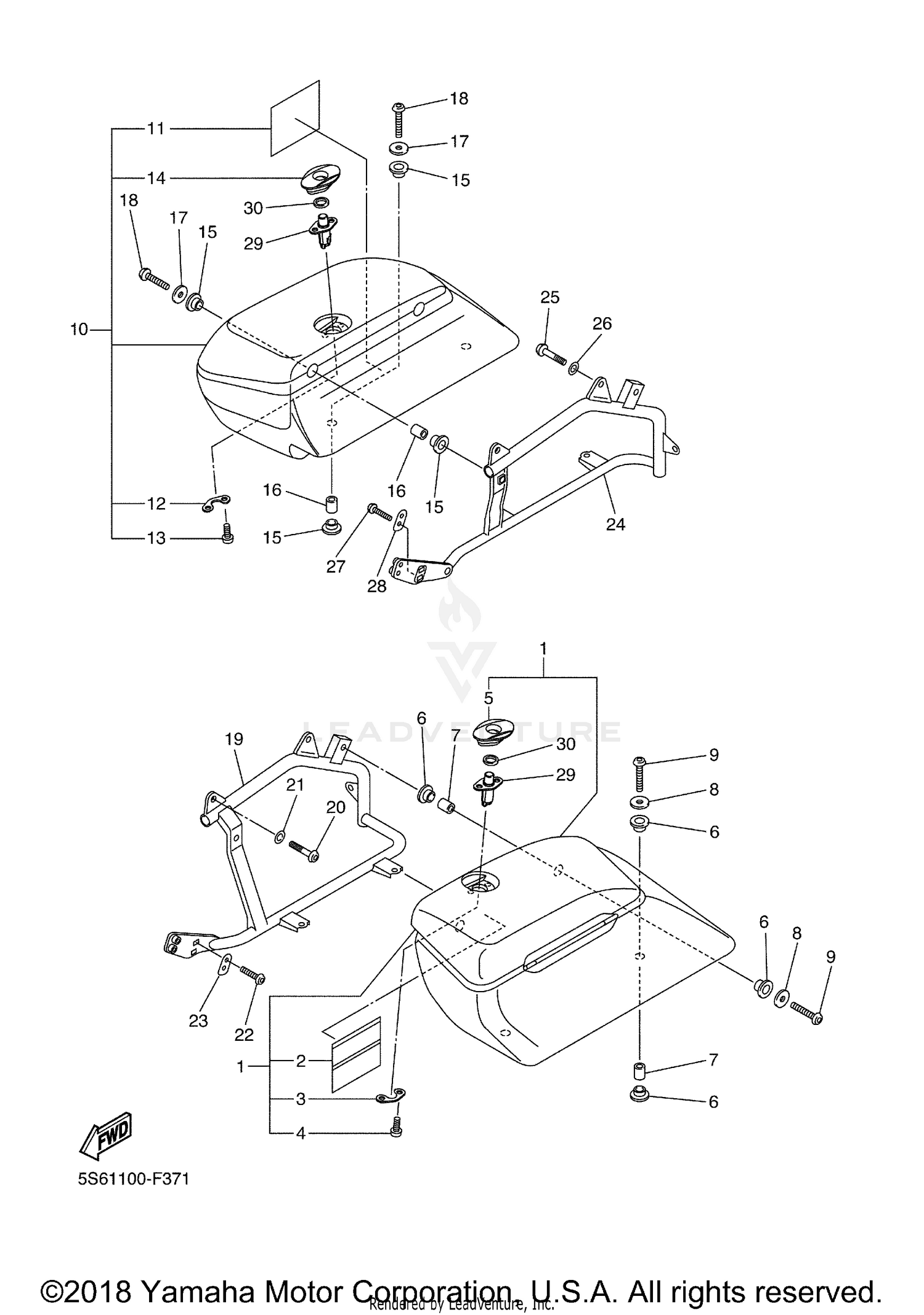

Saddlebag Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SADDLEBAG COMP. 1
5S6-F8430-00-00
Superseded by 5S6-F8430-01-00
|
$618.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
LABEL, CAUTION
5S6-F8446-00-00
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, LOCK 1
2C5-F848T-00-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, BUTTON HEAD
92014-05010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, LOCK ASSY 2
5S6-F8493-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#6
GROMMET
90480-20004-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-08077-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-065G8-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, BUTTON HEAD
92012-06025-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
SADDBAG COMP. 2
5S6-F8440-00-00
Superseded by 5S6-F8440-01-00
|
$566.99 | ||
|
Unavailable |
|||
|
#11
LABEL, CAUTION
5S6-F8446-00-00
|
$3.49 | ||
|
Unavailable |
|||
|
#12
PLATE, LOCK 1
2C5-F848T-00-00
|
$4.95 | ||
|
Unavailable |
|||
|
#13
BOLT, BUTTON HEAD
92014-05010-00
|
$7.49 | ||
|
Unavailable |
|||
|
#14
COVER LOCK ASSY 2
5S6-F849K-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GROMMET
90480-20004-00
|
$3.35 | ||
|
Unavailable |
|||
|
#16
COLLAR
90387-08077-00
|
$7.49 | ||
|
Unavailable |
|||
|
#17
WASHER, PLATE
90201-065G8-00
|
$7.49 | ||
|
Unavailable |
|||
|
#18
BOLT, BUTTON HEAD
92012-06025-00
|
$2.95 | ||
|
Unavailable |
|||
|
#19
FRAME, SADDLEBAG 1
5S6-28473-00-00
Superseded by 5S6-28473-01-00
|
$277.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, BUTTON HEAD
92012-08065-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER
92902-08200-00
|
$0.25 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEX. SOCKET BUTTON
90111-08046-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLATE
5S6-28417-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
FRAME, SADDLEBAG 2
5S6-28474-00-00
Superseded by 5S6-28474-01-00
|
$268.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, BUTTON HEAD
92012-08065-00
|
$7.49 | ||
|
Unavailable |
|||
|
#26
WASHER
92902-08200-00
|
$0.25 | ||
|
Unavailable |
|||
|
#27
BOLT, HEX. SOCKET BUTTON
90111-08046-00
|
$6.49 | ||
|
Unavailable |
|||
|
#28
PLATE
5S6-28417-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#29
LOCK ASSY. 1
5S6-28408-00-00
|
$150.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SEAL 1
5S6-28428-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
