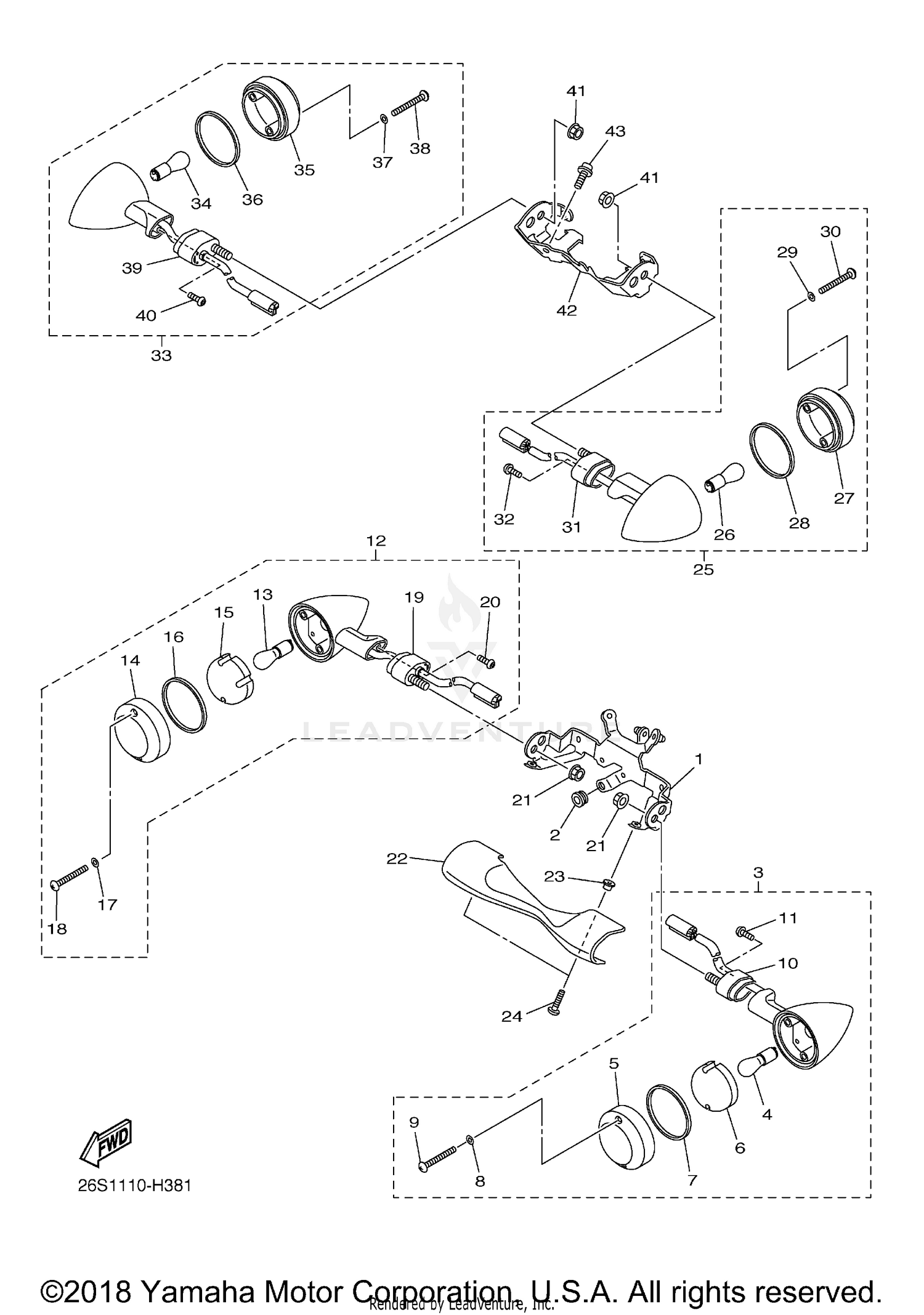

Flasher Light Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAY, HEADLIGHT
5S7-23174-00-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
FRONT FLASHER LIGHT ASSY 1
3D8-83310-00-00
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BULB (12V-21/5W)
1A2-84714-41-00
Superseded by 1A2-84714-50-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
LENS, FLASHER
3D8-83312-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
LENS, INNER 1
3D8-8333L-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, FLASHER LENS
3D8-83313-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
3D8-83348-00-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, TAPPING
97702-40630-00
Superseded by 97780-40130-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
STAY, FLASHER 2
3D8-83369-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, TAPPING
97702-40514-00
Superseded by 97707-40614-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#12
FRONT FLASHER LIGHT ASSY 2
3D8-83320-00-00
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BULB (12V-21/5W)
1A2-84714-41-00
Superseded by 1A2-84714-50-00
|
$13.99 | ||
|
Unavailable |
|||
|
#14
LENS, FLASHER
3D8-83312-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#15
LENS, INNER 1
3D8-8333L-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#16
GASKET, FLASHER LENS
3D8-83313-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#17
WASHER
3D8-83348-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#18
SCREW, TAPPING
97702-40630-00
Superseded by 97780-40130-00
|
$7.49 | ||
|
Unavailable |
|||
|
#19
STAY, FLASHER 2
3D8-83369-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#20
SCREW, TAPPING
97702-40514-00
Superseded by 97707-40614-00
|
$3.90 | ||
|
Unavailable |
|||
|
#21
NUT, WITH WASHER
95702-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER, OUTER 1
3D8-23122-10-00
|
$163.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR
90387-06255-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, HEX. SOCKET BUTTON
90111-05037-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
REAR FLASHER LIGHT ASSY 1
3D8-83330-00-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BULB, FLASHER (12V21W)
3D8-83311-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
LENS, FLASHER
3D8-83312-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#28
GASKET, FLASHER LENS
3D8-83313-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#29
WASHER
3D8-83348-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#30
SCREW, TAPPING
97702-40630-00
Superseded by 97780-40130-00
|
$7.49 | ||
|
Unavailable |
|||
|
#31
STAY, FLASHER 2
3D8-83369-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#32
SCREW, TAPPING
97702-40514-00
Superseded by 97707-40614-00
|
$3.90 | ||
|
Unavailable |
|||
|
#33
REAR FLASHER LIGHT ASSY 2
3D8-83340-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BULB, FLASHER (12V21W)
3D8-83311-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#35
LENS, FLASHER
3D8-83312-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#36
GASKET, FLASHER LENS
3D8-83313-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#37
WASHER
3D8-83348-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#38
SCREW, TAPPING
97702-40630-00
Superseded by 97780-40130-00
|
$7.49 | ||
|
Unavailable |
|||
|
#39
STAY, FLASHER 2
3D8-83369-00-00
|
$35.99 | ||
|
Unavailable |
|||
|
#40
SCREW, TAPPING
97702-40514-00
Superseded by 97707-40614-00
|
$3.90 | ||
|
Unavailable |
|||
|
#41
NUT, WITH WASHER
95702-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Unavailable |
|||
|
#42
STAY, FLASHER 1
5S7-83368-00-00
Superseded by 5S7-83368-10-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, HEXAGON SOCKET HEAD
90110-06276-00
Superseded by 90110-06219-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
