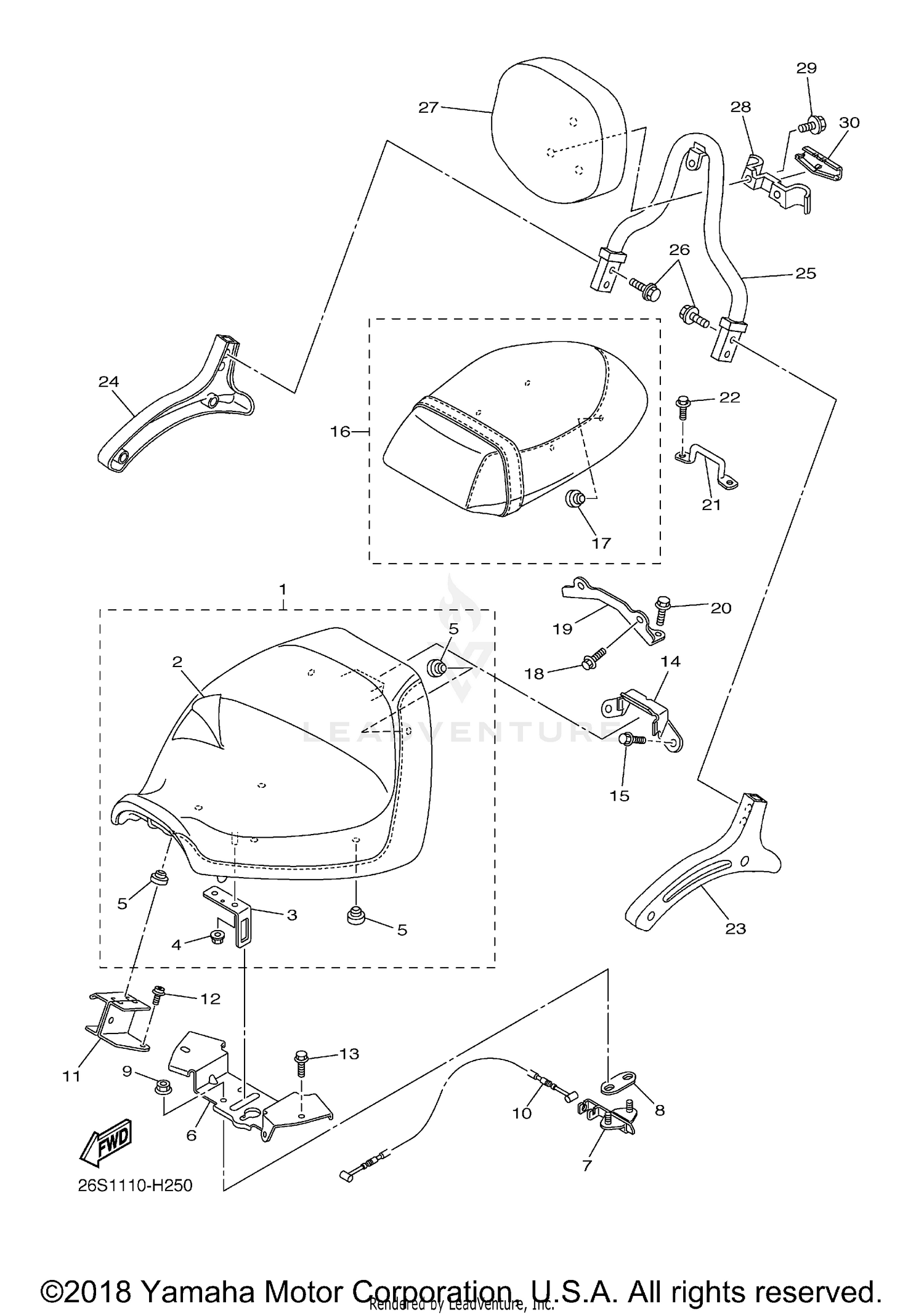

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSY
5S7-24710-01-00
Superseded by 5S7-24710-02-00
|
$310.99 | ||
|
Unavailable |
|||
|
#2
SEAT COVER COMP.
5S7-2470F-00-00
Superseded by 5S7-2470F-01-00
|
$129.99 | ||
|
Unavailable |
|||
|
#3
BRACKET, SEAT
4NK-24728-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, WITH WASHER
95702-06500-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
PAD, SEAT
22W-24741-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, SEAT 1
5S7-21341-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAT LOCK ASSY
4BP-24705-00-00
Superseded by 4BP-24780-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE
4BP-24792-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, WITH WASHER
95702-06500-00
|
$2.25 | ||
|
Unavailable |
|||
|
#10
CABLE, SEAT LOCK
5S7-2478E-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, SEAT LEVER 2
5S7-2475J-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
90110-06245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95822-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET
5S7-2475N-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
90105-08126-00
Superseded by 95022-08012-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
TANDEM SEAT ASSY
5S7-24750-01-00
|
$343.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PAD, SEAT
22W-24741-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#18
BOLT, FLANGE
95022-08012-00
|
$11.49 | ||
|
Unavailable |
|||
|
#19
BRACKET, SEAT LEVER 1
1D7-2475H-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
95022-08012-00
|
$11.49 | ||
|
Unavailable |
|||
|
#21
BRACKET 6
5S7-2475R-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95022-08012-00
|
$11.49 | ||
|
Unavailable |
|||
|
#23
GRIP 1
26S-2164A-00-00
|
$236.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
GRIP 2
26S-2164E-00-00
|
$236.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
STAY 1
26S-2164F-00-00
|
$428.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (SMALL HEAD)
95024-08012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BACK REST ASSY
5GA-2840F-20-00
Superseded by 5GA-2840F-21-00
|
$220.99 | ||
|
Unavailable |
|||
|
#28
STAY 2
5GA-2164G-00-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (SMALL HEAD)
95024-06010-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#30
EMBLEM
4NL-24786-02-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
