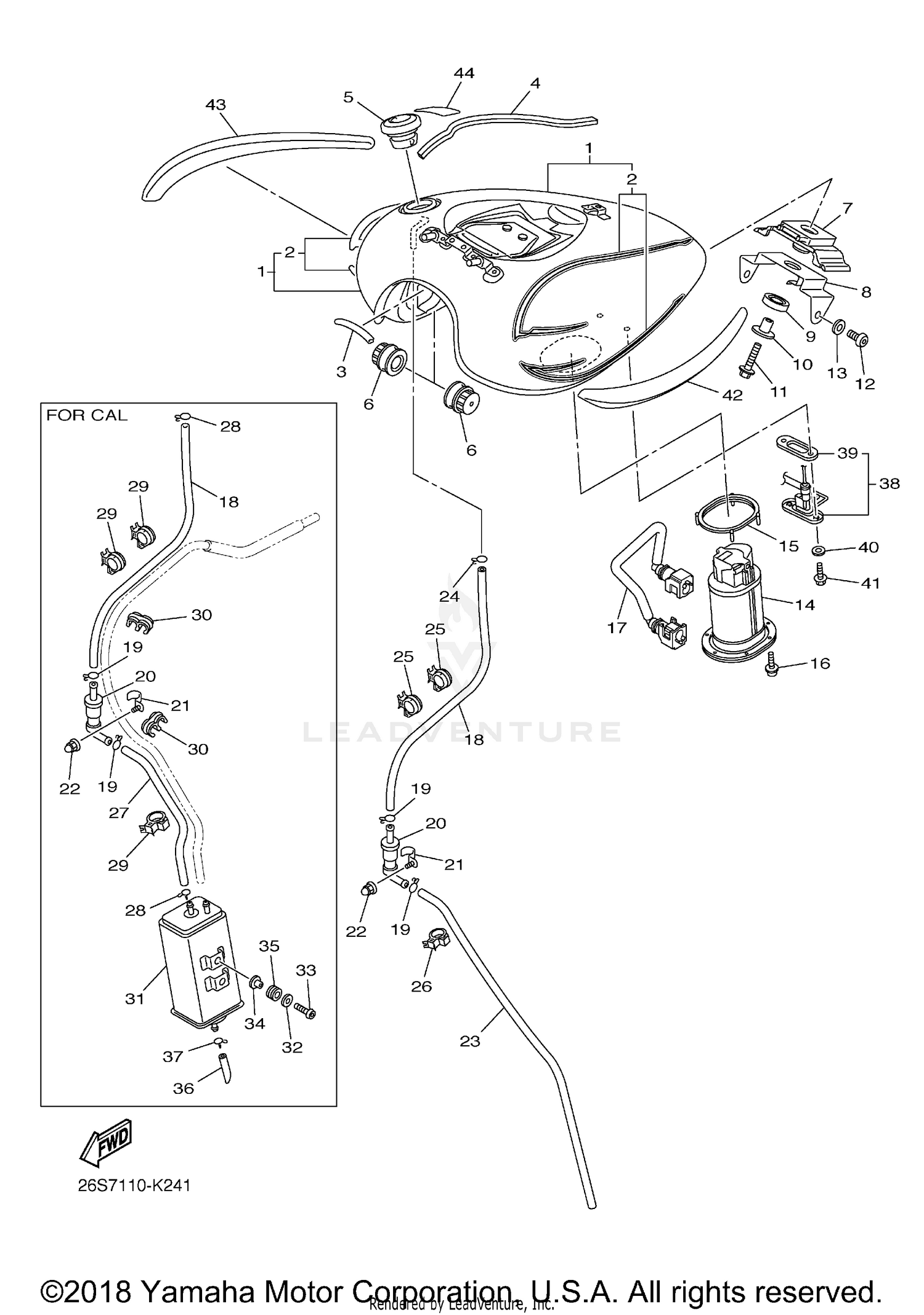

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
5S7-Y2410-00-08
|
$761.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
FUEL TANK COMP.
5S7-Y2410-00-X1
|
$761.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GRAPHIC SET
26S-24240-30-00
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GRAPHIC SET
26S-24240-20-00
|
$239.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
MOLD, FUEL TANK
4BP-24188-00-00
Superseded by 1HX-24188-01-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER, SIDE COVER
5S7-24145-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP ASSY
4NK-24602-12-00
Superseded by 4NK-24602-20-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER, LOCATING 1
5S7-24181-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER, LOCATING 2
5S7-24182-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, TANK FITTING
5S7-2413Y-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER, LOCATING 3
4TR-24183-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR
90387-06177-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95812-06030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, BUTTON HEAD
92012-08014-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-08M01-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
FUEL PUMP COMP.
5S7-13907-00-00
|
$807.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
5VN-24486-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEXAGON SOCKET HEAD
90110-05028-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIPE, FUEL 1
5S7-13971-00-00
Superseded by 5S7-13971-01-00
|
$59.99 | ||
|
Unavailable |
|||
|
#18
PIPE 3
5S7-24313-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP
90467-09103-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
ROLL OVER VALVE ASSY
5RB-24180-00-00
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP 2
5S7-24136-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, CROWN
90176-05004-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE
90445-115K4-00
Superseded by 90445-11036-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP
90467-09103-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Unavailable |
|||
|
#25
CLAMP
90464-20191-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP
90464-10190-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIPE 1
5S7-2486A-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP
90467-09103-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Unavailable |
|||
|
#29
CLAMP
90464-20191-00
|
$9.49 | ||
|
Unavailable |
|||
|
#30
CLAMP
90464-10M57-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#31
CANISTER ASSY
5PX-24170-00-00
|
$253.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
90201-06023-00
Superseded by 90201-06057-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT
90111-06067-00
Superseded by 90111-06046-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
COLLAR
90387-062L2-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
GROMMET
90480-13163-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIPE 14
3D8-24325-00-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLIP
90467-10041-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
SENDER UNIT ASSY, FU
5S7-85752-00-00
Superseded by 5S7-85752-11-00
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
GASKET, SENDER UNIT
4WM-85753-00-00
Superseded by 3D8-85753-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, PLATE
90202-05193-00
Superseded by 90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, FLANGE
95812-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#42
EMBLEM 3D SET
5S7-2416C-00-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
EMBLEM 3D SET
5S7-2417C-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
LABEL, CAUTION
5GK-2118K-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
