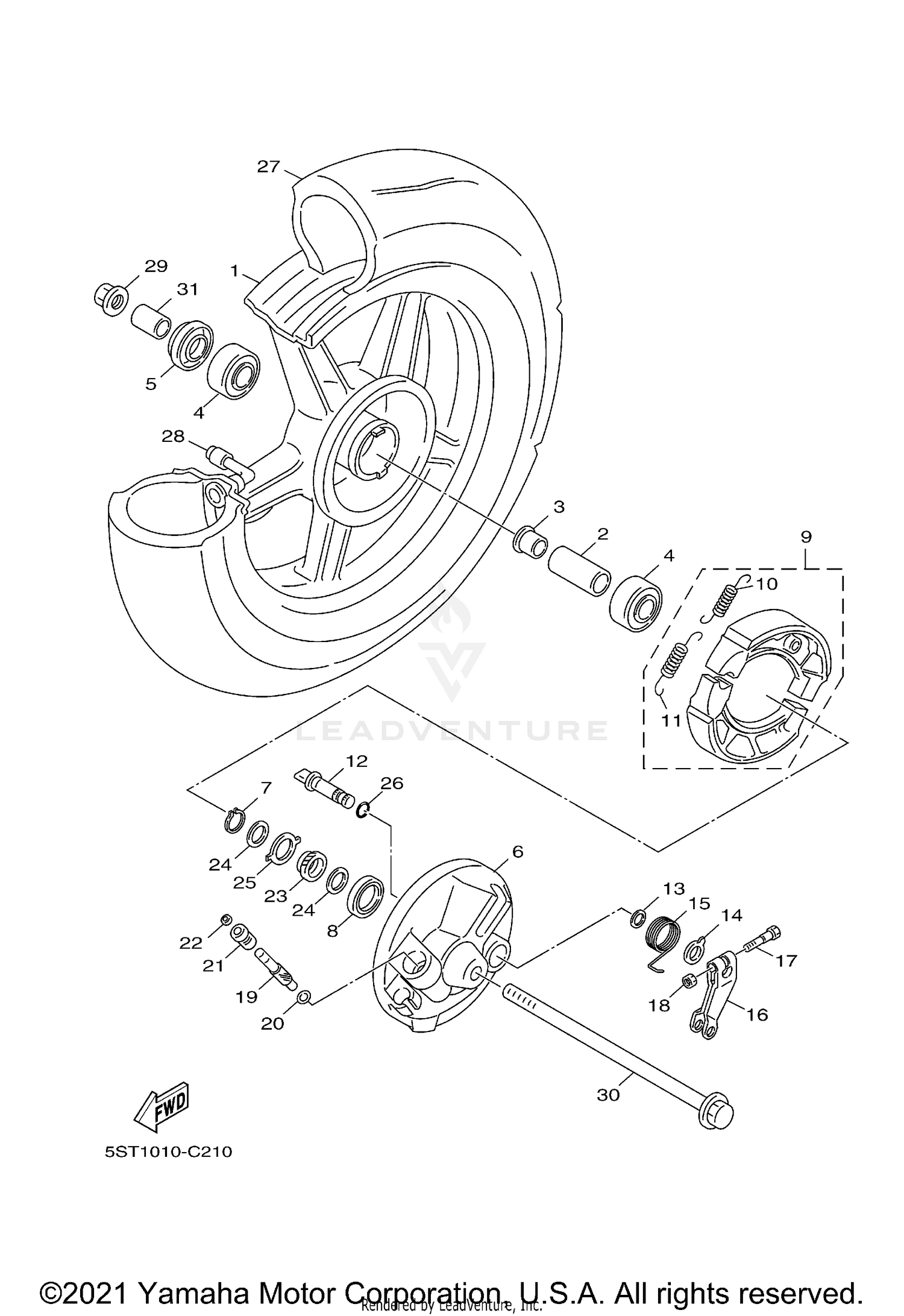

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAST WHEEL, FRONT
5ST-F5168-00-35
|
$140.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPACER
90560-10103-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLANGE, SPACER 1
20A-F5115-00-00
|
$0.52 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-300Y4-00
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93106-20808-00
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, BRAKE SHOE
5ST-F5121-00-35
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
99009-20400-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL
93102-44833-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRAKE SHOE KIT
5SW-WF53E-10-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, TENSION
90506-12001-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, TENSION
90506-15001-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAMSHAFT
5ST-F5151-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL SEAL
93109-14021-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, INDICATOR
5SU-F533A-01-00
|
$0.52 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, TORSION
90508-28800-00
|
$1.46 | ||
|
Available to order. Add to View Price |
|||
|
#16
LEVER, CAMSHAFT 1
5ST-F5155-00-00
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
90101-06819-00
|
$0.25 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
9530L-06600-00
Superseded by 95317-06600-00
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR, METER
5ST-F5138-00-00
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-07076-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BUSH
3N2-F5136-00-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#22
OIL SEAL
93104-07803-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#23
GEAR, DRIVE
5ST-F5135-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90201-20269-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLUTCH, METER
4X6-F5149-00-00
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
93210-14805-00
Superseded by 93210-14579-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
TIRE (90/90-10 41J C922)
94109-10807-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
VALVE, RIM TR413
93900-00802-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, SELF-LOCKING
90185-10801-00
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#30
AXLE, WHEEL
3XG-F5181-00-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR
90387-10806-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
