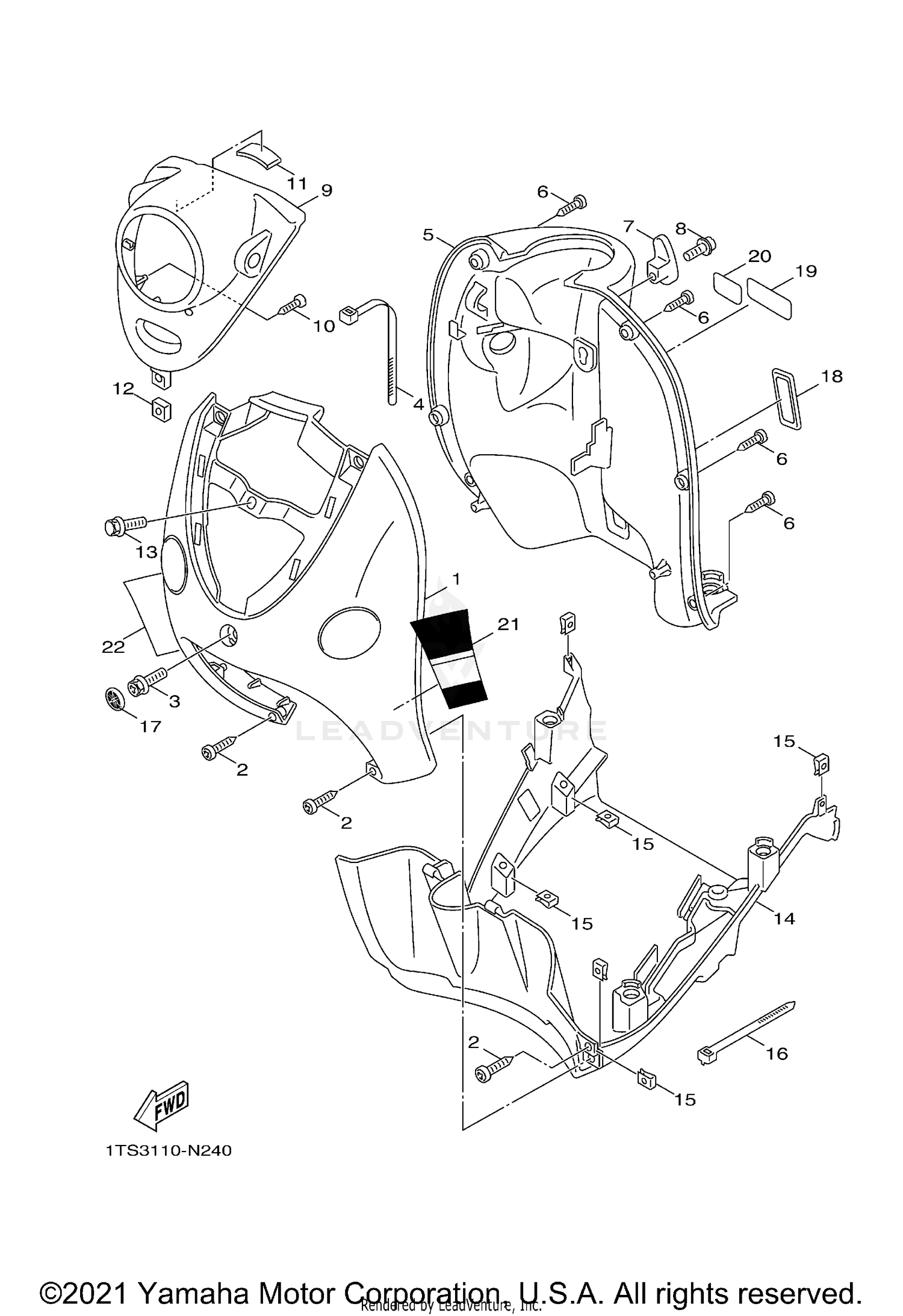

Leg Shield Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEG SHIELD 1
5ST-XF831-01-PS
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$2.14 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, WITH WASHER
90119-06096-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP
90464-25804-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
LEG SHIELD ASSY
1TS-F8300-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$2.14 | ||
|
Unavailable |
|||
|
#7
HOOK 1
5JS-F8257-80-00
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, WITH WASHER
90159-06822-00
Superseded by 90159-06067-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, HEADLIGHT
3D1-H4144-02-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
TAPPING SCREW
90169-05001-00
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER
3D1-F8371-01-00
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT 1
2GF-F1535-00-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, WITH WASHER
90159-06016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, UNDER
5ST-F8385-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, SPRING
90183-05807-00
Superseded by 90183-05042-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP
90464-15840-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP
5ST-F8349-01-00
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP
5FM-F8349-80-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#19
LABEL, CAUTION
1CD-F118K-00-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#20
LABEL, CAUTION
1CD-F4877-00-00
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#21
GRAPHIC, 15
13P-F832B-10-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GRAPHIC, 16
13P-F832C-10-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
