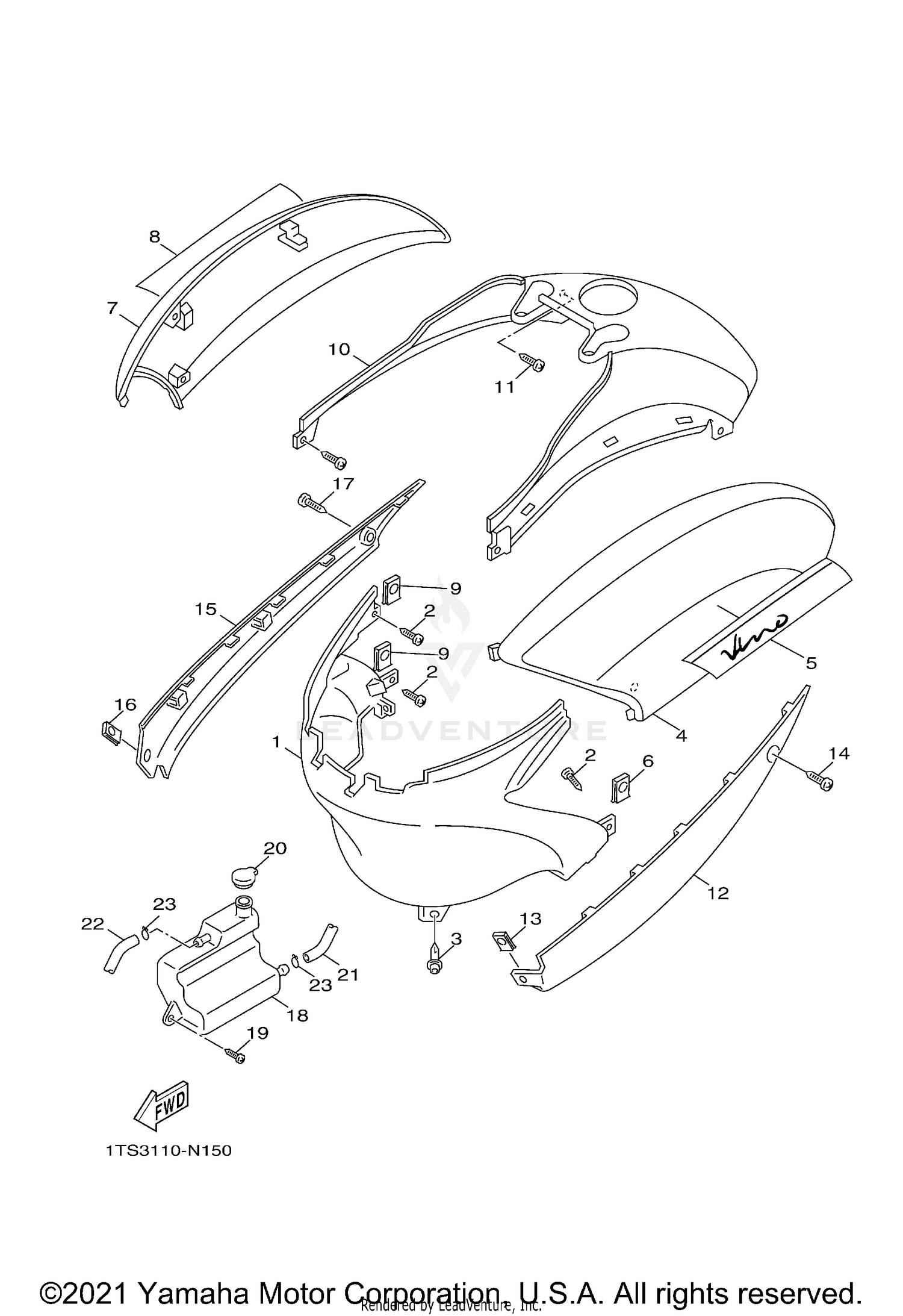

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
13P-F1711-20-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$2.14 | ||
|
Available to order. Add to View Price |
|||
|
#3
RIVET
90269-07802-00
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, SIDE 2
13P-F1721-00-P6
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
EMBLEM 1
1TS-F1781-10-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, SPRING
90183-05807-00
Superseded by 90183-05042-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, SIDE 3
13P-F1731-00-P6
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
EMBLEM 2
1TS-F1782-10-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, SPRING
90183-05807-00
Superseded by 90183-05042-00
|
$5.49 | ||
|
Unavailable |
|||
|
#10
COVER, SIDE 4
5ST-F1741-41-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$2.14 | ||
|
Unavailable |
|||
|
#12
MOLE, FOOTREST
5ST-F7482-00-PV
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, SPRING
90183-05807-00
Superseded by 90183-05042-00
|
$5.49 | ||
|
Unavailable |
|||
|
#14
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$2.14 | ||
|
Unavailable |
|||
|
#15
MOLE, FOOTREST 2
5ST-F7492-00-PV
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, SPRING
90183-05807-00
Superseded by 90183-05042-00
|
$5.49 | ||
|
Unavailable |
|||
|
#17
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$2.14 | ||
|
Unavailable |
|||
|
#18
TANK, RECOVERY
5ST-F1871-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$2.14 | ||
|
Unavailable |
|||
|
#20
CAP
5CA-F1815-00-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE
90445-09821-00
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIPE, OVERFLOW
5ST-F1877-00-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
