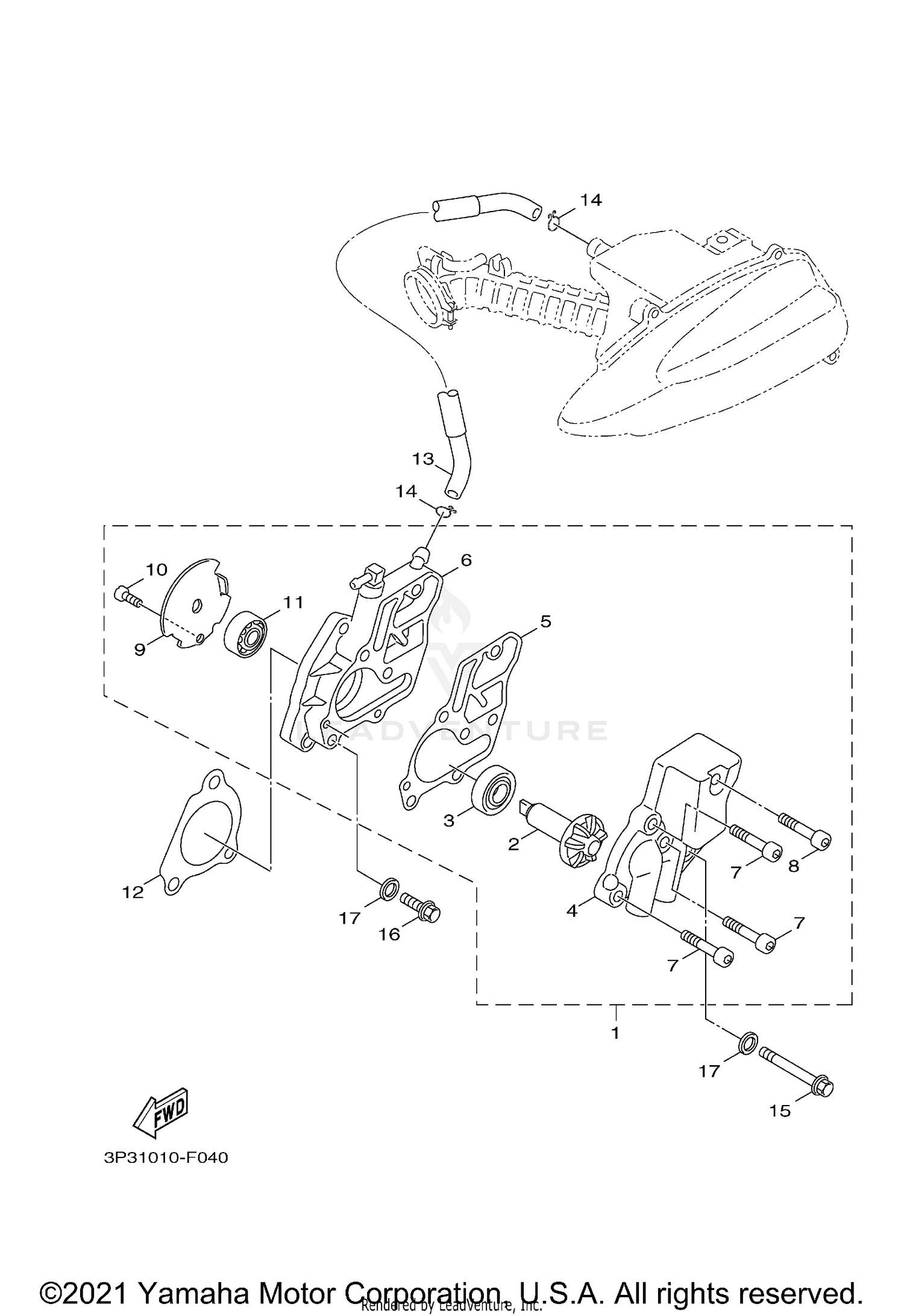

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WATER PUMP ASSY
5ST-E2420-12-00
|
$205.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
IMPELLER SHAFT ASSY
5ST-E2450-01-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL
93103-10168-00
Superseded by 93103-10011-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, HOUSING
5ST-E2422-10-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, HOUSING COVER 2
5ST-E2428-01-00
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, CYL. HEAD S
5ST-E1185-12-00
Superseded by 5ST-WE115-12-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEX. SOCKET HEAD
91317-06020-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, HEX. SOCKET HEAD
91317-06035-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE
10B-E1951-00-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95027-06012-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93306-000Y1-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
5ST-E2435-10-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIPE, BREATHER 1
13P-E1166-00-00
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP
90467-11800-00
|
$0.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95027-06035-00
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-06897-00
Superseded by 90105-068B8-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET
90430-06166-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
