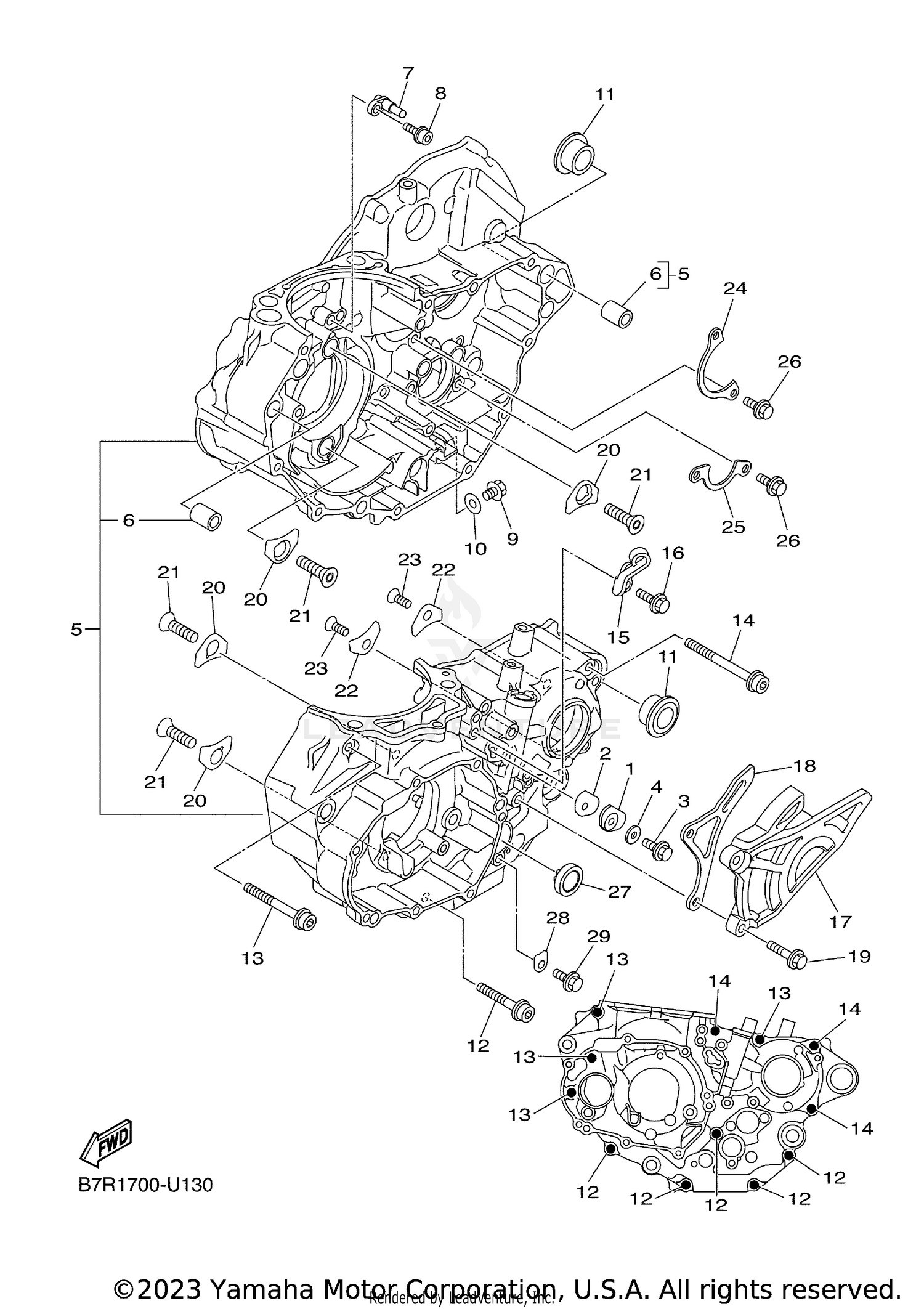

2020 Yamaha WR 450F CRANKCASE OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PLATE
BR9-13371-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET
1SL-13475-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
90105-06203-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
90430-06166-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
CRANKCASE ASSY
BR9-15100-09-00
Superseded by BR9-15100-19-00
|
$1,250.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, DOWEL A
99530-14016-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
NOZZLE 3
BR9-15155-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
90110-06182-00
Superseded by 91317-06012-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
95022-10016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET
90430-10188-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-17018-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
90110-06391-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
90110-06363-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEXAGON SOCKET HEAD
90110-06392-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER, CLUTCH CABLE
BR9-15441-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-06099-00
Superseded by 90105-06100-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, CRANKCASE 2
1SL-15421-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GUIDE, CHAIN
1SL-17466-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
90105-06189-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE, BEARING COVER
18P-15383-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, COUNTERSUNK
90151-08007-00
Superseded by 90151-08008-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE, BEARING COVER
4JT-15381-01-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW
90151-06053-00
Superseded by 90151-06052-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE, BEARING COVER
BR9-15388-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE, STOPPER 2
1SL-18562-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT
90110-06182-00
Superseded by 91317-06012-00
|
$6.99 | ||
|
Unavailable |
|||
|
#27
GAUGE, LEVEL
3Y1-15361-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOLDER
5XC-15118-00-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE
95022-06010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
