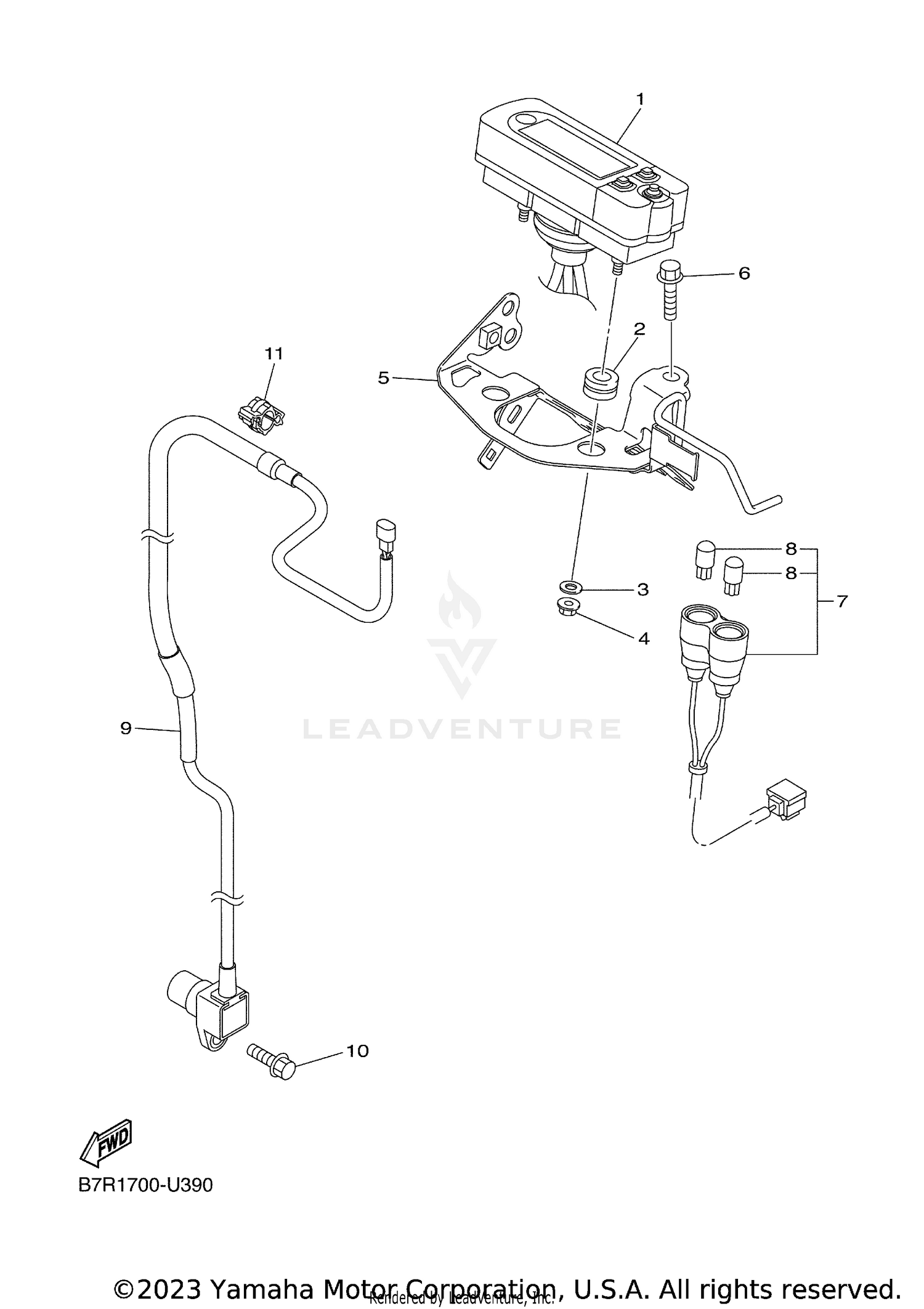

Meter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
METER ASSY
B7R-83500-20-00
|
$524.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GROMMET
90480-14012-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-05021-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, WITH WASHER
95702-05500-00
|
$0.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, METER
B7R-83519-01-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
90105-06170-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
PILOT LIGHT ASSY
2GB-83530-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BULB (12V-1.7W)
5GH-83516-00-00
Superseded by 3FV-83517-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SENSOR, SPEED
B7R-83755-00-00
|
$269.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95022-06014-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP
90464-12013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
