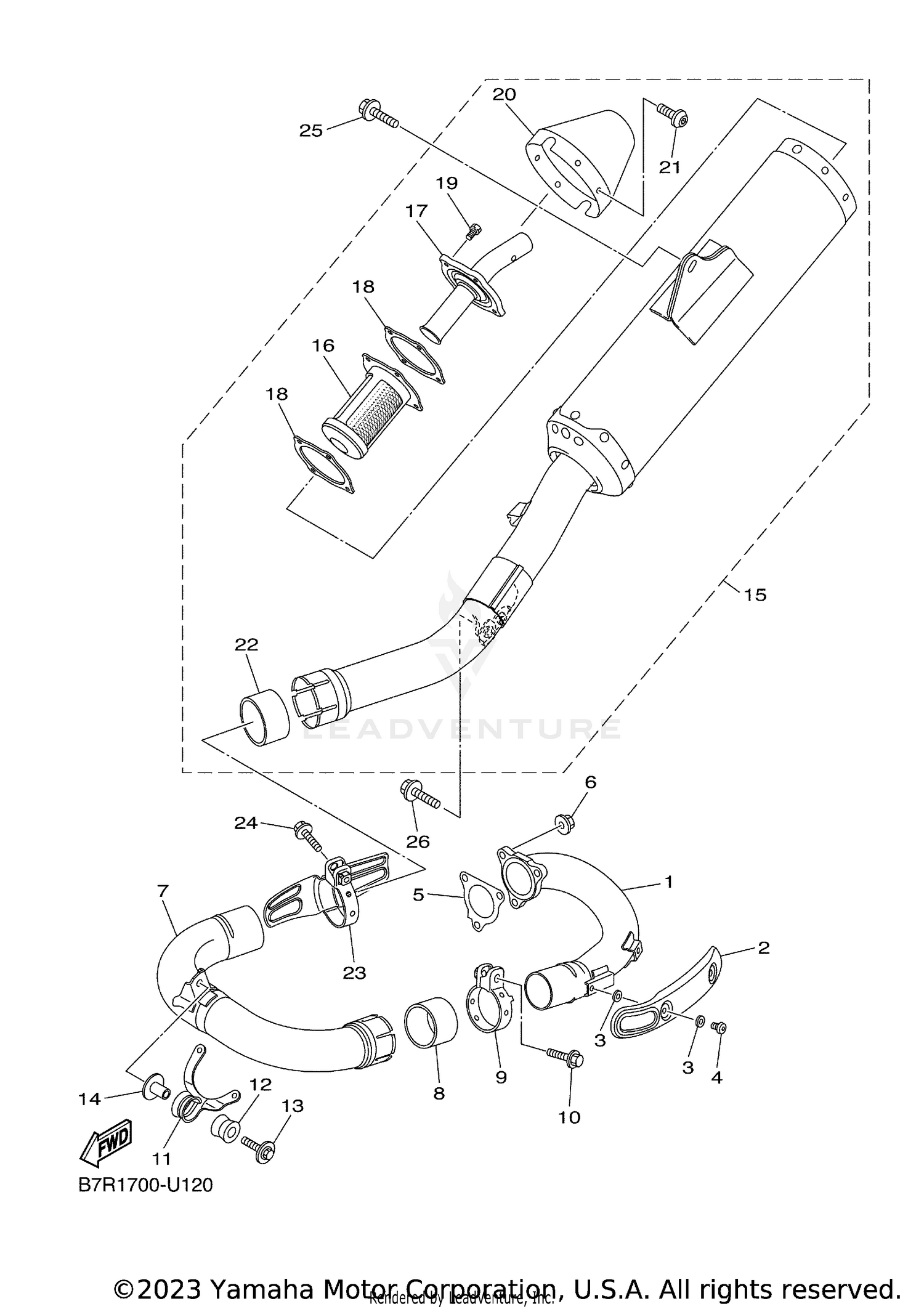

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST 1
BR9-14611-00-00
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PROTECTOR, EXHAUST PIPE
1SL-14628-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-05017-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, BIND
98980-06008-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, EXHAUST PIPE
33D-14613-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, FLANGE
95704-06500-00
Superseded by 95780-06500-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE, EXHAUST 2
BR9-14621-00-00
|
$223.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, SILENCER
5PX-14755-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND, SILENCER
1SM-14788-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (SMALL HEAD)
95024-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
STAY, EXHAUST PIPE 1
BR9-14639-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER, MUFFLER
5VY-14747-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, WITH WASHER
90119-08174-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-08081-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
MUFFLER COMP.
B7R-14701-00-00
|
$669.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPARK ARRESTER ASSY
5TJ-14780-00-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIPE, TAIL
5TJ-14784-00-00
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET, EXHAUST PIPE
5TJ-14623-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEXAGON SOCKET HEAD
90110-05041-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAP
5TJ-14799-00-00
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, BUTTON HEAD
92012-05008-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET, MUFFLER
1SL-14714-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BAND, MUFFLER
BR9-14715-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (SMALL HEAD)
95024-08040-00
|
$7.49 | ||
|
Unavailable |
|||
|
#25
BOLT, WITH WASHER
90119-08170-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, WITH WASHER
90119-08178-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
